Chapter 3: BIOS Setup

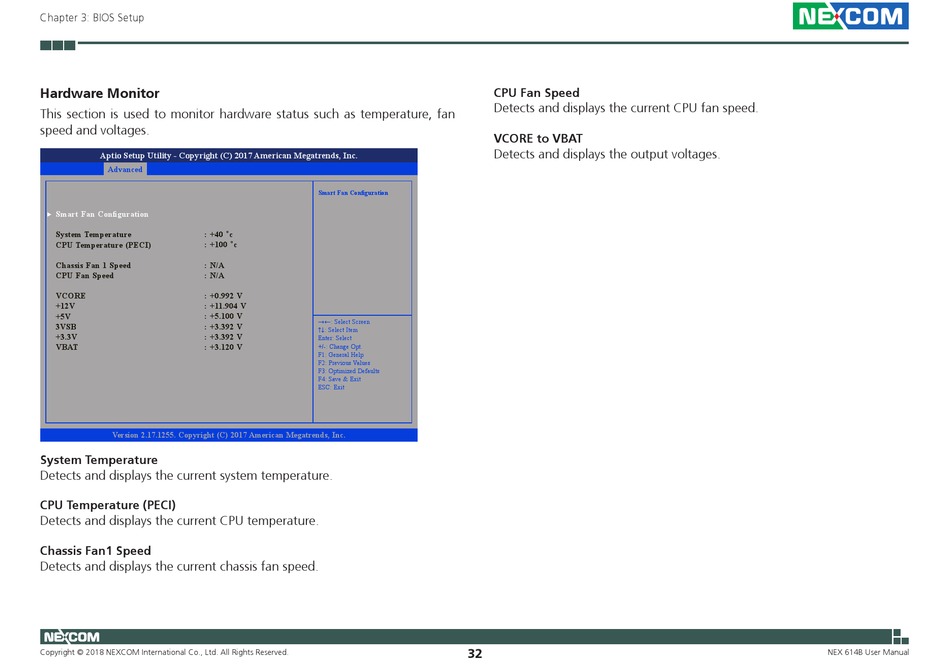

Hardware Monitor
This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
Smart Fan Configuration

System Temperature : +40 °c
CPU Temperature (PECI) : +100 °c
Chassis Fan 1 Speed : N/A
CPU Fan Speed : N/A
VCORE : +0.992 V
+12V : +11.904 V
+5V : +5.100 V
3VSB : +3.392 V
+3.3V : +3.392 V
VBAT : +3.120 V
Version 2.17.1255. Copyright (C) 2017 American Megatrends, Inc.
System Temperature
Detects and displays the current system temperature.
CPU Temperature (PECI)
Detects and displays the current CPU temperature.
Chassis Fan1 Speed
Detects and displays the current chassis fan speed.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
CPU Fan Speed
Detects and displays the current CPU fan speed.
VCORE to VBAT
Detects and displays the output voltages.
Smart Fan Configuration
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
32
