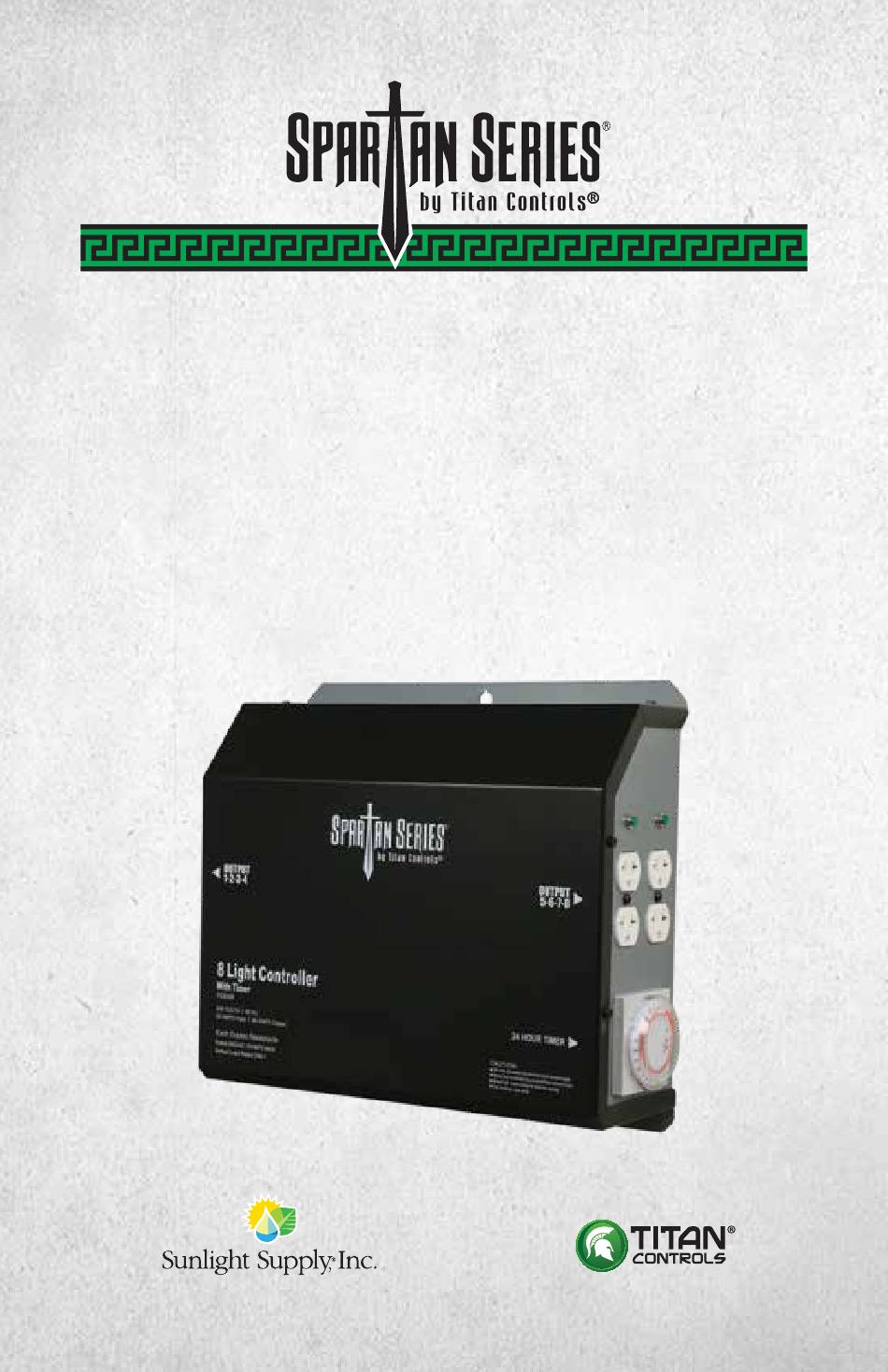

- Page 1 8 Light Controller With Light Timer 240 Volts Product #703008 Instruction Manual www.titancontrols.net INNOVATING SINCE 1995...
- Page 2 8 Light Controller – With Light Timer Overview The Spartan 8 Light Controller is designed to operate a lighting system. The controller is built with a heavy duty relay and powder coated steel enclosure to control your ballasts. The controller should be installed by a certified electrical professional.
- Page 3 • A UL listed 50 Amp circuit breaker must be installed in this application. • Remove front panel of controller • Connect your incoming 240 volt power to the terminal block of the 8 Light Controller. • Attach the ground wire to the “Grounding Lug” of the 8 Light Controller.
- Page 4 • RoHS compliant = Yes Troubleshooting Tips If the 8 Light Controller is not performing as expected, try the following: a. Contact a certified Electrician to service your 8 Light Controller. b. Confirm that your power input is active from your power panel and providing 240 volts/60Hz/50 Amps Input to the controller.
- Page 6 • This warranty shall apply only to the United States, including Alaska, Hawaii and territories of the United States and Canada. • Defective controllers need to be returned with the “proof of purchase” receipt. • For additional warranty information, contact your Dealer, or a Titan Controls Technical ®...
- Page 7 Once we receive the unit back, we will repair the controller within 48 hours (business) and return it to you freight prepaid via UPS ground shipment. Include the following if returning directly to Titan Controls ® • Proof of purchase • This completed form • RMA # on the outside of the box...
- Page 8 INNOVATING SINCE 1995 www.titancontrols.net 03152018ST Revision A © 2018 Sunlight Supply , Inc. Vancouver, WA 98660 ®...
