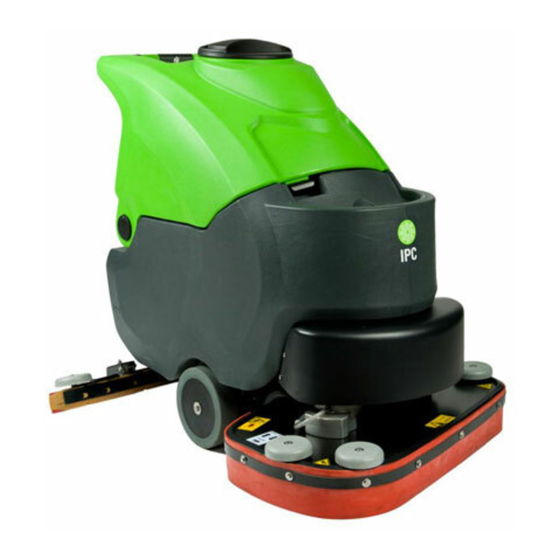

IPC Gansow CT70 ECS Quick Manual

This Guide is intended for quick consultation only and does not replace the Use and Maintenance Manual.
Before using the machine, read the Use and Maintenance Manual contained in the machine packaging thoroughly and rigorously respect all the
instructions.
PREPARATION/
OPERATION
1. Fill the detergent tank.
2. Release the emergency
button to turn the machine on.
3. Lower the squeegee using
the lever.
4. Press the brush button. The
machine automatically lowers
and attaches the brushes and
starts the suction motor.
5. Hold the brush button down for
3 seconds to choose the type of
operation, "MICRO SCRUB" or
with traditional brush.
CT70 ECS/CT40 BT60 ECS quick guide
6. Press the suction motor
button to disable suction if
you want to prewash the
surface.
7. Choose the direction of
movement by moving the
direction selector, turn the
potentiometer to set the
work speed.
8. Operate the drive lever.
9. Press the "H2O" button for
at least 2 seconds to
enable detergent flow.
Press the button repeatedly
to vary the quantity
delivered.
10. Adjust head pressure on
the surface to be cleaned
by pressing the button
repeatedly to vary the
pressure. The pressure
exerted is indicated by an
LED display on the control
panel.
11. Begin working.
12. When you have finished
cleaning, proceed as
follows:
• Turn the brush motor
off.
• Stop the detergent flow
• Turn the suction motor
off.
• Press the emergency
button.
• Raise the squeegee.
• If necessary, charge the
batteries.
DAILY
MAINTENANCE
Empty the dirty water drum
through the drain hose.
Clean the dirty water
drum.
Check the suction filter is
undamaged and clean.
PLDC01911
