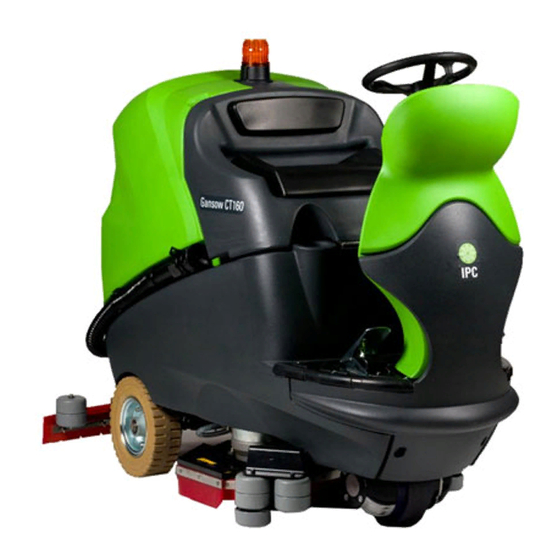

IPC Gansow CT160 Quick Manual

This Guide is intended for quick consultation only and does not replace the Use and Maintenance Manual.
Before using the machine, read the Use and Maintenance Manual contained in the machine packaging thoroughly and rigorously respect all the
instructions.
PREPARATION/
OPERATION
1. Fill the detergent tank.
2. Raise the side flaps and
insert the brushes under
the head, making sure they
rest against the aligners.
3. Turn the ignition key to
switch the machine on.
4. To attach the brushes
automatically, proceed as
follows:
Press the "Click-Off-On"
button. The machine first
performs a release
operation, then immediately
afterwards enables the
attachment operation.
Press the "Click-Off-On"
button again to
automatically attach the
brushes.
CT160 Quick Guide
5. Select the most suitable
cleaning programme
according to the surface
and dirt to be removed:
P1: light cleaning
programme
P2: medium cleaning
programme
P3: heavy cleaning
programme.
After the cleaning
programme has been
selected, the machine
chooses the advance
speed and quantity of
detergent, then turns the
suction and brush motors
on.
6. The machine can be
operated without using the
3 cleaning programmes
provided by the
manufacturer. In this case,
the brush and suction
motors must be turned on
and the quantity of
detergent regulated
manually by pressing the
buttons shown.
7. Choose the direction of
movement by moving the
direction selector.
Select maximum speed by
turning the potentiometer.
8. Operate the machine
movement pedal.
9. If necessary, release the
service or parking brake.
10. Begin working.
11. When you have finished
cleaning, proceed as
follows:
• Turn the brush/suction
motor off.
• Turn the ignition key.
• If necessary, charge the
batteries.
PLDC01851
