BRONKHORST EL-PRESS Quick Installation Manual

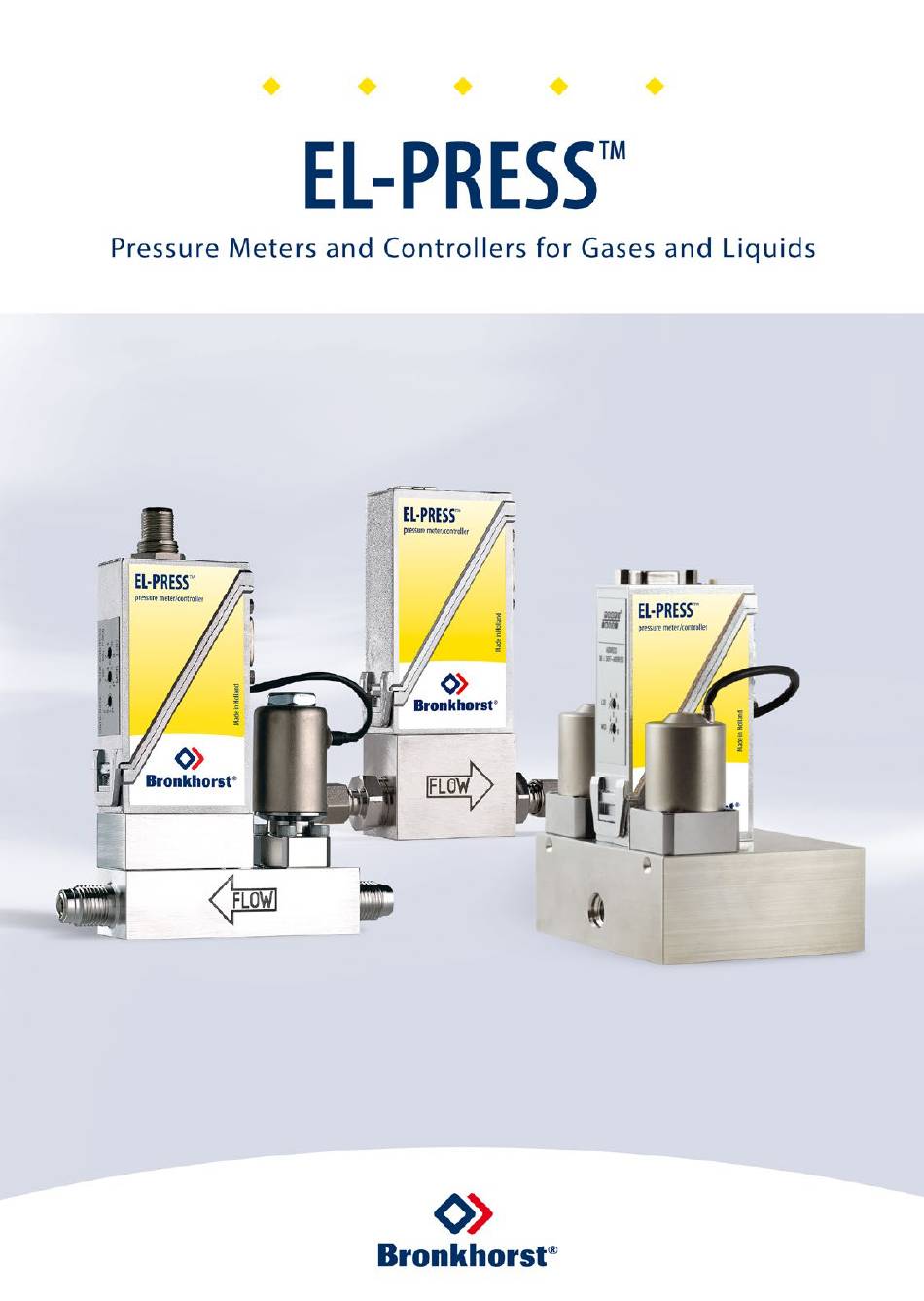

Pressure meters and controllers for gases and liquids

Hide thumbs Also See for EL-PRESS:

Download this manual

Quick Installation Guide

Doc. no.: 9.17.100B Date: 28-08-2018

Starting up the EL-PRESS in 9 steps

Page 1 Quick Installation Guide Doc. no.: 9.17.100B Date: 28-08-2018 Starting up the EL-PRESS in 9 steps...
Page 2 0… 100 mbar and 0…400 bar. EL-PRESS instruments are equipped with a digital printed circuit board, featuring diagnostics and counter functions, digital communication (RS232) and a PID controller. Thanks to the 'multibus' concept, instruments can be equipped with an onboard fieldbus interface as an option.
Page 3  Tighten the fluidic connections according to the instructions of the supplier of the fittings. The use of Swagelok RS-type stainless steel adapters and Bronkhorst® elastomer O-rings is recommended.  Avoid installation in close proximity of mechanic vibration and/or heat sources.
Page 4 This principle also applies to digital operation. b. Digital RS232 operation Connecting the instrument with an RS232 cable to a Windows computer enables the use of the free Bronkhorst® software for Windows, such as FlowDDE and FlowPlot.
