GV-Data Capture V2
The parameter button: Click this button to configure the following
parameters or keep default settings.
Baud Rate: Select the baud rate corresponding to that of the POS system.
Data Bits: Select the data bit corresponding to that of the printer.
Parity: Select None for the serial POS system.
Stop Bits: Select the stop bit corresponding to that of the printer.
Cash Drawer Open Signal: This option is only available when an input
module is configured in the main system. Assign the input module
connected to the cash drawer. Every time when the cash drawer is open,
it will be recorded in System Log for later retrieval.
Trace Mode: Check this option only after getting the recommendation
from our technical support staff.
4. After above settings, click Add to add the POS system to the GV-System.
6

Cash Register Connection

In this manual, cash registers refer to those with receipt printers internally
connected. Cash registers may not be integrated to GV-Systems, unless
with the following characteristics. Please check these characteristics
before actually connecting your cash register to the GV-System.
Check if your cash register has an output port for a printer.
Connect a receipt printer to the output port and see if it functions well.
If it does, the integration is then possible.
Note: If display errors happen when connecting the receipt printer to the cash
register (e.g. drop caps, character display errors), the same problems would remain
when the GV-System overlays data on video footage.
As POS systems, cash registers also have two types of interfaces: DB9
and DB25. Following will introduce the two interface connections.

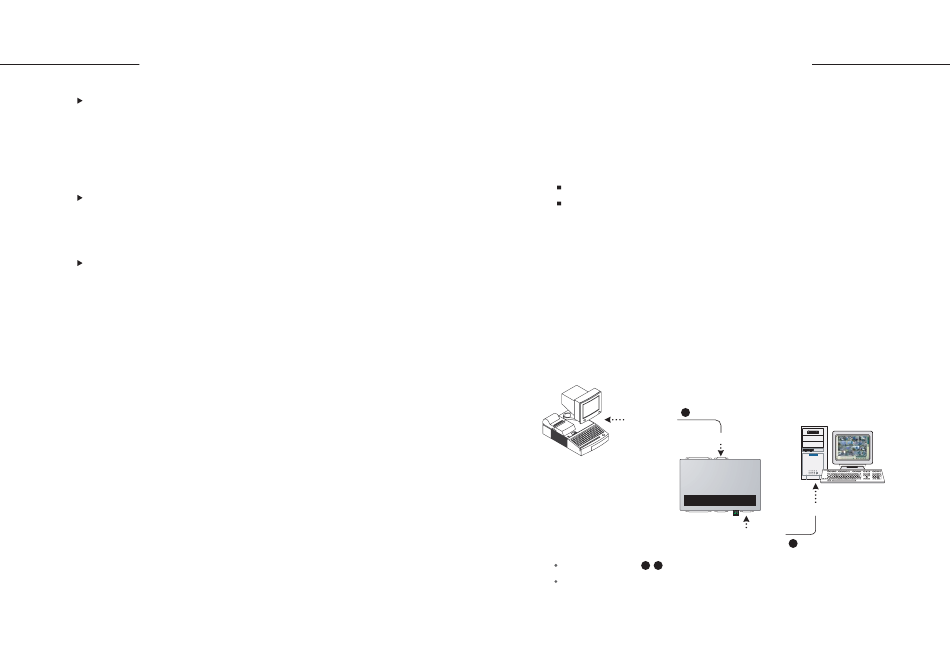

DB9 Interface

Depending on the cash register interface, find out the DB9 Female or DB9
Male connector on the GV-Data Capture for connection.
1
DB9 RS-232
Female / Male
DB9 Male / Female
Cash Register
GeoVision GV-DATA CAPTURE V2
The RS-232 cables are supplied with the GV-Data Capture box.
1 2
The physical distance between the POS system and GV-System should be
less than 10 meters (32 ft).
GV-Data Capture V2
GV-System
DB9 Female
DB9 Male
2
RS-232
