GV-Data Capture V2

DB25 Interface

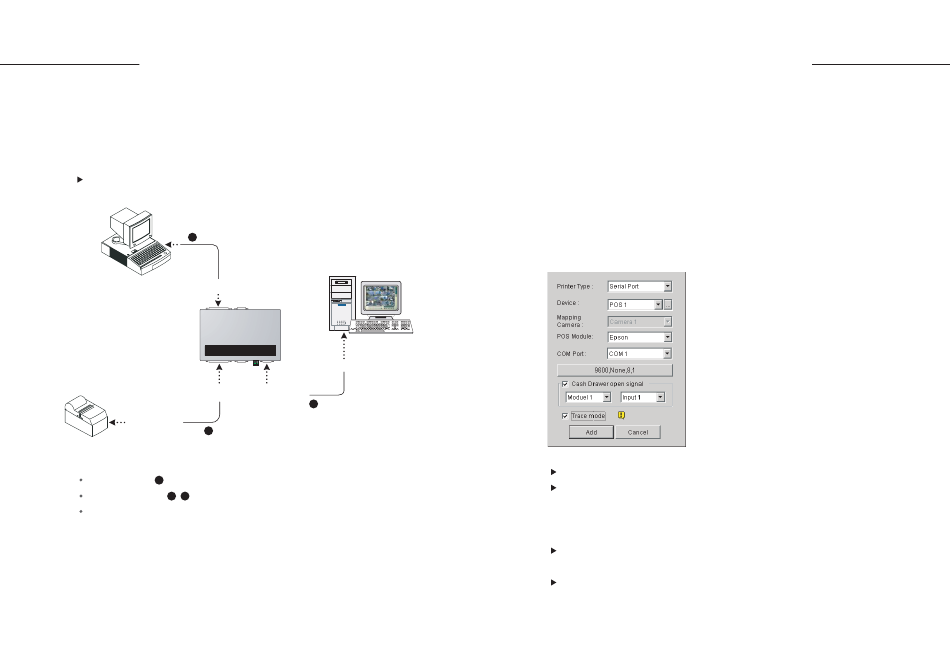

For the diagram below, we use a POS system using an RJ45-DB25 cable
for example. Depending on the POS system interface, find out the DB25
Female or DB25 Male connector on the GV-Data Capture for connection.
POS system using an RJ45-DB25 cable
1
RJ-45
DB25 Female / Male
POS System
GeoVision GV-DATA CAPTURE V2
DB25 Male / Female
DB25
Female / Male
3
Printer
The RJ-45 cable is supplied with the POS system.
1
The RS-232 cables are supplied with the GV-Data Capture box.
2 3
The physical distance between the POS system and GV-System should be less
than 10 meters (32 ft).
4
GV-System
DB9 Female
DB9 Male
2
RS-232
RS-232

System Configuration

You must configure the GV-System before it will be overlaying transaction
data on video footage.
1. Run the GV-System.
2. Click the Configure button, point to POS Application Setting, and select
POS Device Setup. This displays the POS Server Setup dialog box.
3. Click the New button to display the COM setting dialog box as shown below.
Printer Type: Select Serial Port for this application.
Device: Assign the POS system to a camera channel. POS 1 displays
images and data on the Camera 1 channel; POS 2 on the Camera 2
channel, and so on. Click the button [...] next to the item to rename the
device.
POS Module: Select the printer connected to the POS system. If it's not
Epson, select General for other brands.
COM Port: Select the COM port connected to the POS system.
GV-Data Capture V2
5
