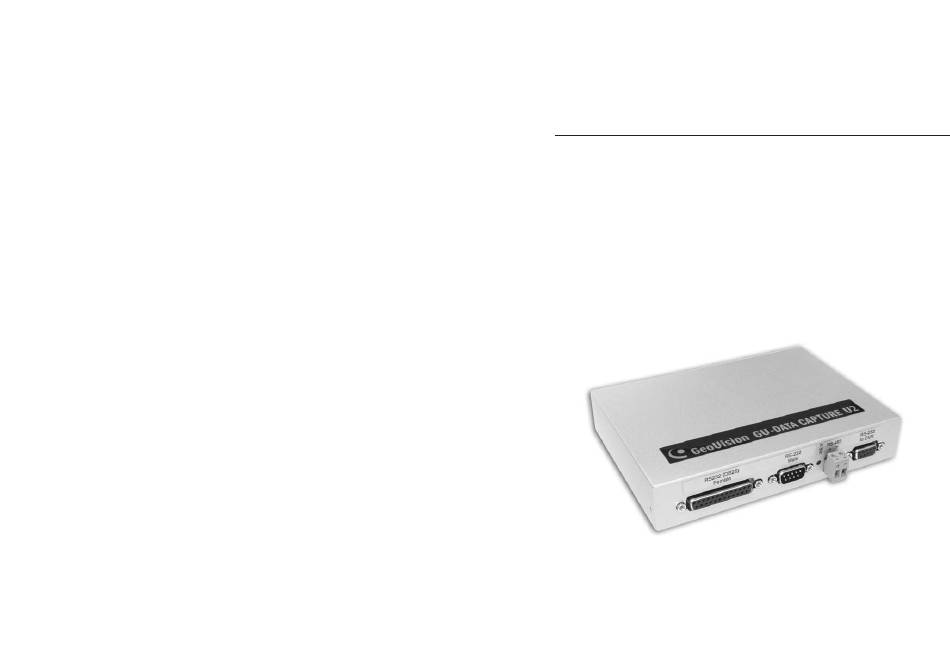

- Page 1 GV-Data Capture V2 User's Manual Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. 2005/06...
-
Page 2: Table Of Contents
Display errors in transaction data Transaction events did not stop properly IMPORTANT: The GV-Data Capture V2 is exclusively designed to support serial Connecting more than 2 POS systems/cash registers POS systems. For graphic mode or parallel POS systems, please refer to other... -
Page 3: Gv-Data Capture Overview
DB9 Male / Female On: DB9 Mode (Default) Off: DB25 Mode POS System On: Crossover Off: Non-crossover (Default) GeoVision GV-DATA CAPTURE V2 GV-System DB9 Female Note: DB9 Female / Male DB9 Male Depending on your POS system/cash register output interface, find out RS-232... -
Page 4: Db25 Interface
POS Device Setup. This displays the POS Server Setup dialog box. RJ-45 3. Click the New button to display the COM setting dialog box as shown below. DB25 Female / Male POS System GV-System GeoVision GV-DATA CAPTURE V2 DB9 Female DB25 Male / Female DB9 Male RS-232 DB25... -
Page 5: Cash Register Connection
Male connector on the GV-Data Capture for connection. RS-232 Female / Male DB9 Male / Female Cash Register GV-System GeoVision GV-DATA CAPTURE V2 DB9 Female DB9 Male RS-232 The RS-232 cables are supplied with the GV-Data Capture box. The physical distance between the POS system and GV-System should be... -
Page 6: Db25 Interface
RS-232 DB25 Female / Male Using GV-NET series in the connection DB25 Male / Female Cash Register RS232 GV-System GeoVision GV-DATA CAPTURE V2 RS485 GV-NET box or RS232 DB9 Female GV-NET card or GV-Data Capture GV-NET I/O card GV-System POS system... -
Page 7: Troubleshooting
GV-Data Capture V2 GV-Data Capture V2 Troubleshooting 2. Execute the program to display the following TranStopEdit window. Display errors in transaction data Display errors may include garbage text, drop caps, and malfunction in printing. If the printer used by your POS system/cash register is not supported by Epson, select General in the POS Module field. -
Page 8: Connecting More Than 2 Pos Systems/Cash Registers
GV-Data Capture V2 GV-Data Capture V2 Run POS Server Setup. (Look under GV-System/Configure/POS Connecting more than 2 POS systems/cash registers Application Setting/POS Device Setup) Normally, one PC comes with 2 COM ports so that only 2 POS systems/cash registers may be supported without COM port extension. Now the extension Click the New button in the POS Server Setup window. - Page 9 GV-Data Capture V2 GV-Data Capture V2 Specifications 3. Select Epson in the POS Module field. Connector Rear DB9 Female RS-232 DB25 Male RS-232 Connector Front DB9 Male RS-232 DB25 Female RS-232 DB9 Female RS-232 to DVR RS-485+ Connect to GV-NET / GV-Hub RS-485+...
