6 Appendix A: Quick Start Guide

6.1 Introduction
Promira™ Serial Platform with Advanced Cable Tester application is used to test next
generation USB Type-C™ cables. This article will get you up and testing USB Type-C
cables using a USB connection, the Promira Utility, and a web browser.
6.2 Setting up the Promira™ Serial Platform with Advanced
Cable Tester application

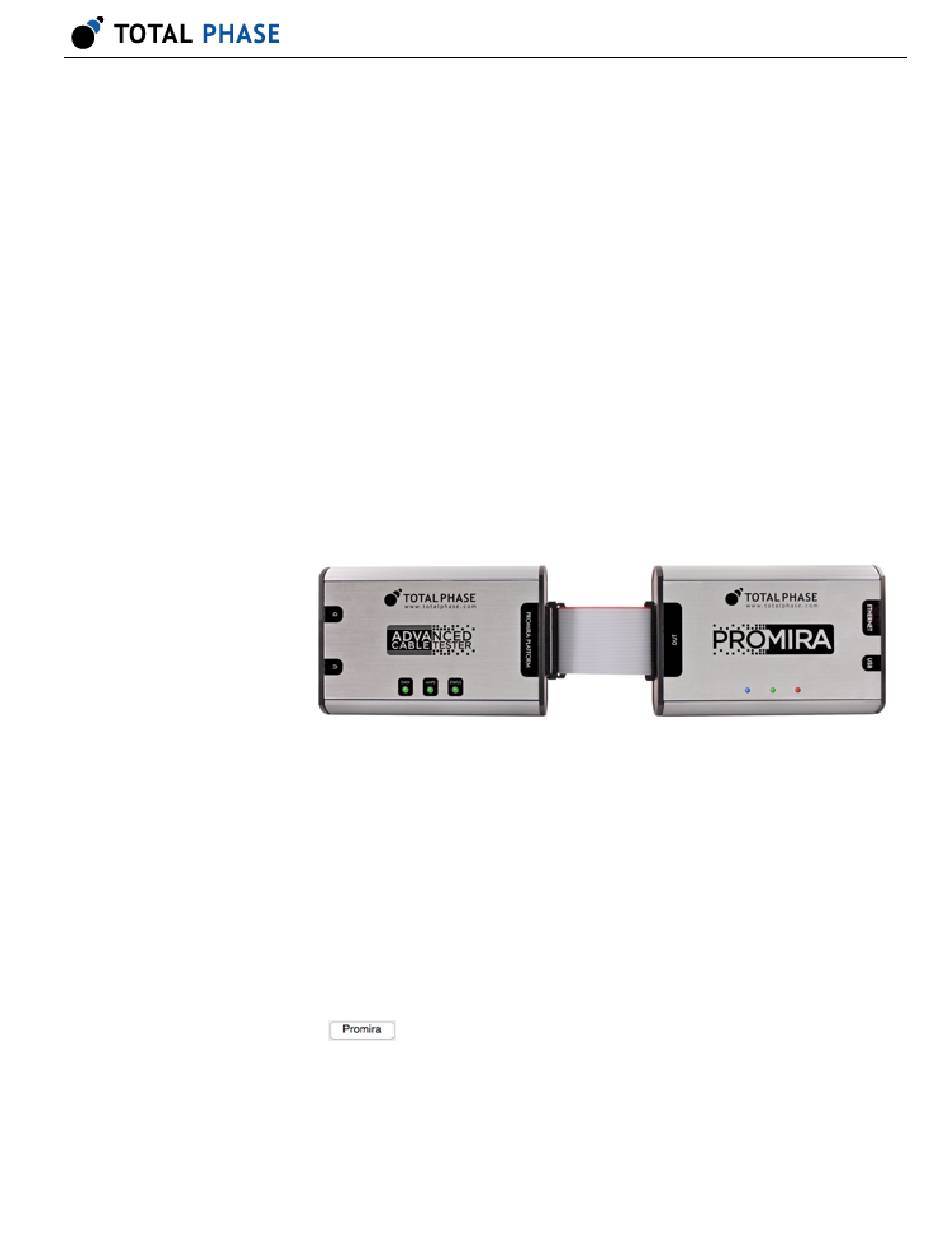

1. Connect the Advanced Cable Tester Hardware to the Promira platform, using the
34-Pin: 34-Pin Header Cable 40mm as shown below.
2. Connect the Promira platform to your PC using a USB Standard-A to Micro-B
cable.
3. Follow the instructions in Section 5.2 – Connectivity of the Promira platform
system user manual to configure Ethernet over USB interface.
4. Download and unzip the latest version of Promira Utility for your OS. (?)
5. Start the Promira Utility and use it to connect to your Promira by clicking the
Promira button in the upper-left corner of the utility window.
a. Click the
b. Find your Promira device in the list.
