If the results storage is full, then the oldest result set is automatically cleared to
make room for the new test result set.

4.1 Main User Interface

The main user interface displays two general sections: The Control section to configure
the Advanced Cable Tester, control the active test profile, and initiate testing. The
Results section which displays an overview of any available test reports, in addition to
allowing you to manage the individual reports.
The Control section elements are:
*Stack* (Menu): This drop-down menu provides quick access to the various
management features of the Advanced Cable Tester Application: Profile
management, User Management, Device Information, Test Log, and Logout.
Which features are available will depend on the user's role.
Profile: The Profile menu provides a list of all cable profiles available on the
Advanced Cable Tester. When the page is first loaded, the default profile is
automatically selected.
Advanced Cable Tester User Manual v1.13.001

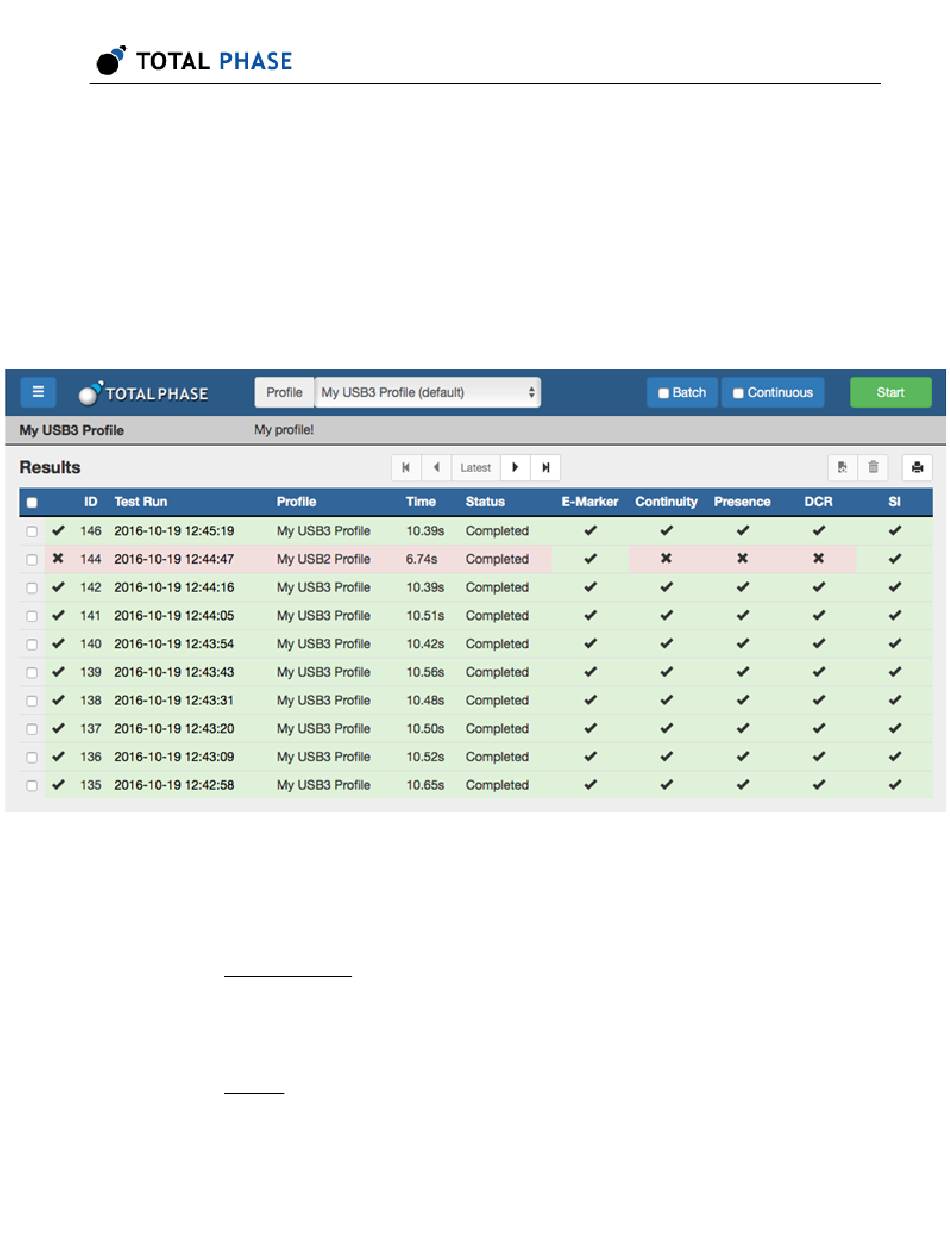

Figure 3 : Main User Interface
