E-Z-GO 2Five Electric Service Manual page 154

WEATHER PROTECTION
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notices, Cautions, Warnings and Dangers.
B
Installation
1. Clean the bottom edge of the canopy top (6) and
attach the weather seal along both sides and the front
of the canopy top.
2. Position the canopy top (6) with the weather seal
attached on the OPS frame.
3. Install four hex head bolts (3) each with a bonded seal
washer (4) down through the canopy top, place two
more bonded seal washers (4) on the bolt before plac-
ing the bolt though the mounting holes in the OPS
frame. Loosely install a nut (5) on each bolt.
4. Install three hex head bolts (3) each with a bonded
seal washer (4) down through the canopy top (6) and
the mounting holes in the OPS frame along each side
of the canopy top. Loosely install a nut (5) on each
bolt.
5. Make sure that the canopy top is centered up on the
frame and tighten the hardware to the specified torque
value.
ITEM TORQUE SPECIFICATION
5 35 - 53 in. lbs (4 - 6 Nm)
OPS (Operator Protection System)
The entire OPS with the windshield and canopy top may
be removed as a single unit.
Tool List
Torque Wrench, ft. lbs.................................................. 1
Ratchet ........................................................................ 1
Socket, 15 mm............................................................. 1
Wrench, 15 mm ........................................................... 1
Flat Blade Screwdriver ................................................ 1
Hoist or Lift .................................................................. 1
Sling............................................................................. 1
Removal
1. Remove the outer windshield trim as shown previ-
ously in this section.
2. Disconnect the wires from the OPS from the wiring
harness.
3. Remove the rear access panel and both rear splash
shields. See BODY section for detailed instructions on
removal of the access panel and rear splash shields.
Page N-4
4. Remove the bolts (4) and
nuts (5) securing the front
seat belt anchor straps (3)
to the vehicle frame.
5. Attach hoist or lift sling to
support the OPS when the
attaching hardware is
removed.
6. Remove four hex nuts (8)
but DO NOT remove the
four hex head bolts (9)
securing the goalpost to the
rear frame.
8
Qty.
7. Remove the access covers (10), one on each side of
the instrument panel. Loosen two hex head bolts (11)
on each side of the vehicle.
Repair and Service Manual
9

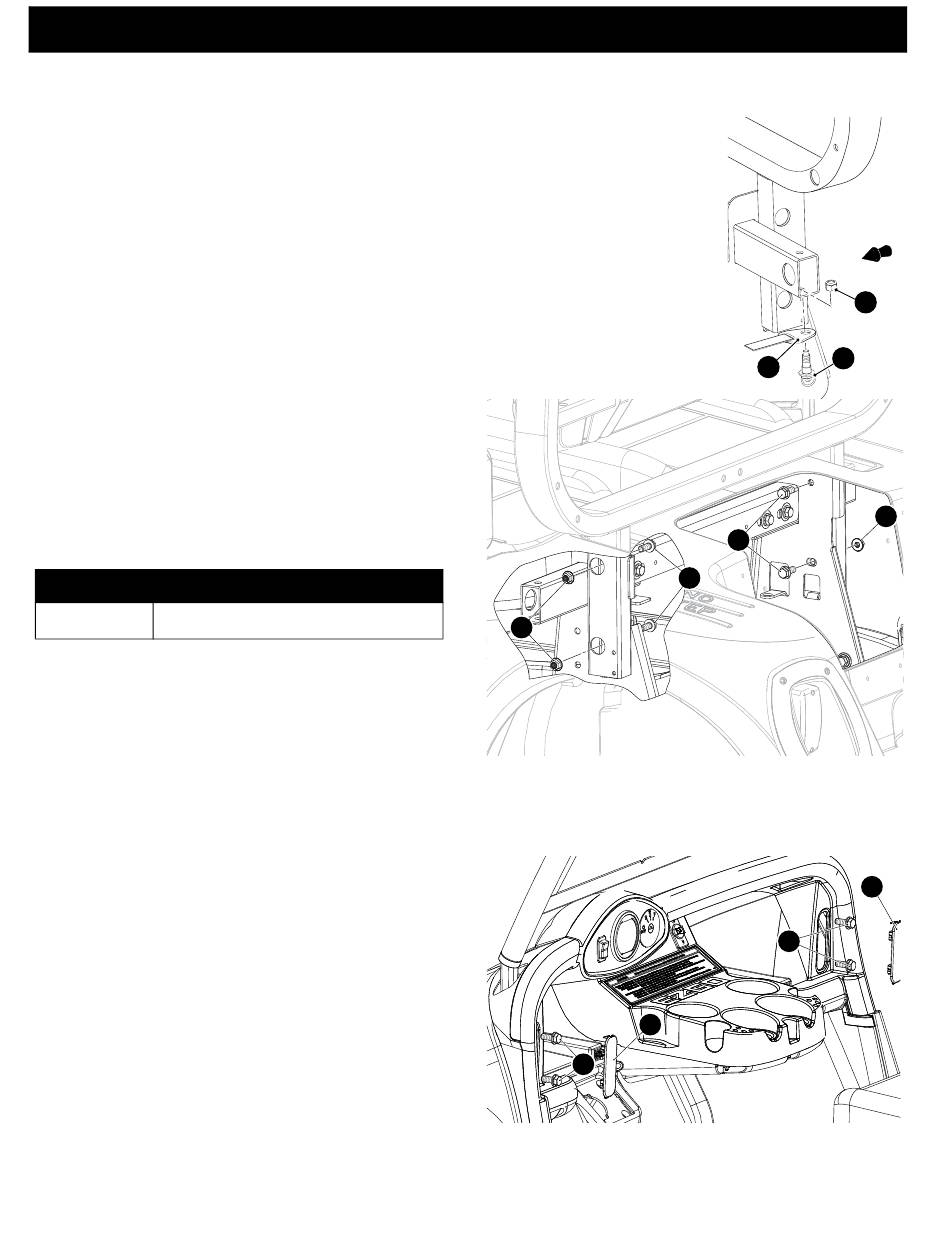

Fig. 7 Goalpost Hardware
10
11
Fig. 8 Front Access Covers and Hardware
FRONT OF
VEHICLE
5
4
3
8
9
10
11
