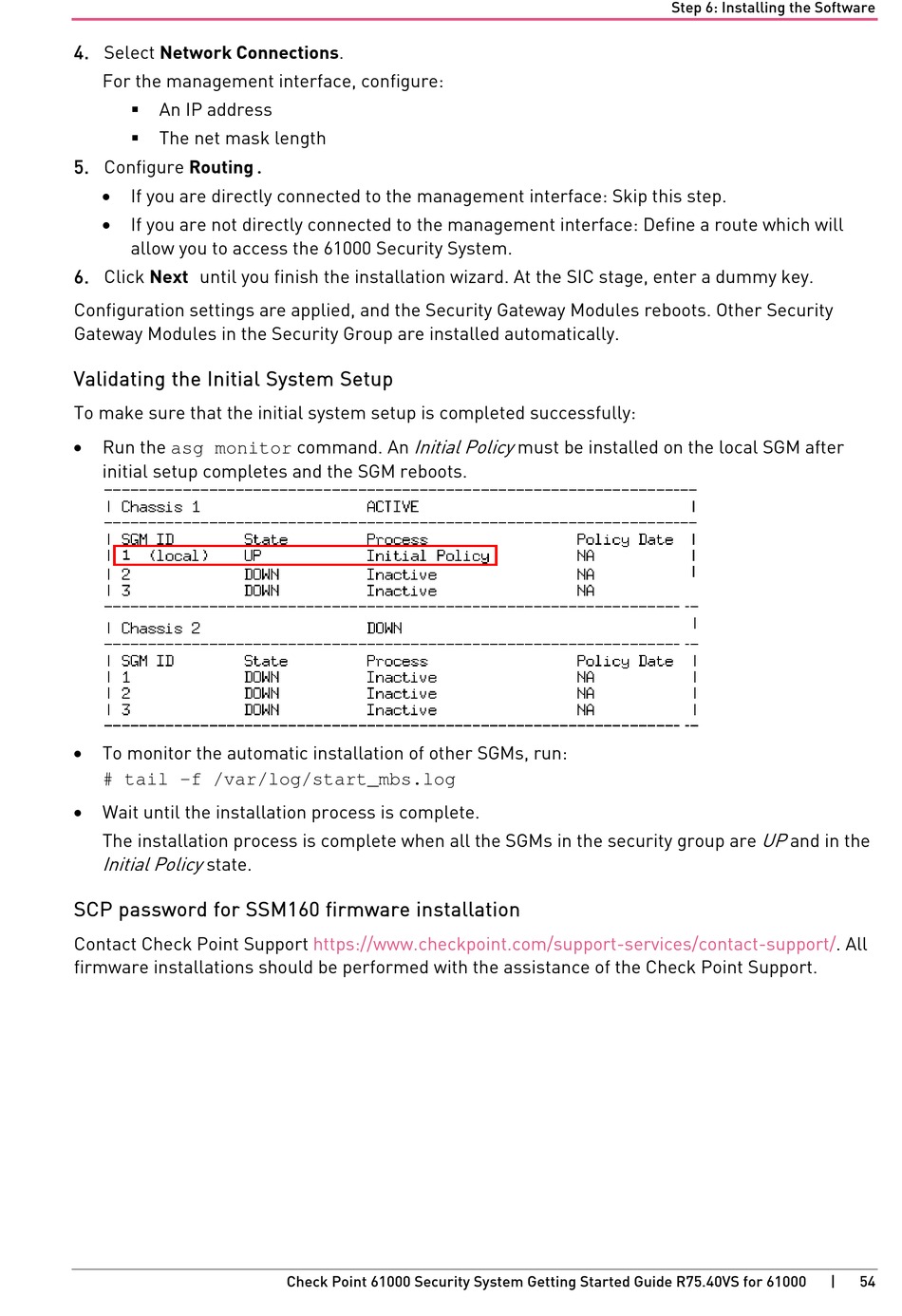

Check Point 61000 Getting Started Manual page 54

4. Select Network Connections.
For the management interface, configure:
An IP address

The net mask length

5. Configure Routing.
• If you are directly connected to the management interface: Skip this step.
•
If you are not directly connected to the management interface: Define a route which will
allow you to access the 61000 Security System.
6. Click Next until you finish the installation wizard. At the SIC stage, enter a dummy key.
Configuration settings are applied, and the Security Gateway Modules reboots. Other Security
Gateway Modules in the Security Group are installed automatically.
Validating the Initial System Setup
To make sure that the initial system setup is completed successfully:
• Run the asg monitor command. An
initial setup completes and the SGM reboots.
•
To monitor the automatic installation of other SGMs, run:
# tail -f /var/log/start_mbs.log
•
Wait until the installation process is complete.
The installation process is complete when all the SGMs in the security group are
Initial Policy
state.
SCP password for SSM160 firmware installation
Contact Check Point Support https://www.checkpoint.com/support-services/contact-support/. All
firmware installations should be performed with the assistance of the Check Point Support.
Initial Policy
Check Point 61000 Security System Getting Started Guide R75.40VS for 61000
Step 6: Installing the Software
must be installed on the local SGM after
UP
and in the
| 54
