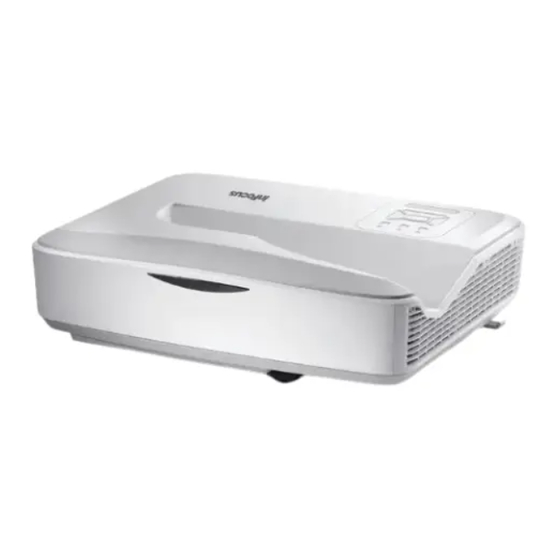

Ultra Short-Throw Laser Projector
User's Manual
XGA/WXGA/1080P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INL14*UST and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus INL14*UST

Summary of Contents for InFocus INL14*UST

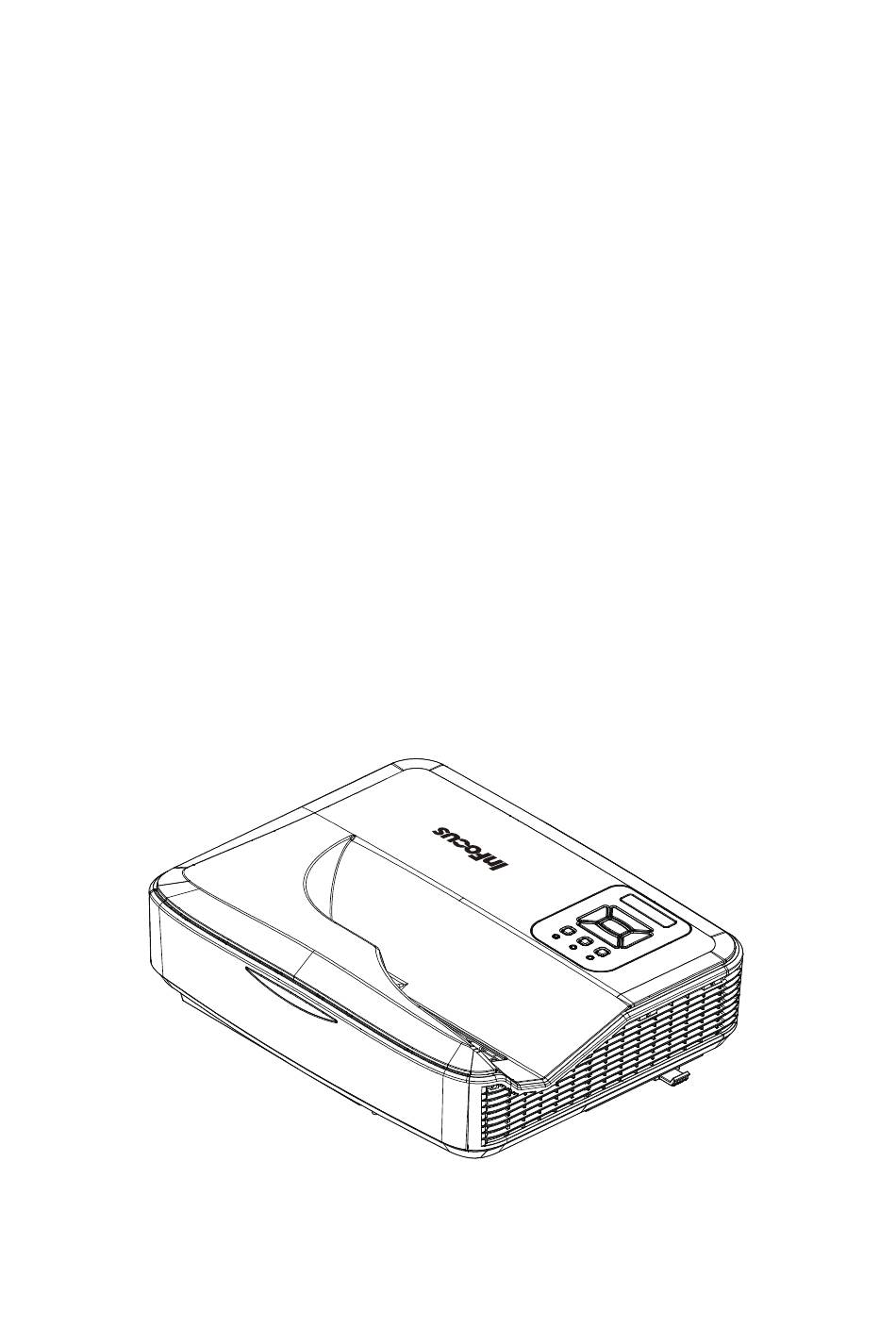

  • Page 1 Ultra Short-Throw Laser Projector User’s Manual XGA/WXGA/1080P...

  • Page 2: Table Of Contents

    Table of Contents EZ View..........49 Table of Contents ......2 Crestron ..........54 Usage Notice ........3 Multimedia ........57 Safety Information .......3 Accessing Multimedia Files ....57 Precautions .........4 How to access Multimedia mode ..57 Introduction ........6 Appendices ........61 Package Overview ......6 Compatibility Modes ......61 Product Overview .......7 VGA Analog ........

  • Page 3: Usage Notice

    Usage Notice Safety Information The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 4: Precautions

    Usage Notice Precautions Please follow all warnings, precautions and main- tenance as recommended in this user�s guide. ▀■ Warning- Do not look into the projector’s lens when the laser is on. The bright light may hurt and damage your eyes. ▀■...
  • Page 5 Usage Notice  Turn off and unplug the power plug from the AC outlet before cleaning the product.  Use a soft dry cloth with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is not ...

  • Page 6: Introduction

    Introduction Package Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.  Due to different applications in each country, some regions may have HDMI Cable Projector Power Cord (US/EU)

  • Page 7: Product Overview

    Introduction Product Overview Main Unit  The interface is subject to model’s specifications. 1. Control Panel 6. Speaker 2. Focus Slide 7. Power Socket 3. Ventilation (inlet) 8. Input / Output 4. IR Receiver Connections 5. Ventilation (outlet) 9. Lens English...

  • Page 8: Control Panel

    Introduction Control Panel Power LED Enter Key Temperature LED Lamp LED Menu Key Input Key Four Direction Keys Power/Standby Key IR Receiver English...

  • Page 9: Input/Output Connections

    Introduction Input/Output Connections VGA1 Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) HDMI2 Connector HDMI1 Connector USB Connector (Service only)  The interface Network Connector is subject to USB Type A Connector model’s Power Socket specifications. VGA-Out/VGA2-In Connector RS-232 Connector (9-pin DIN Type) Composite Video Connector Composite Audio Right Composite Audio Left...

  • Page 10: Remote Control

    Introduction Remote Control Transmitter LED Indicator Power On/Off Enter Four Directional Keys Menu Exit Zoom In Reset Auto Source Zoom Out Volume +/- Keystone +/- Image Blank Screen Aspect Ratio VGA1 HDMI1 VGA2 HDMI2 Video Freeze Number Pad English...

  • Page 11: Installation

    Installation Connecting the Projector Connect to Computer/Notebook Router / Network Switch External Display  Due to the Microphone difference in applications for each country, some regions may have different accessories. Audio Output  (*) Optional accessory 1....................*RS232 Cable 2.....................VGA Cable 3....................*HDMI Cable 4..................*Audio Cable/3.5mm 5....................

  • Page 12: Connect To Video Sources

    Installation Connect to Video Sources DVD Player, Set-top Box, HDTV receiver Composite Video Output  Due to the difference in Microphone applications for each country, some regions may have different accessories.  (*) Optional accessory Audio Output 1..........*15-Pin to 3 RCA Component/HDTV Adaptor 2....................*HDMI Cable 3..................

  • Page 13: Powering The Projector On / Off

    Installation Powering the Projector On / Off Powering On the Projector 1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Red. 2. Turn on the lamp by pressing “ ” button either on the pro- jector or on the remote.

  • Page 14: Powering Off The Projector

    Installation Powering Off the Projector 1. Press the “ ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the “ ” button again to confirm otherwise the message will disappear after 10 seconds.

  • Page 15: Led Lighting Message

    Installation LED Lighting Message Power LED Temp_LED Lamp_LED Message Blue Standby State ＊ (Input Power cord) ＊ Power on Warming Flashing Cooling Down Flashing Flashing No Light: “--”, ＊ Burn-in ON Flashing Flashing Steady light Burn-in OFF ＊ ＊ Power NG Flashing Fan Lock slow:3s...

  • Page 16: Adjusting The Projected Image

    Installation Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with adjustable feet for adjust- ing the image height position. 1. Locate the foot you want to adjust on the underside of the projector. 2. Turn the adjustable foot counter-clockwise to move it outwards or clockwise to move it inwards.

  • Page 17: Adjusting The Projector's Focus

    Installation Adjusting the Projector’s Focus To focus the image, slide the focus slide until the image is clear. XGA series: The projector will focus at distances (lens to  wall) from 0.53~0.68 meters  WXGA series: The projector will focus at distances (lens to wall) from 0.49~0.68 meters ...

  • Page 18: Adjusting Projection Image Size (Diagonal)

    Installation Adjusting Projection Image Size (Diagonal)  XGA series: Projection Image Size from 72.1” to 92.5”.  WXGA series: Projection Image Size from 85” to 115”.  1080p series: Projection Image Size from 86.8” to 102.1”. Image center 96.7 mm English...
  • Page 19 Installation This table is for user’s reference only.  XGA (4:3) Wall mount installation measurement chart Distance from Distance from Distance from top Distance from top surface of surface of Diagonal image Diagonal image Image width Image height of image to top of of image to top whiteboard to whiteboard to...
  • Page 20 Installation WXGA (16:10) Wall mount installation measurement chart Distance from Distance from Distance from top Distance from top surface of surface of Diagonal image Diagonal image Image width Image height of image to top of of image to top whiteboard to whiteboard to size (S) in inch size (S) in mm...
  • Page 21 Installation 1080P (16:9) Wall mount installation measurement chart Distance from Distance from Distance from top Distance from top surface of surface of Diagonal image Diagonal image Image width Image height of image to top of of image to top whiteboard to whiteboard to size (S) in inch size (S) in mm...
  • Page 22 Installation Projector installation measurement chart Table top Screen Table 97 mm Image center This table is for user’s reference only.  XGA (4:3) Table top installation measurement chart Distance from surface Distance from bottom of Diagonal image size Diagonal image size Image height (H) Image width (W) in mm of whiteboard to back of...
  • Page 23 Installation WXGA (16:10) Table top installation measurement chart Distance from surface Distance from bottom of Diagonal image size Diagonal image size Image height (H) Image width (W) in mm of whiteboard to back of image to top of table (O3) (S) in inch (S) in mm in mm...

  • Page 24: User Controls

    User Controls Control Panel & Remote Control Control Panel Using the Control Panel Refer to the “Power On/Off the Projector” POWER section. Enter Press “Enter” to confirm your item selection. INPUT Press “INPUT” to select an input signal. Press “MENU” to launch the on-screen display MENU (OSD) menu.

  • Page 25: Remote Control

    User Controls Remote Control Using the Remote Control Infrared Sends signals to the projector. Transmitter LED Indicator. Refer to the “Power On/Off the Power Projector” section. Exit Press “Exit” to close the OSD menu. Zoom in Zoom in the projector display. Return the adjustments and settings to Reset the factory default values.
  • Page 26 User Controls Using the Remote Control Select the display mode from Bright, Image PC, Movie, Game, and User. Aspect Select aspect ratio. VGA1 Select VGA1 video input. Pause the screen image. Press again Freeze to resume the screen image. HDMI1 Select HDMI1 video input.

  • Page 27: On-Screen Display Menus

    User Controls On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. How to operate To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad.

  • Page 28: Image

    User Controls Image Color Mode There are many factory presets optimized for various types of im- ages. Use the ◄ or ► button to select the item. Bright: For brightness optimization.  PC: For meeting presentation.  Movie: For playing video content. ...
  • Page 29 User Controls Sharpness Adjust the sharpness of the image. Press the ◄ button to decrease the sharpness.   “Sharpness”, “Sat- uration” and “Hue” Press the ► button to increase the sharpness.  functions are only supported under Saturation video mode. Adjust a Composite video image from black and white to full color saturation.

  • Page 30: Configuration

    User Controls Configuration Aspect Ratio Auto: Displays using the source’s aspect ratio, maximizing  screen coverage. 4:3: The image will be scaled to fit the screen using a 4:3 aspect  ratio. 16:9: The image will be scaled to fit the screen using a 16:9 ...
  • Page 31 User Controls V. Position Press the ◄ button to move the image down.  Press the ► button to move the image up.  Digital Zoom Press the ◄ button to reduce the size of an image.  Press the ► button to magnify an image on the projection ...
  • Page 32 User Controls Step 5: Press ▲▼ and ◄► to adjust the geometry. Step 6: Press "Menu" and select another corner to adjust. Step 7: Press "Menu" and select another corner to adjust. Step 8: Select "4 Corners Reset" to restore the original settings. Orientation Front: The image is projected straight on the screen.

  • Page 33: Settings

    User Controls Settings Language Opens the multilingual selection menu. Use the ▲▼ and ◄► keys to select the preferred language then press Enter to finalize the selection. OSD Position Select location of the Menu on the display. Closed Caption Use this function to open the Closed Caption menu. Select be- tween Off, CC1, CC2, CC3, and CC4.
  • Page 34 User Controls LAN (Standby) Select “Off” to make the LAN connection unavailable during stand- by. Select “On” to make the connection available during standby. When in standby the Web Management is not available. The pro- jector must be turned on with a magic packet. VGA-2 (Function) Input: Select “Input”...

  • Page 35: Audio

    User Controls Audio Speaker Select “On” to enable the speaker.  Select “Off” to disable the speaker.  Line Out Select “On” to enable the line out function.  Select “Off” to disable the line out function.  Microphone Select “On” to enable the microphone. ...

  • Page 36: Options

    User Controls Options Auto Source On: The projector will search for other signals if the current input  signal is lost. Off: The projector will only search the current input connection.  Input Press ► button to enable/disable input sources. The projector will not search for inputs that are not selected.
  • Page 37 User Controls High Altitude On: The built-in fans run at high speed. Select this option when  using the projector at altitudes above 2500 feet/762 meters or higher. Off: The built-in fans automatically run at a variable speed ac-  cording to the internal temperature.

  • Page 38: Options | Laser Settings

    User Controls Options | Laser Settings Hours Used (Normal) Displays the hours that the laser has been on in Normal Mode. Hours Used (ECO) Displays the hours that the laser has been on in ECO Mode. Laser Power Mode Normal: Normal mode. ...
  • Page 39 User Controls Auto: When an HDMI 1.4a 3D timing identification signal is   “Frame Sequen- detected the 3D setting is set automatically. tial” is supported Select “On” to enable the 3D function.  on input signals from the VGA, Select “Off” to disable the 3D function. ...

  • Page 40: Blending Mode

    User Controls Blending mode Brightness Use to manually adjust the brightness of blended projectors. Color Temp Use to manually adjust the color temperature of blended projec- tors. Blending application Example of system architecture Network Switch Calibration Camera Blending Box Meeting Room Laptop, Switch and Camera is for image calibration only ...

  • Page 41: Lan

    User Controls Status Displays the network connection status. DHCP Use to configure the DHCP setting. On: Select “On” to obtain an IP address automatically from the  network. Off: Select “Off” to manually assign a fixed IP, Subnet Mask,  Gateway, and DNS.
  • Page 42 User Controls Group Name Displays the group name. Projector Name Displays the projector name. Location Displays the projector location. Contact Displays the contact information. English...
  • Page 43 User Controls How to use a web browser to control your projector You can control the projector remotely via a web browser on your controlling device. You can connect directly or via a network. 1. When making a LAN connection from your network to the projector: Step 1: Please select DHCP On.
  • Page 44 User Controls 2. When making Wi-Fi connection between your computer and the projector Step 1: Setup the WiFi connection Insert a WiFi dongle (optional SP-WIFIUSB-2) in the USB-A socket in the projector.  Go to Input → Multimedia → Settings → WiFi. ...
  • Page 45 User Controls Step 3: Access the Web Management Page in AP mode. Open your web browser and type in the IP address 192.168.111.1 in the URL then press “Enter”. Projector Information Use to get Projector Information and select different languages for Web Management. English...
  • Page 46 User Controls LAN Setting Use to configure network parameters and edit the projector information. Wi-Fi Use to download and install EZ View for different platforms and operating systems. English...
  • Page 47 User Controls Projector Status and Control Use to control the projector and get status information. When the projector is in standby Web Management is not available due to regulations on power usage. To turn the projector back on over the Ethernet connection you must use a magic packet.
  • Page 48 User Controls E-mail Alert Use to configure email settings and alert notices. Password Setting Use to set the password for access to web management. Crestron control: See “Crestron“ section on how to control the projector via Crestron flash English...

  • Page 49: Ez View

    User Controls EZ View EZ View is an APP and software that can wirelessly transfer content from a smart phone, tablet, laptop, desktop, etc. and have it displayed on a projector. There is a limitation to what you can do via the app whilst using the software has no other limitation than a maximum resolution of XGA (1024x768).
  • Page 50 User Controls Step 2: Start EZ View on your device by clicking on the icon below. on PC or Laptop, on tablet or smart phone. EZ View on PC or Laptop Step 1: Connect your PC/Laptop to the projector (AP mode) or connect both the PC/Laptop and the projector to a common WiFi or LAN network (Client mode) Step 2: Select the Multimedia video source on the projector and select Laptop (AP mode) or Desktop (Client mode) then start EZ View on your PC or laptop by clicking on...
  • Page 51 User Controls Step 4: Select Mirror or Extension to display. English...
  • Page 52 User Controls Selects the image position (1 of 4, 1 of 2 or full screen) Mirror Mode Display Extension Mode Display Link to Web management page (AP mode and client mode via LAN network only) Exit Display Mode : Video or Graphic Compatible Mode Audio On/Off Media Streaming mode for playing video application...
  • Page 53 User Controls Step 4: Enter the connection password shown on the screen. Step 5: Select the function to stream to the projector via the EZ View APP. English...

  • Page 54: Crestron

    User Controls Crestron Use to control the projector. Character length limitations for entering Projector Information. Input-Length Category Item (characters) IP Address Crestron IP ID Control Port Projector Name Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Subnet Mask Configuration Default Gateway DNS Server...
  • Page 55 User Controls Crestron RoomView Control Tool Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including the projector’s online status, system power, lamp life, network settings and hardware faults, plus any custom attribute as defined by the Administrator.
  • Page 56 User Controls 3. Edit Attribute 4. Edit Event For further information, please visit: http://www.crestron.com & www.crestron.com/getroomview. English...

  • Page 57: Multimedia

    Multimedia Accessing Multimedia Files This projector supports two methods to project media files (photos, videos, music, documents) stored on following devices: a. via Wireless dongle (see above) - wirelessly access the media files stored on your mobile phone, tablet PC, notebook, or desktop. b.
  • Page 58 Multimedia USB Storage Display To access the media files stored on your USB flash drive, do the following: Supported File Formats Multimedia Category File Formats Photo BMP, JPG Music MP3, WMA Video AVI, MOV, MP4, RM, RMVB, DAT, MPG, ISO, TS, MKV, VOB, and WMV Document WORD, EXCEL, PPT, PDF 1.
  • Page 59 Multimedia 3. Use the ▲▼ keys to select the file to view/play and press the “Enter” key to confirm. Configuring Multimedia Settings To change the settings, do the following: 1. In the Multimedia menu, select Settings. 2. Use the ▲▼ keys to select the desired menu option and press the “Enter”...
  • Page 60 Multimedia System: Select this option to view the firmware version and  update firmware. Video: Select this option to change the display ratio and set  the repeat mode. Photo: Select this option to change the display ratio, slide-  show pattern, and slideshow duration.

  • Page 61: Appendices

    Appendices Compatibility Modes VGA Analog  a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [KHz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 720x400 31.5 800x600 35.1 800x600 37.9 SVGA 800x600 48.1 800x600 46.9 800x600 53.7 Apple, MAC II 832x624 49.1...
  • Page 62 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [KHz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 UWHD 1920x720 44.4 Full HD 1920x1080 67.5 WUXGA with reduced 1920x1200 60(RB) blanking c. Component signal Modes Resolution V.

  • Page 63: Hdmi Digital

    Appendices HDMI Digital  a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [KHz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 720x400 31.5 800x600 35.1 800x600 37.9 SVGA 800x600 48.1 800x600 46.9 800x600 53.7 Apple, MAC II 832x624 49.1 1024x768...
  • Page 64 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [KHz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 UWHD 1920x720 44.4 c. Video signal Modes Resolution V. Frequency [Hz] H. Frequency [KHz] 480p 640x480 59.94/60 31.5...

  • Page 65: Rs232 Commands And Protocol Function List

    Appendices RS232 Commands and Protocol Function List RS232 Port Settings  Items Method Communication Method Asynchronous Communication Bits per seconds 19200 Data bits 8 bits Parity None Stop bits Flow control None RS232 Signals Connection   RS232 shell is grounded. Computer COM Port Projector COM Port (D-Sub 9pin connector)

  • Page 66: Set Commands

    Appendices Set Commands  Command Projector ASCII Code n value Note Description Return 0 : Off Power #0000 n 1 : On 1 : Up 2 : Left 3 : Right 4 : Down 5 : Menu Emulate Remote #0001 n 6 : Source 7 : Keystone+ 8 : Keystone-...
  • Page 67 Appendices 1 : Auto 2 : 4:3 Aspect Ratio #0020 n 3 : 16:9 4 : 16:10 / Ultra Wide 0 : Zoom- Zoom #0021 n 1 : Zoom+ Keystone #0022 n -40~40 1 : Front 2 : Rear Orientation #0023 n 3 : Front Ceiling 4 : Rear Ceiling...
  • Page 68 Appendices Microphone #0042 n 0~30 Volume Auto Power Off #0050 n 0~120 Step = 5 (min) 0 : Off High Altitude #0051 n 1 : On Read Commands n : 1/2/3/4/5 = Bright Color Mode #00110 1 / PC / Movie / Game / Read User n : 1/2/3/4 = Auto / 4:3...

  • Page 69: Ceiling Mount Installation

    Ceiling Mount Installation 1. To prevent damage to your projector, please use the InFocus ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector...

  • Page 70: Regulation & Safety Notices

    Appendices Regulation & Safety Notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules.
  • Page 71 Appendices Operating Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 72 Appendices Safety notice WARNING - This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11. - Class 2 laser product, Do Not Stare Into Beam. - IEC 60825-1:2014 Class 1 laser product/risk group 0 IEC 62471-5:2015. - This projector has a built-in Class 4 laser module.
