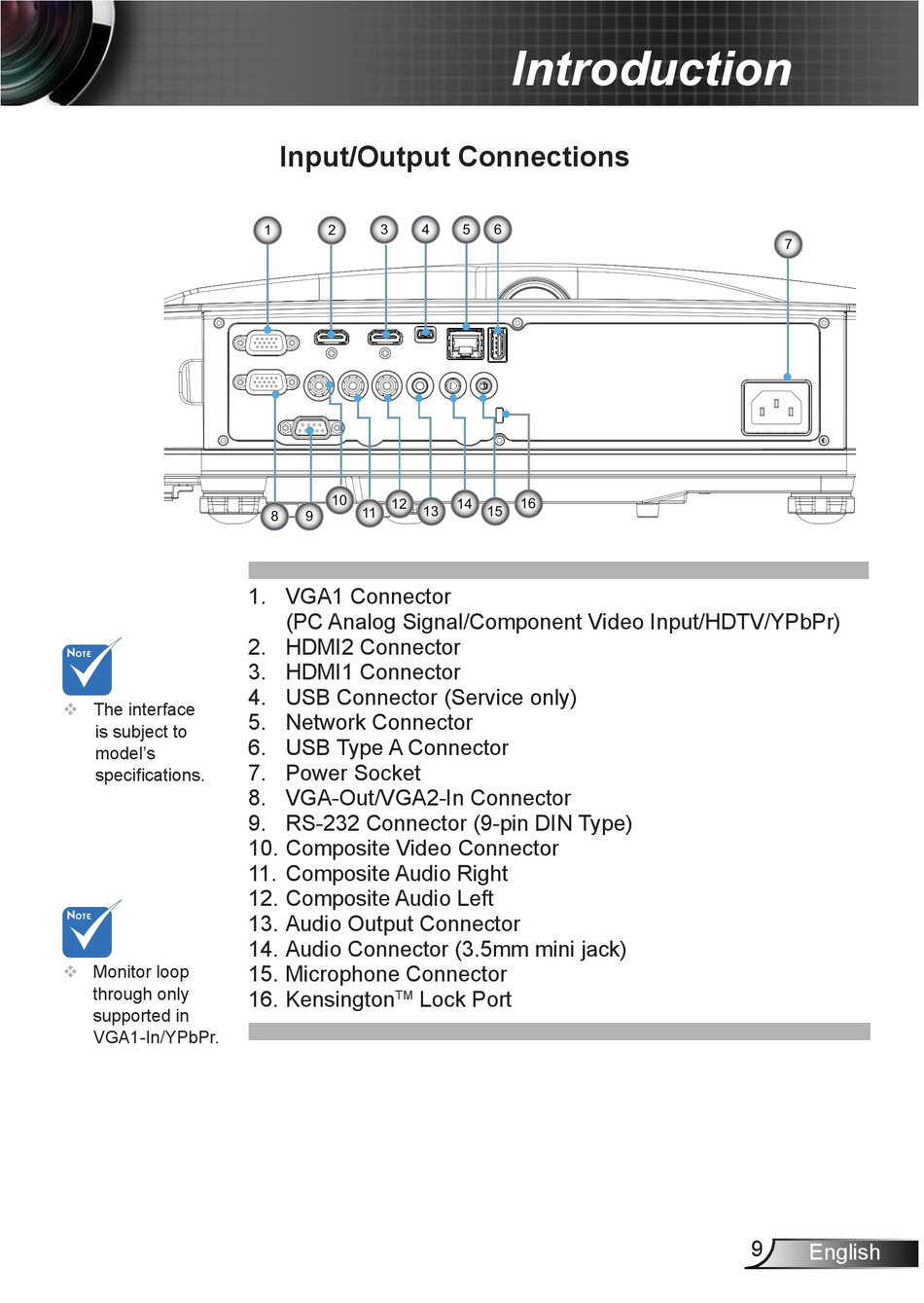

Input/Output Connections

3
1 2
10
12
11
8 9
1. VGA1 Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
2. HDMI2 Connector
3. HDMI1 Connector
4. USB Connector (Service only)
5. Network Connector
6. USB Type A Connector
7. Power Socket
8. VGA-Out/VGA2-In Connector
9. RS-232 Connector (9-pin DIN Type)
10. Composite Video Connector
11. Composite Audio Right
12. Composite Audio Left
13. Audio Output Connector
14. Audio Connector (3.5mm mini jack)
15. Microphone Connector
16. Kensington Lock Port
