Thank you for purchasing a Panasonic product.
Please follow all instructions in this document and save it for future reference.
Carefully read the information found in the section titled "1.1 Important safety information" in particular.
This product is a separately sold power supply unit for use with Panasonic Video Intercom Systems.
Note to the installer
R Please read this document carefully, and install the product safely and correctly by following the
instructions.
R Only use attachments/accessories specified by the manufacturer.
R The installation shall be carried out in accordance with all applicable installation rules.

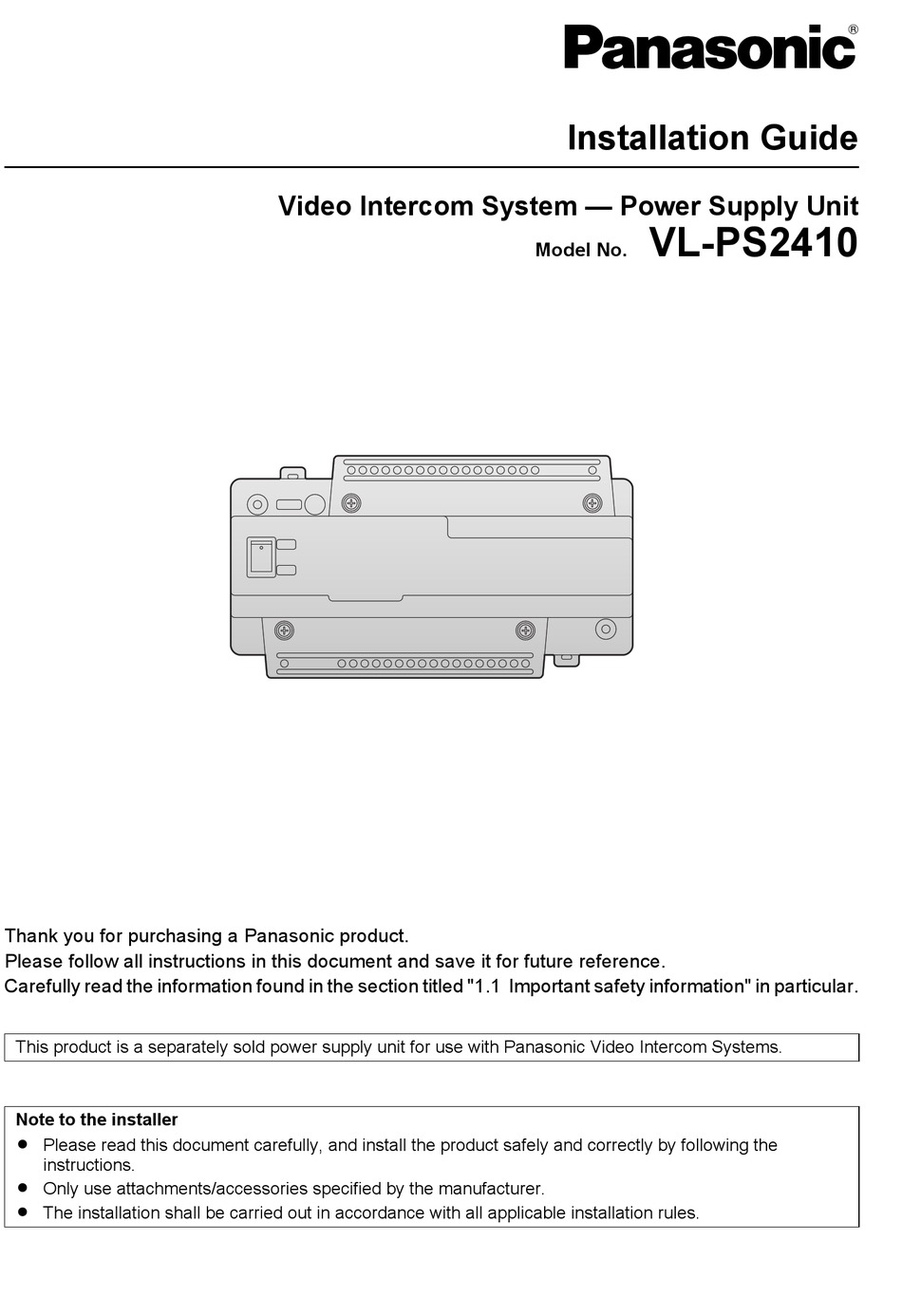

Video Intercom System — Power Supply Unit
Installation Guide
VL-PS2410
Model No.
Advertisement
Table of Contents
Related Manuals for Panasonic VL-PS2410
Summary of Contents for Panasonic VL-PS2410
- Page 1 Please follow all instructions in this document and save it for future reference. Carefully read the information found in the section titled "1.1 Important safety information" in particular. This product is a separately sold power supply unit for use with Panasonic Video Intercom Systems. Note to the installer R Please read this document carefully, and install the product safely and correctly by following the instructions.
-
Page 2: Table Of Contents
Table of Contents 1. Important Information Important safety information ......3 Important safety instructions ......4 Disclaimer .............4 Other important information ......4 General information ........4 For India only ..........5 For Europe ............5 2. Preparation Included items ..........6 Specifications ..........6 Device diagrams ...........6 3. -
Page 3: Important Information
3000 wiring rules. R Make sure you turn off the power at the breaker R Use only the power supply unit VL-PS2410. before performing any wiring work. R Do not place objects on the power cables. Install the R Always connect power cables to the appropriate product where no one can step or trip on the power connection terminals. -
Page 4: Important Safety Instructions
Stand-by (power) R When power fails, this product cannot be used. R Panasonic may not be liable for damages due to "ON"/"OFF" (power; push-push) external factors such as power failures. Caution, risk of electric shock 1.5 General information... -
Page 5: For India Only
This symbol (A) on the products, packaging, and/or dismantler or recycler, or Panasonic service centre when accompanying documents means that used electrical disposing of this product. -
Page 6: Preparation
2. Preparation 2.1 Included items 2.3 Device diagrams The following items are included in addition to the power Example: power supply unit with the cable cover 2. . Preparation supply unit. removed Item Quantity Screw (3.8 mm ´ 20 mm) Used to secure the power supply unit to the wall. -
Page 7: Installation Cautions
3. Installation 3.1 Installation cautions 3.2 Installing the power supply unit Refer to the information found in 1 Important Information 3. . Installation (Page 3) before installing the product. Required items – Power supply unit CAUTION – Cable binders (included with power supply unit) –... - Page 8 3. Installation wire should be connected to, and insert the DC 3.2.1 Connecting the AC wires and DC wires wires as shown. Strip the ends of the wires that connect to the power supply unit as shown below. CAUTION AC wires DC wires 45 mm 25 mm...
- Page 9 3.2.2 Information about the power supply unit The VL-PS2410 power supply unit has 6 DC OUT connections terminals. (Use the VL-PS2410 so that the combined output does not exceed 2.5 A. Check the power consumption of each device for more information.) 3.2.3 Mounting on a DIN rail...
-
Page 10: Cleaning
3. Installation R A certified power supply wiring has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply wiring not lighter than ordinary polyvinyl chloride flexible wiring according to IEC 60227 shall be used. 3.3 Cleaning Wipe the product with a soft, dry cloth. - Page 11 Notes...
