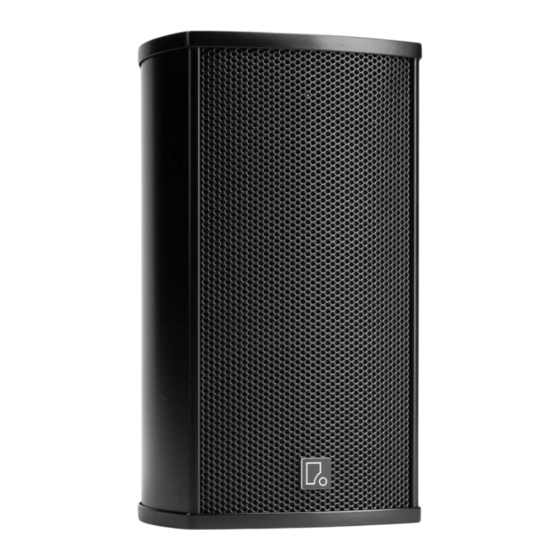

Fohhn LINEA LEN–20 Quick Start Manual

VOICE ALARM-SERIES
EN 54-24-CERTIFIED LINE SOURCE SPEAKERS
FOR VOICE ALARM APPLICATIONS.
LINEA LEN
LEN–20/ LEN–60/ LEN–100/ LEN–150/ LEN–220
QUICK START GUIDE
Congratulations on purchasing a FOHHN
100 V systems with aluminium housing, specially designed for use with voice alarm systems and certified according to
EN54-24, Type B.
Your LINEA LEN system contains the following components:
1 × LEN–20/ LEN–60/ LEN–100/ LEN–150/ LEN–220
1 × quick start guide
1 × cover plate
(including 2 x cable glands & dummy plugs)
Please examine your new product carefully for any signs of damage that may have occurred during transportation and, if
necessary, inform your dealer and the transport company immediately. Please also check that the packaging includes all
components belonging to the product. If anything is missing, please let your FOHHN
Please read the user manual carefully before operating the equipment and keep it for the future reference. The PDF is
available for download at WWW.FOHHN.COM. If you cannot download it, please contact FOHHN
FOHHN AUDIO AG
®
Hohes Gestade 3-8
72622 Nürtingen
Fon +49 7022 93323-0
Fax +49 7022 93324-0
info@fohhn.com

SETUP AND OPERATION

Depending on the particular model, LEN loudspeakers can be mounted on building structures using the following wall
brackets: WAL-1, WAL-03, WLX-100, WLX-200
Loudspeaker mounting within buildings should only be carried out by trained personnel. Please ensure that the wall
brackets you have selected are suitable for use with the product to be installed. We also recommend that you read
Chapters 1 and 2 of the user manual carefully. You must also observe any relevant national safety requirements.
DETAILED INSTRUCTIONS ON INSTALLATION AND MOUNTING CAN BE FOUND IN THE USER MANUAL!
LINEA LEN loudspeaker system. LEN loudspeakers are passive, weatherproof
®
dealer know immediately.
®
immediately:
®
