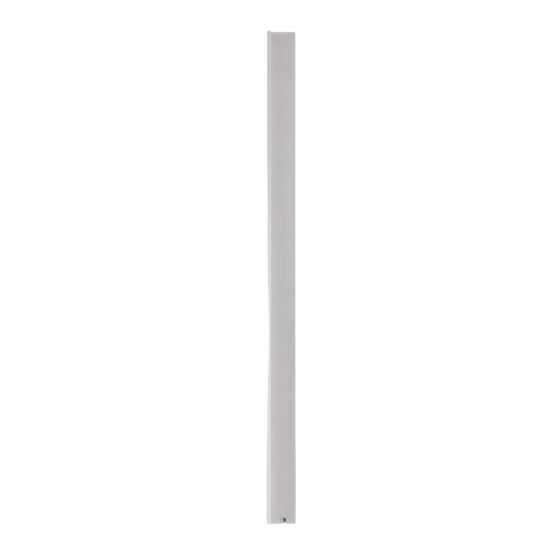

LINEA LC
DESIGNLAUTSPRECHER FÜR HÖCHSTE
SPRACHVERSTÄNDLICHKEIT.
LINEA LC
LC-20 / LC-60 / LC-100 / LC-150 / LC-220
BEDIENUNGSANLEITUNG | USER MANUAL
Bitte lesen Sie vor Inbetriebnahme des Gerätes die Bedienungsanleitung sorgfältig durch und bewahren Sie sie auf.
Please read this manual carefully before operating the equipment and keep it for the future reference.
Advertisement
Table of Contents
Related Manuals for Fohhn LINEA LC Series
Summary of Contents for Fohhn LINEA LC Series
- Page 1 LINEA LC DESIGNLAUTSPRECHER FÜR HÖCHSTE SPRACHVERSTÄNDLICHKEIT. LINEA LC LC-20 / LC-60 / LC-100 / LC-150 / LC-220 BEDIENUNGSANLEITUNG | USER MANUAL Bitte lesen Sie vor Inbetriebnahme des Gerätes die Bedienungsanleitung sorgfältig durch und bewahren Sie sie auf. Please read this manual carefully before operating the equipment and keep it for the future reference.
-
Page 2: Table Of Contents
CONTENT | ENGLISH IMPORTANT SAFETY INFORMATION Connections and cabling INTRODUCTION Intended readers of this manual Scope of supply Unpacking the product SETUP AND OPERATION Installation and mounting Wiring Operating conditions Transportation and storage Maintenance Servicing and repair TECHNICAL DATA ACCESSORIES EG CONFORMITY (CE MARKING) WEEE DIRECTIVES (DISPOSAL) -
Page 3: Important Safety Information
Only use the recommended FOHHN accessories with this product, or brackets. other components that have been explicitly specified in this manual. -
Page 4: Introduction
2. Check the product carefully for any signs of damage integrated passive filters that guarantee an even disper- during transportation. sion and the best possible coverage. An integrated FOHHN SOURCE DIVISION WAVEGUIDE effectively suppresses side If any is found, please notify the transport com- lobes, resulting in improved speech intelligibility for acousti- pany immediately. -
Page 5: Setup And Operation
LOUDSPEAKERS BRACKETS • All FOHHN brackets include fastening materials for connecting them to the loudspeaker. If you want to use other screws, their strength must be at least class 8.8; this corresponds to a tensile strength of 800 N/mm² and a 0.2 % proof stress of 640 N/mm². - Page 6 SETUP AND OPERATION | ENGLISH MOUNTING WITH WAL-1 BRACKETS 1. Remove the two oval-head screws from the top and base of the loudspeaker. SEE FIGURE 2. 2. Fix both WAL-1 brackets to the wall using two screws and wall plugs in each case. The loudspeaker itself serves as the best distance gauge.
- Page 7 SETUP AND OPERATION | ENGLISH MOUNTING WITH WLX-100 / WLX-221 WALL BRACKETS Remove both oval-head screws M6 (D) at the mount- ing plate and loosen the screws (C, F, G) by about three turns. Remove the mounting plate from the wall bracket. SEE FIGURE 4.
- Page 8 SETUP AND OPERATION | ENGLISH MOUNTING WITH THE WAL-03 BRACKET (LEN-20 ONLY) 1. Remove the two M6 oval-head screws that are located underneath the connector panel. SEE FIGURE 9. 2. Fix the WAL-3 to the wall using two screws and wall plugs.
-
Page 9: Wiring
SETUP AND OPERATION | ENGLISH 3.2 WIRING All LC series loudspeakers are passive systems designed for use with external amplifiers. They have identical ca- bling connectors and can be supplied with a choice of two options: • 2 × 4 plastic terminal blocks are supplied as standard. These are suitable for wires with a cross section of up to 4 mm². -
Page 10: Operating Conditions
The system should be well ventilated at all times. To en- To find a FOHHN Service centre in your area, please con- sure sufficient air-flow, it should not be covered with tow- tact us at the address on the back page of this manual. -
Page 11: Technical Data
TECHNICAL DATA | ENGLISH 4. TECHNICAL DATA Model LC-20 LC-60 LC-100 LC-150 LC-220 Electroacoustical features weatherproof passive line source speaker system, closed, passive 2-way CD crossover and filter, Acoustic design suppression of side lobes by Source Division Waveguides (SDW) Number of 4" drivers with treated cones 2-way design Power rating (nominal) [1] Power rating (program) [2]... -
Page 12: Accessories
ACCESSORIES | ENGLISH 5. ACCESSORIES WAL-1 WAL-03 WLX-100 WLX-221 LC loudspeaker with wall bracket... -
Page 13: Eg Conformity (Ce Marking)
This loudspeaker complies with the currently applicable conditions of EMC law and as such, carries the CE marking. The relevant Declarations of Conformity are available on request from FOHHN AUDIO AG 7. WEEE DIRECTIVES (DISPOSAL) Electrical and electronic components must not be disposed of in standard household waste. For this reason we include the dustbin symbol shown here on our products and in manuals. - Page 14 FOHHN AUDIO AG ® Hohes Gestade 3-8 72622 Nürtingen Germany Tel. +49 7022 93323-0 Fax +49 7022 93324-0 www.fohhn.com info@fohhn.com FOHHN im Social Web ® DB0092X Stand 10.04.2018...
