Web Configuration Guide

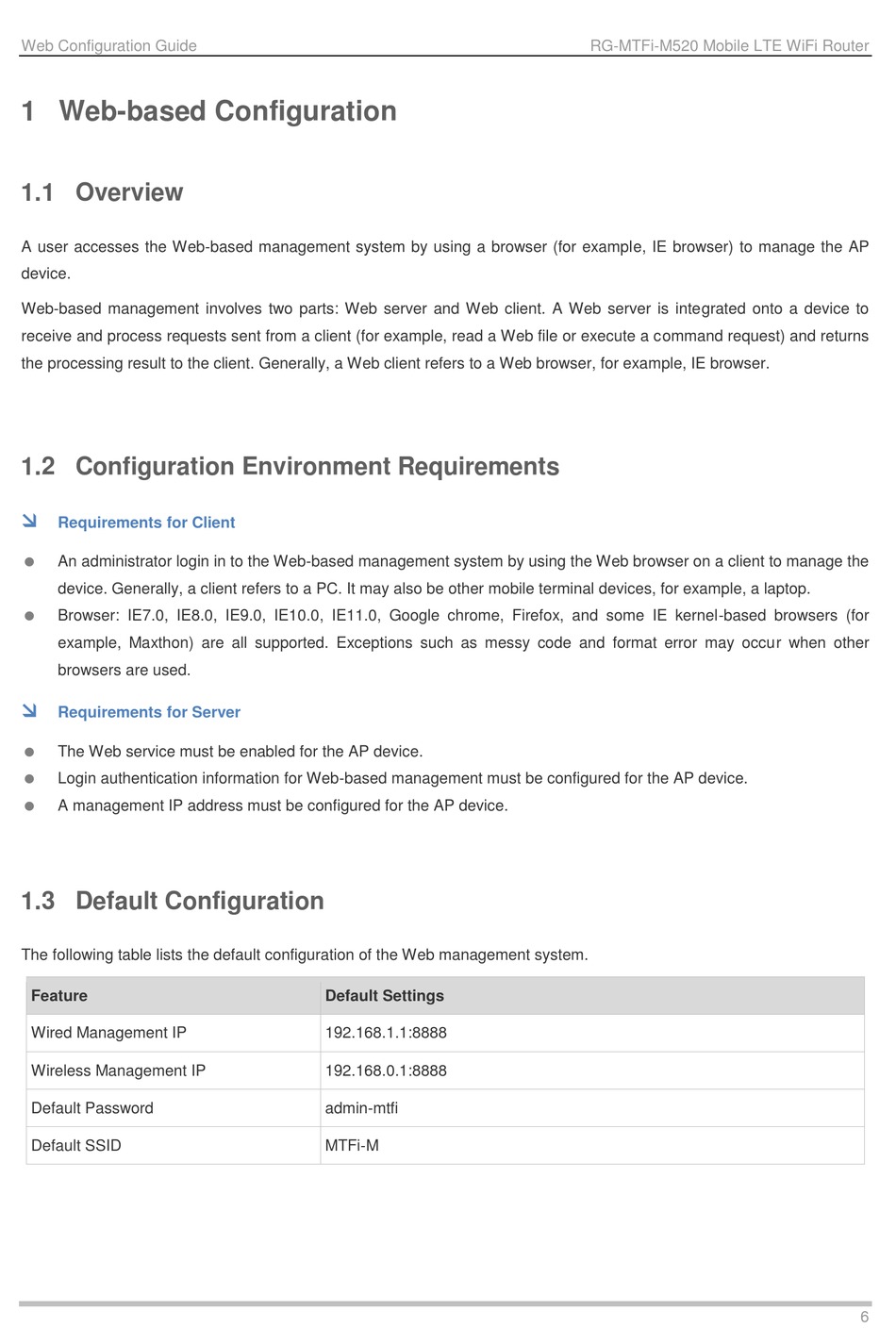

1 Web-based Configuration

1.1 Overview

A user accesses the Web-based management system by using a browser (for example, IE browser) to manage the AP
device.
Web-based management involves two parts: Web server and Web client. A Web server is integrated onto a device to
receive and process requests sent from a client (for example, read a Web file or execute a command request) and returns
the processing result to the client. Generally, a Web client refers to a Web browser, for example, IE browser.

1.2 Configuration Environment Requirements


Requirements for Client

An administrator login in to the Web-based management system by using the Web browser on a client to manage the
device. Generally, a client refers to a PC. It may also be other mobile terminal devices, for example, a laptop.

Browser: IE7.0, IE8.0, IE9.0, IE10.0, IE11.0, Google chrome, Firefox, and some IE kernel-based browsers (for
example, Maxthon) are all supported. Exceptions such as messy code and format error may occur when other
browsers are used.

Requirements for Server

The Web service must be enabled for the AP device.

Login authentication information for Web-based management must be configured for the AP device.

A management IP address must be configured for the AP device.

1.3 Default Configuration

The following table lists the default configuration of the Web management system.
Feature
Wired Management IP
Wireless Management IP
Default Password
Default SSID
Default Settings
192.168.1.1:8888
192.168.0.1:8888
admin-mtfi
MTFi-M
RG-MTFi-M520 Mobile LTE WiFi Router
6
