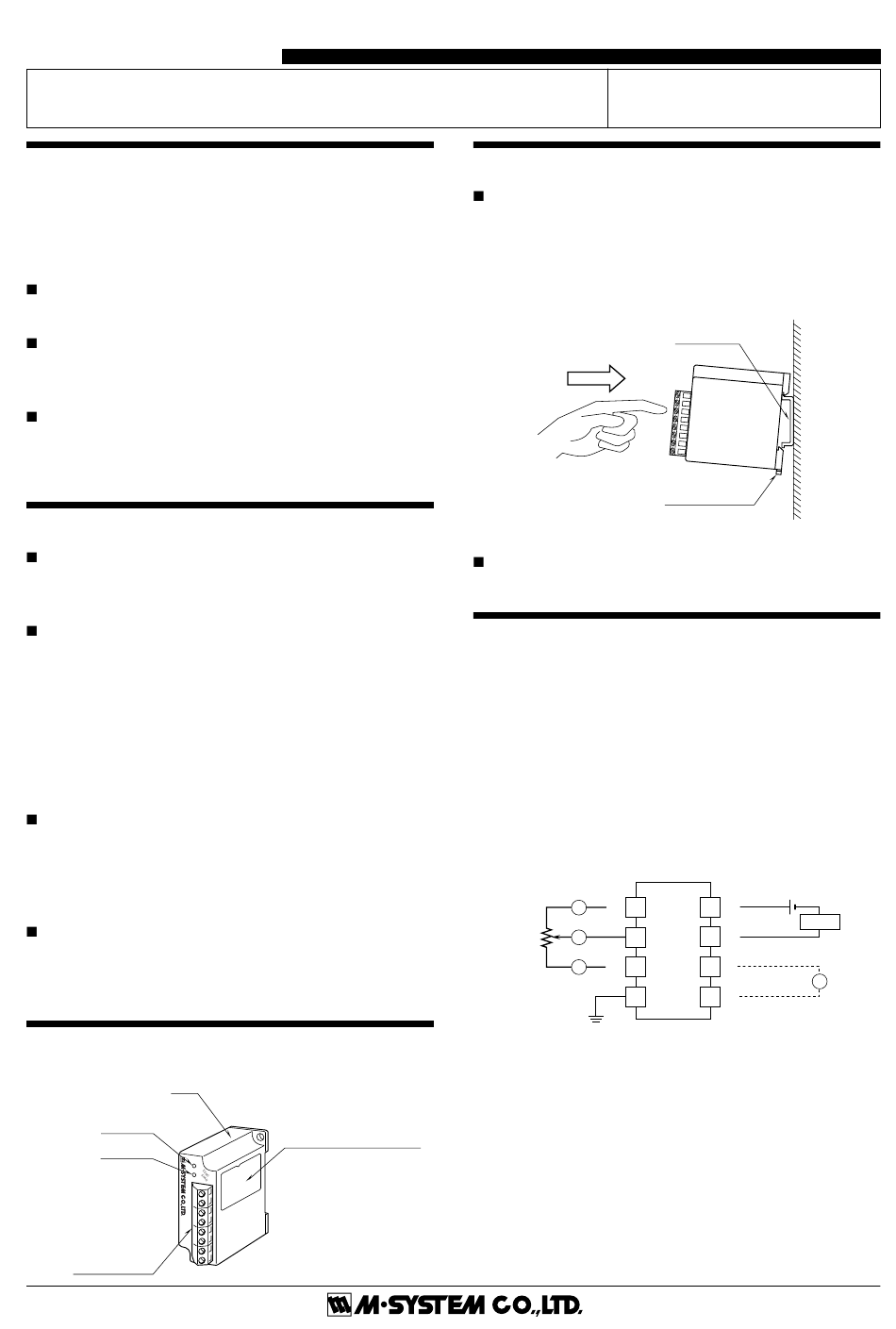

M-system TM Instruction Manual

INSTRUCTION MANUAL
POTENTIOMETER TRANSMITTER

BEFORE USE ....

Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner ................................................... (1)
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.

POINTS OF CAUTION

GENERAL
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing and ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +60°C (23
to 140°F) with relative humidity within 30 to 90% RH in order
to ensure adequate life span and operation.
WIRING
• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
AND ....
• The unit is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.

COMPONENT IDENTIFICATION

Body
Zero Adj.
Span Adj.
DIN Terminals
Specification/Connection
Diagram Label
MODEL

INSTALLATION

DIN RAIL MOUNTING
Set the unit so that its DIN rail adaptor is at the bottom.
Position the upper hook at the rear side of the unit on the DIN
rail and push in the lower. When removing the unit, push
down the DIN rail adaptor utilizing a screwdriver (–) and
pull.
WALL MOUNTING
Refer to the External Dimensions in the next page.

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the
connection diagram label on the unit side.
Do not interconnect negative sides of input and output
terminals (via grounding terminals e.g.) as they are not of the
same potential level.
Ground the terminal 6 for RFI protection if necessary. When
grounded, dielectric strength between output signal line and
ground is of 50V DC, though it is of 500V AC when not
grounded.
POTENTIOMETER
max.
+
3
3
4
2
–
5
1
min.
6
TM
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
24VDC
+
7
OUTPUT LOAD
–
8
4 – 20mADC
+
+
1
MONITOR mA
–
2
–
P. 1 / 2 EM-3315 Rev.5
