Asymod IIIs Installation Manual page 10

Advanced Installation with DPDT Switch.
Refer to FIG. 1
1- Remove jumpers J3 and J4. NOTE: for regular stock AM use, including SSB and FM, these
jumpers must be in their original factory location and the Asymod III fully disconnected. To use
the Asymod III and maintain SSB and FM functionality this or the DPDT Relay advanced
installation above must be performed beginning on page 8.

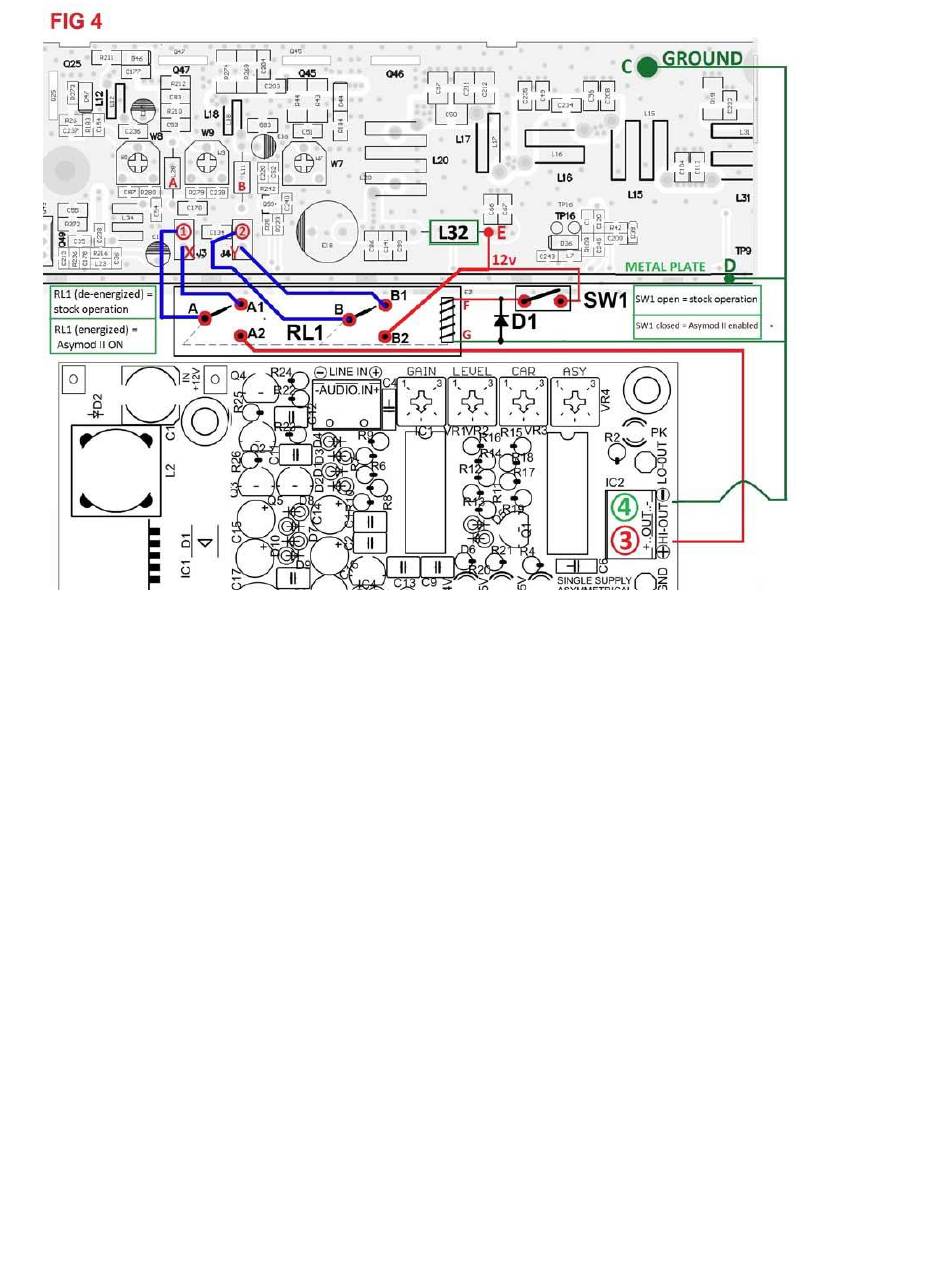

Refer to FIG. 5
2- Run a wire from the Asymod III, HI-OUT+ (3) terminal to SW2 pin A2 as shown.
3- Run a wire from the Asymod III, HI-OUT- (4) terminal to point
4- Run a wire from the anode of D515 (FIG.2) to the Asymod III +12V input (1) terminal and
connect the – input (2) terminal to point
5- Run a wire from L32, point
6- Run the rest of the wires from SW2 to J3 and J4 as shown.
7- Please refer to FIG. 3 for audio input connections. Connect the Audio output of your audio
processing chain to the Line In terminals
or any other microphone connected directly to the mic jack of the transceiver, install a shielded
audio cable from TP900, located toward the front of the transceiver to the Line In terminal 5.
8- With this configuration:
C or D (Chassis Ground) as shown.
E (+12v) to SW2 pin B2 as shown
5 and 6. If you prefer to use the transceiver's hand mic
- 10 -
C or D (Chassis Ground).
