Thermometer Immersion ....................... 14 Fill the Bath ..........................14 Drain the Bath ..........................16 Bath Operation ........................ 17 Turn on the CT-1000 ........................17 Set Bath Temperature ........................ 18 Fixed Temperature Adjustments .................... 18 Variable Temperature Adjustments ..................19 Adjust the High Temperature Limit Control ................20 Troubleshooting ......................
Page 6

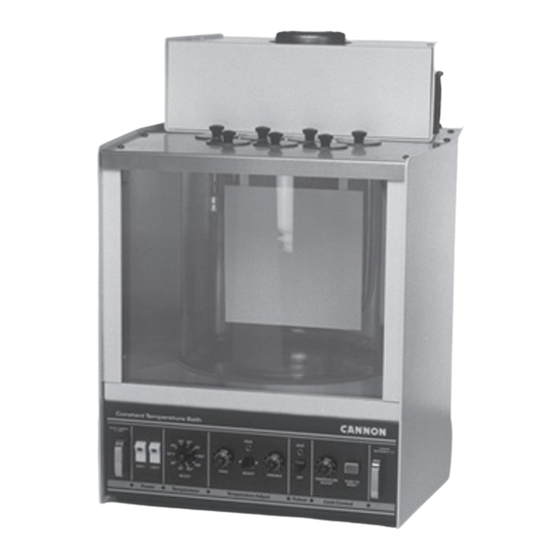

Figure 1: CANNON CT-1000 ......................1 Figure 2: CT-1000 Front Panel ......................2 Figure 3: Top View of CT-1000 Assembly with Probe ................ 2 Figure 4: Primary Bath Components after Unpacking ............... 8 Figure 5: Remove Screws from Top Covers ..................9 Figure 6: Remove Top &...
Page 7
Figure 22: Inside Drawer with Access to Trimpots ................31 Figure 23: Adjusting Potentiometers ....................31 List of Tables Table 1: Specifications ........................7 Table 2: Problem Analysis ......................21 Table 3: CT-1000 Spare Parts List ....................23 Table 3: Bath Fluid Options ......................27...
Two additional holes are provided for thermometers as shown in Figure 3. Twin fluorescent lamps provide glare-free illumination of the bath. Figure 3: Top View of CT-1000 Assembly with Probe CT-1000 Instruction Manual...
The temperature control of ± 0.01 °C below 100 °C and ± 0.03 °C from 100 °C to 150 °C provides the sensitivity required by ASTM D445 for kinematic viscosity measurements. A built-in cooling coil, when connected to tap water or a cooling system, permits operation below or slightly above ambient temperature. CANNON Instrument Company® | Introduction/Installation...
Manufacturer is not liable for any loss or damage directly or indirectly caused by use of the instrument or its consequences. This manual pertains directly to the CT-1000 constant temperature bath. For details relating to other accessories or equipment please refer to the appropriate manufacturers supplied documentation.
Keep all connections as neat as possible. • Unplug the power cord from the wall outlet if the CT-1000 will not be used for an extended period of time. Disconnect the power cord by pulling it out by the plug. Never pull on the cord.
Page 16
Material Safety Data Sheets included with the bath fluid for more detail. Caution: Do not attempt to service the CT-1000 system by removing panels and trying to effect repairs. Contact CANNON regarding service and repair needs. ~MAINS symbol indicates the connections for the AC power supply.
Unpack & Assemble This section of the manual provides assistance in unpacking and assembling the CT-1000 Constant Temperature Bath. Unpack the CT-1000 The CANNON CT-1000 Constant Temperature Bath is shipped in two boxes: • Box 1 contains the glass jar, front glass panel pieces, jar gasket top, trimpot adjust screwdriver, Allen wrench, seven hole covers, rubber thermometer holder and instruction manual.
The glass jar is heavy. Use caution when lifting jar. 7. Make sure the rubber support ring is seated properly around the bottom jar opening in the bath unit as shown in Figure 7. CANNON Instrument Company® | Unpack & Assemble...
10. Lower the glass jar into the cabinet so it seats evenly on the rubber support ring. Refer to Figure Figure 9: Installing Bath Jar CT-1000 Instruction Manual...
16. Press down or pull up on the plastic release bars on either side of the drawer track to release the drawer, then pull the drawer completely free of the unit and set it aside. CANNON Instrument Company® | Unpack & Assemble...
22. After checking the impeller blades to make sure that the flat sections all lie in the same plane (refer to Appendix II – Correct Shaft & Impeller Misalignment) insert the motor stirrer in the provided opening. Refer to Figure 14. CT-1000 Instruction Manual...
The back lip on the rear top cover fits into the slot on the top heater housing. Line up the holes, insert screws, and tighten. 24. Connect all plugs and probes to the correspondingly labeled sockets at the rear of the CT-1000 bath unit. Refer to Figure 15 for an image of the final assembly.
Insert Viscometer Tubes/Thermometers The top cover of the CT-1000 contains seven apertures, 51 mm (2”) in diameter, for the insertion of viscometer tube holders. Two additional holes are provided for insertion of thermometers. Refer to Figure 16. Figure 16: CT-1000 Top View without Hole Covers...
Caution: The bath must be places in its intended final position before adding bath fluid. The CT-1000 should never be moved with bath fluid in the bath. Warning: Never use flammable bath liquids. 1. Make sure that the instrument power is OFF and select a bath liquid appropriate to your operating temperature range.
Monitor the bath liquid level closely when operating the CT-1000 at higher temperatures (100 °C to 150 °C). The bath liquid expands as the temperature increases. The CT-1000 bath jar is not designed to contain liquid under pressure. If the bath is overfilled the liquid may overflow.
Bath Operation The various functions controlling the bath are printed at the bottom of the front panel of the CT-1000. These functions, reading from left to right, are listed below, as shown in Figure 18. • Power • Temperature •...
1. Choose a temperature using the Temperature SELECT switch. Preheat switch activates an auxiliary heater for the CT-1000. Turn it to heat up the bath more rapidly, if desired. If the operational temperature is below 120 °C, turn the Preheat switch when the necessary temperature is reached.
2. Turn the Temperature Adjust SELECT switch to the right. Preheat switch activates an auxiliary heater for the CT-1000. Turn it to heat up the bath more rapidly, if desired. If the operational temperature is below 120 °C, turn the Preheat switch when the necessary temperature is reached.
3 °C below the desired bath temperature. Temperature stability below ambient temperature is limited by the flow rate of the coolant. Refer to Figure 20. Figure 20: CT-1000 Rear View Adjust the High Temperature Limit Control Using a screwdriver, slowly turn the...
Troubleshooting Refer to Table 2 for descriptions of problems and their probable causes when operating the CT-1000 constant temperature bath. Table 2: Problem Analysis Problem Probable Cause Power cable is not properly connected to outlet or rear of electrical drawer.
Page 32
Check for normal function of stirring motor and motor limits impellor. Remove control thermistor probe plug and check resistance with an ohmmeter. Call CANNON for proper resistance at bath temperature. Check cooling fan on rear panel. Bath top surface temperature is too high Check cooling fan on top assembly.
Spare Parts List Provided in Table 3 is a list of parts for the CT-1000 which may be ordered from Cannon Instrument Company upon request. Table 3: CT-1000 Spare Parts List Part Number Description 20.1 Pyrex Jar 12 x 12 20.22...
Page 34
Part Number Description 27.5330 Temperature control over 27.5401.1 Level switch 27.6100 CT-1000 Motor stirrer 120V 27.6101 CT-1000 Motor stirrer 240V 27.6121 Sponge support pad 50.82 10 turn dial 27.5271 Heater 700w 240V 51.1433 Lighted rocker switch 240V CT-1000 Instruction Manual...
Company. Reagent and chemical warranty Cannon Instrument Company (“the Company”) warrants all reagents and chemicals sold by the Company and delivered to and retained by their original purchasers to conform to the weight, specifications and standards stated on the package. The Company will, at its sole option, either...
Please contact CANNON before returning a product that could possibly contain hazardous material. Shipping Notification Products returned without CANNON’s prior authorization will not be accepted. The customer may be billed a testing fee if a product is returned to CANNON and found to be working properly. CT-1000 Instruction Manual...
There are some very expensive halogen-based fluids which might be considered, but these also have a high volatility and may be somewhat toxic. CANNON Instrument Company® | Appendix I – Choosing a Temperature Bath Fluid...
Because these oils turn faintly yellow and continue to darken with prolonged exposure to heat, CANNON recommends adding an oxidation inhibitor to retard discoloration. The addition of an inhibitor prolongs the useful life of the oil, but it eventually becomes as dark as untreated oil.
Appendix II – Correct Shaft & Impeller Misalignment Motor-stirrer units supplied by Cannon Instrument Company are checked after assembly to ensure minimum run-out (deviation from concentric rotation) at the impeller end of the shaft. The following instructions are intended to assist in a situation where users are experiencing excessive vibration in the motor-stirrer because of shaft run-out or misalignment of the impeller blades.
Shaft Run-Out Correction The following procedure is suggested to correct shaft run-out. CANNON advises that the impeller is removed from the instrument while carrying out this procedure. 1. Grasp the motor firmly with the left hand and touch the tip of a soft crayon (a glass marking pencil, for example) momentarily to the side of the shaft near the impeller end while the motor is running.
Temperature Adjust FIXED dial at the midpoint ensures maximum adjustment in either direction to establish the desired temperature if additional adjustment is necessary. Refer to Figure 23. Figure 23: Adjusting Potentiometers CANNON Instrument Company® | Appendix III – Adjusting Trimpots (Potentiometers)
Page 42
Temperature SELECT setting, it may not be possible to obtain settings for temperatures that are widely different from those on the Temperature dial. In this case, use the dial to obtain the desired SELECT Temperature Adjust VARIABLE temperature. CT-1000 Instruction Manual...
