Dacor Discovery EG366 Planning Manual

Document # PG04-001
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
A

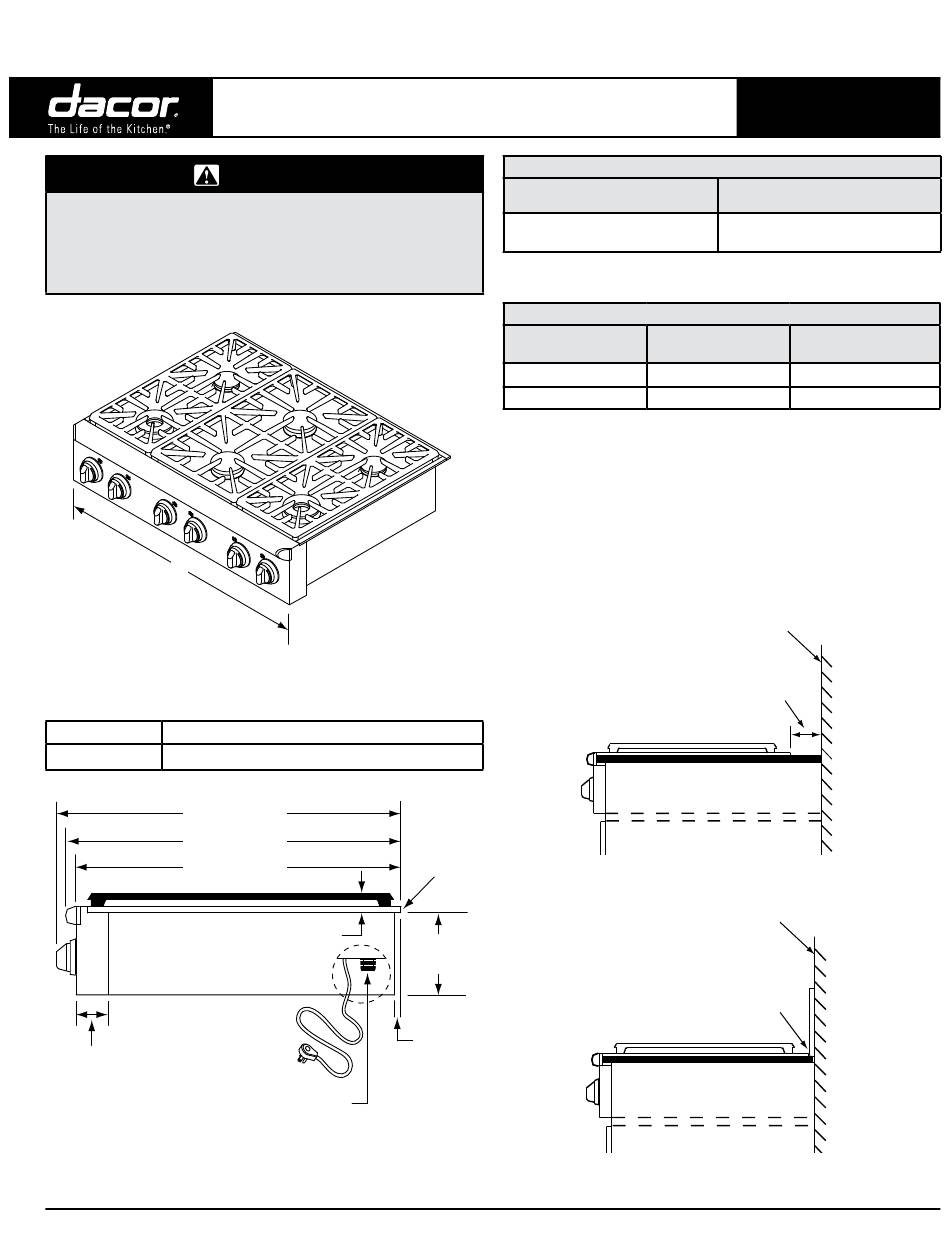

ProDUCt DImENSIoNS - ISo VIEW
EG366
EG486
28" (71.1 cm)
27" (68.6 cm)
26" (66.0 cm)
1 1/2" (3.8 cm) cooking surface
height (grate level) above
countertop
4" (10.2 cm)
3/4" gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2" (5.1 cm) from chassis bottom
ProDUCt DImENSIoNS - SIDE VIEW
All specifications subject to change without notice.
EG366, EG486
Discovery
Slide-in Gas Cooktops
WARNING
A - Width
35 7/8" (91.1 cm)
47 7/8" (121.6 cm)
Power cord
32" long
™ 36" and 48" Wide
Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)
GAS SUPPLy PrESSUrE rEqUIrEmENtS*
Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 psi
IMPORTANT: Installation of a non-combustible material* (up to the hood) or
a backsplash is always recommended, and mandatory if the distance to the
back wall from the cooktop is less than 2 1/2" (Figure 2). When installing a
backguard, use only Dacor model numbers AEB3609, AEB3612 (EG366),
AEB4809 or AEB4812 (EG486).
Trim:
7/16"
(1.1 cm)
thick
CAbINEt/CoUNtErtoP SIDE VIEW WIthoUt bACkGUArD
7 3/4"
(19.7 cm)
5/8"
(1.6 cm)
CAbINEt/CoUNtErtoP SIDE VIEW WIth bACkGUArD
www.dacor.com
Revised 09/27/12 Page 1/4
PLANNING
ELECtrIC CIrCUIt rEqUIrEmENtS
Total Connected Load
0.25 Amp @ 120 Vac, 60 Hz
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (6.4 cm) min. to
combustible rear wall
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
Phone: (800) 793-0093
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
