Tennant B2 Operator's Manual

Tennant B2 Operator's Manual

Litter vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.tennantco.com
Home
Find... Go To..
B2
(Electric)
Litter Vacuum
English EN
Operator Manual
331081
Rev. 02 (10-2008)
*331081

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant B2

Summary of Contents for Tennant B2

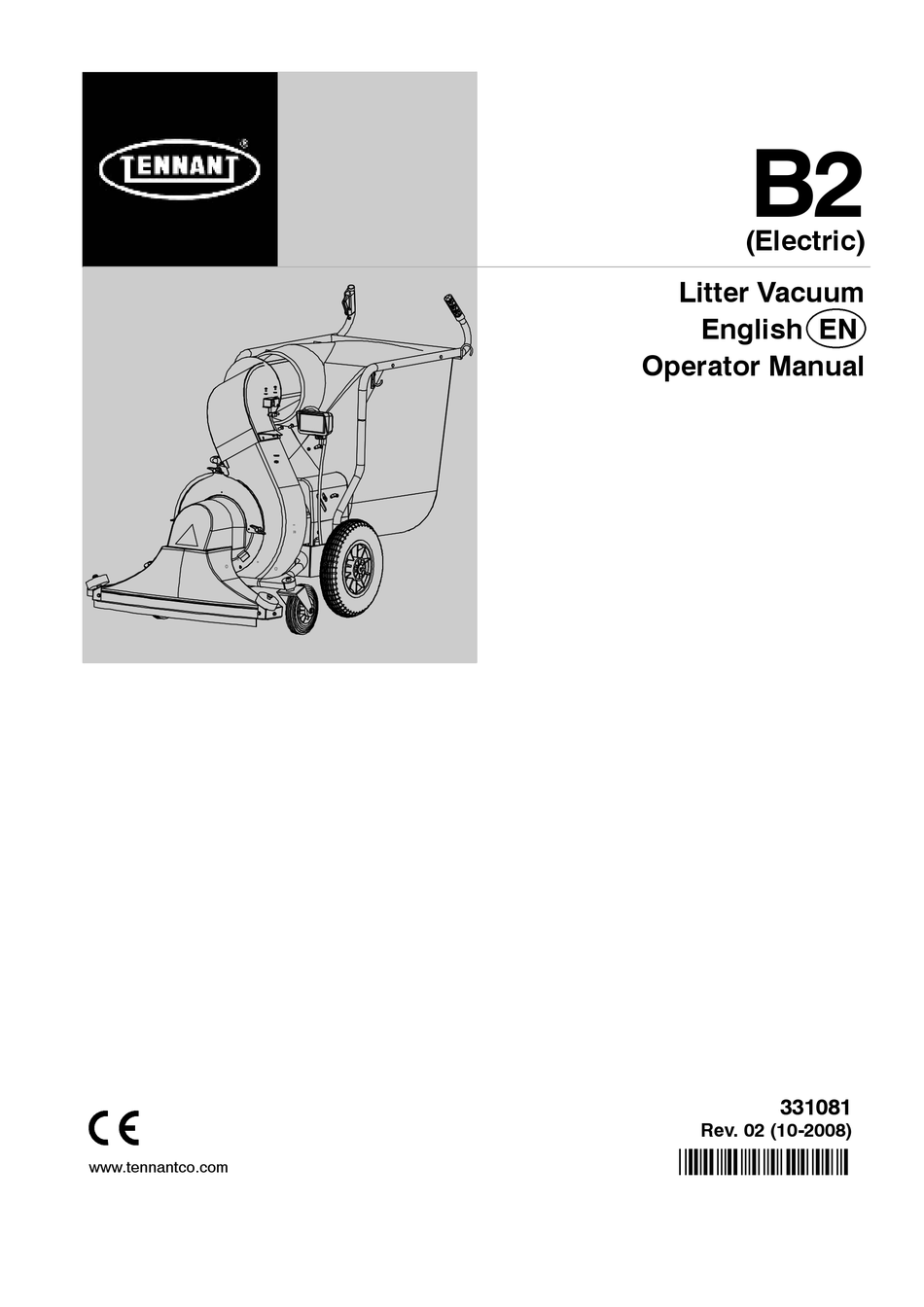

  • Page 1 (Electric) Litter Vacuum English EN Operator Manual 331081 Rev. 02 (10-2008) *331081 www.tennantco.com Home Find... Go To..
  • Page 2 Always remember to recycle. Specifications and parts are subject to change without notice. Original instructions, Copyright E 2004, 2005, 2008 TENNANT, Printed in The Netherlands. Home Find... Go To..

  • Page 3: Table Of Contents

    ..... . . SPECIFICATIONS ......B2 331081 (07- -04) Home Find... Go To..

  • Page 4: Safety Precautions

    Ensure all safety devices are in place and operate properly. Ensure the suction head is free of obstructions. Ensure the bag is empty, dry, clean, and free of dust (for optimal performance). B2 331081 (08- -04) Home Find... Go To..

  • Page 5: Safety Labels

    Bag Attached. These symbols identify controls, displays, and features on the machine. Circuit Breaker #1 Vacuum Hose Activated Parking Brake Release Spot Light Vacuum Head Adjuster Engage Parking Brake Battery/Alternator Charging System B2 331081 (07- -04) Home Find... Go To..

  • Page 6: Machine Components

    6. Bag 17. Vacuum Hose Toggle Switch 7. Worklamp 18. Duct 8. Hand Brake 19. Impeller Housing 9. Fuse Reset Button 20. Microswitch 10. Suction Head Clamps 21. Battery Box 11. Suction Head B2 331081 (08- -04) Home Find... Go To..

  • Page 7: How The Machine Works

    OPERATION HOW THE MACHINE WORKS The B2 litter vacuum machine is designed to pick up and shred debris. The vacuum system sucks the debris up through the suction head and into the impeller, where the debris is shredded, and then deposits the shredded debris into the bag.

  • Page 8: Operating The Machine

    Refer to Fig. 6. NOTE: Squeeze the vacuum trigger only when collecting debris. Prolonged or unnecessary use of vacuum trigger reduces the life of the battery. FIG. 8 FIG. 6 B2 331081 (7- -04) Home Find... Go To..

  • Page 9: Operating The Hand Brake

    2. Loosen neck of bag (and liner, if equipped) from around the duct. Refer to Fig. 10. FIG. 10 3. Open bag (and liner, if equipped) and dump contents into a refuse container positioned underneath the bag. Refer to Fig. 11. B2 331081 (07- -04) Home Find... Go To..

  • Page 10: Installing The Vacuum Hose (Option)

    Refer to Fig. 16. onto the machine. Refer to Fig. 13 and Fig. 14. FIG. 16 FIG. 13 4. Switch the vacuum switch OFF when through collecting debris. FIG. 14 B2 331081 (7- -04) Home Find... Go To..

  • Page 11: Charging Batteries

    The electrolyte level (A) should slightly cover the battery plates (B). Add distilled water as needed. DO NOT OVERFILL, the fluid may expand and overflow while charging. Replace cell caps before charging. Refer to Fig. 18. B2 331081 (07- -04) Home Find... Go To..
  • Page 12 7. Lead Acid Batteries: After charging, check the electrolyte level (A) again. The level should be approximately 1 cm from the bottom of the fill--port (B) (Figure 20). Add distilled water if needed. DO NOT OVERFILL. FIG. 20 B2 331081 (7- -04) Home Find... Go To..

  • Page 13: Machine Maintenance

    Ensure the charger is operational. 1. Remove suction head and inspect the impeller for damage. Replace impeller if it is damaged. Ensure the batteries have been properly maintained. If necessary, replace batteries. B2 331081 (07- -04) Home Find... Go To..

  • Page 14: Specifications

    Item Dimensions Batteries 3 x 12VDC 44AH Charger BC1 36V8A MF SB50G Wet Bag Dry Bag Liner Bag Broom OPTIONAL ITEMS Item Dimensions Vacuum Hose 2500 mm long x 140 mm O/D B2 331081 (10- -08) Home Find... Go To..
