3220

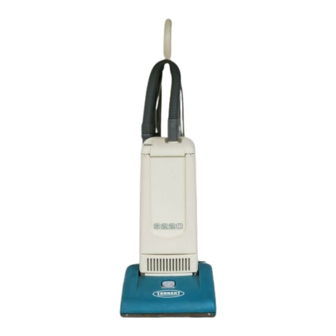

Upright Vacuum Cleaner

Operator and Parts Manual
Rev. 01 (01-00)
607881

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3220 607876 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 3220 607876

Summary of Contents for Tennant 3220 607876

  • Page 1: Upright Vacuum Cleaner

    3220 Upright Vacuum Cleaner Operator and Parts Manual Model No.: 607876 – 120V 609575 – 230V TENNANT COMPANY Commercial Products 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 607881 FAX: 1–800–678–4240 Rev. 01 (01-00) CUSTOMER SERVICE: 1–800-982–7658 Home Find... Go To..

  • Page 2: Parts List

    PARTS LIST BAG HOUSING GROUP Tennant 3220 (06–99) Home Find... Go To..
  • Page 3 DFILTER, VAC MOTOR (SECONDARY) 140879 SCREW, 6-32X3/4 (230V/240V ONLY) 604842 DCORD, 18/3 X 40' GRAY (120 VOLT) 606694 SCREW, M4X.7X8 600398 DCORD, 3 X 1 x 12M (230V/240V) ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Tennant 3220 (06–99) Home Find... Go To..

  • Page 4: Vacuum Motor Housing Group

    PARTS LIST VACUUM MOTOR HOUSING GROUP Tennant 3220 (03–99) Home Find... Go To..
  • Page 5 HARNESS, LOWER WIRE 604826 INLET PLATE, VAC MOTOR 605080 GASKET, INLET PLATE ASSEMBLY 607006 SCREW, M4X.7X12 INCLUDED IN ASSEMBLY 606732 GASKET, UPPER CLAMP PLATE D RECOMMENDED STOCK ITEMS 608067 COVER, EXHAUST FILTER, OFF WHITE Tennant 3220 (06–99) Home Find... Go To..

  • Page 6: Brush Base Group

    PARTS LIST BRUSH BASE GROUP Tennant 3220 (03–99) Home Find... Go To..

  • Page 7: Optional Attachment Kit

    PULLEY, MOTOR (DOUBLE "V") 604811 KNOB, HT. ADJUSTMENT 130398 DMOTOR, BRUSH DRIVE 120 VOLT 607766 BASE, TEAL 130399 DMOTOR, BRUSH DRIVE 230V/240V 120210 DECAL, TENNANT" 604803 DBRUSH ASM. 039708037 DSWITCH, ON/OFF ROCKER 230348 PULLEY, BRUSH (DOUBLE "V") 605010 DASM., VAC HOSE 230349...

  • Page 8: Wire Diagram

    MOUNTING PLATE CONTROL SENSOR BOARD SYSTEM LIGHT CONTROL BOARD MOUNTING BRACKET BRUSH MOTOR INTERRUPT SWITCH BRUSH MOTOR BRUSH BASE PLATE VACUUM MOTOR BRUSH MOTOR INTERRUPT SWITCH BRUSH MOTOR BRUSH BASE PLATE VACUUM MOTOR Tennant 3220 (03–99) Home Find... Go To..
