Page 1
INSTRUCTIONS BEFORE STARTING UP THE VACUUM CLEANER. KEEP THIS MANUAL OF INSTRUCTIONS ALWAYS IN EVIDENCE FOR A RAPID CONSULTATION. SAVE CAREFULLY THE PRESENT HANDBOOK. 9001233 Rev. 00 (11-04) TENNANT N.V. Industrielaan 6 5405 AB P.O. Box 6 5400 AA Uden-The Netherlands europe@tennantco.com www.tennantco.com...
Page 2

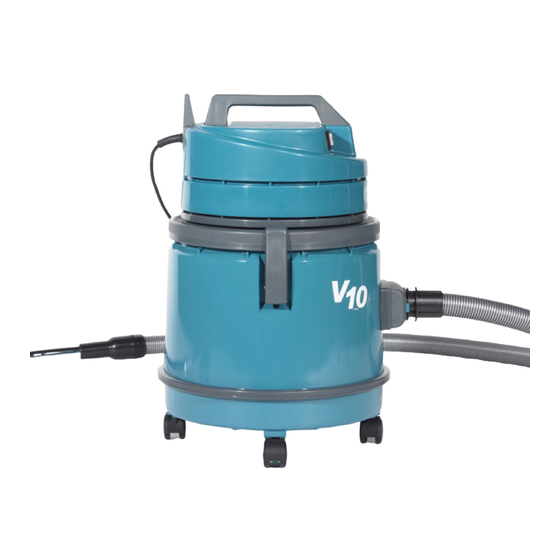

Tennant V10 N.B. Drawings above reported are merely indicative. OPTIONAL DESCRIPTION AND ASSEMBLY Round brush. Motor block. Flat lance. Switch. Paper bag (on request) to fit directly Float: its purpose is to avoid that on the suction inlet. Its use does not...
Page 3
Tennant V10 DRY CLEANING LIQUID SUCTION OPERATING INSTRUCTION OPERATING INSTRUCTION Insert the cloth filter in the tank (Fig. 1). Remove the cloth filter bag (Fig. 2). Assembly the head on tank and block it by Assembly the head on tank and block it by hooks (Fig.
Page 4
Tennant V10 Technical data Description Voltage 220-240 Frequency 50/60 Rated Power 1000 Depression mbar 2200 Air Flow Height Length Width Dust Capacity of Bag 25.2 Sound level dB(A) EN 60704-1 (1996) EN 60704-2-1 (2000) Mass (without accessories) ISO 3744 (1994) INSTRUCTIONS TO BE STRICTLY FOLLOWED cable rating is suitable for use with equipment.
