PATCHWORK BlackBox 505 Quick Start Manual

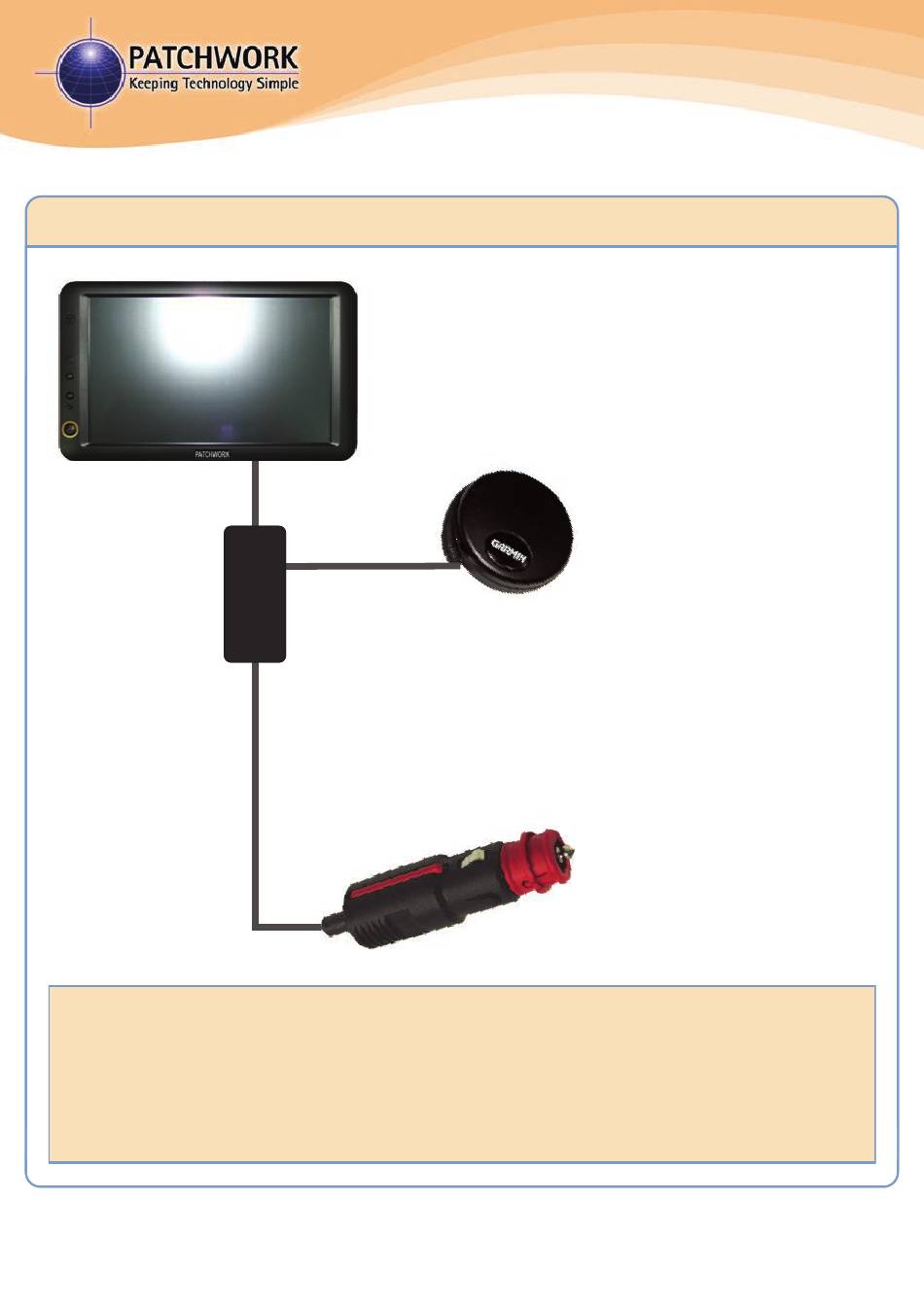

Installing the Unit

Warranty Void if suction mount fails !!

is removed from the windscreen when the unit is not in operation and

reattached on a day to day basis.

For a more permanent fixing please detach the ram ball from the suction mount and

secure down in the vehicle.

– Please disconnect the unit from the power

Warning

supply, if you need to jump start your vehicle.

Mount to the windscreen using suction

mount and ram arm

- Its is advised that the suction mount

BlackBox 505

Quick Start Guide

Magnetic Receiver

Install on the roof of the

vehicle (if the roof is not

metal use the roof

mount plate).

12v DC Plug

To cigarette lighter socket

on vehicle.

PWdoc0007 rev.2.3

Table of Contents

Do you have a question about the BlackBox 505 and is the answer not in the manual?

Page 1 BlackBox 505 Quick Start Guide Installing the Unit Guidance Screen Mount to the windscreen using suction mount and ram arm Magnetic Receiver Install on the roof of the vehicle (if the roof is not metal use the roof mount plate).
Page 2 Unit Functions Power On/Off button – This Touch Screen turns the screen on and off, providing the tilt correction unit is switched on. Brightness button – Press this button to scroll through different levels of brightness for the display screen Touch Screen –...
Page 3 Guidance Screen Start/Pause Zoom In Boundary Close Zoom Reset Boundary Steering Zoom Out Status Recording Menu On/Off Information Panel Guidance Status Speed GPS Strength Application Rate Coverage Area Distance Travelled Measuring the Area of a Field 1) After starting a new job, position the vehicle near to edge of the field that the field boundary map will start from and press the Start/Pause Boundary button.
Page 4 Setting and Using a Guidance Line 1) Position the vehicle in the field where the job will begin. (When using a curved line it is important to use the longer edge of the field to set a guide line). 2) At the beginning of a straight run press Grid area Grid area...
