PATCHWORK BlackBox Installation Manual

Hide thumbs Also See for BlackBox:

Download this manual

Contents

Attaching the External Antenna

Run the cable into vehicle cab, if going through a window or door please make sure that there

is enough of a gap in the rubber to allow this, otherwise the cable could be damaged and with

no signal from the antenna the BlackBox will not function correctly.

– Please disconnect the unit from the power

Warning

supply, if you need to jump start your vehicle.

Attach the antenna to the roof of the vehicle,

positioned centrally across the vehicles width.

For non metal roofs use the supplied metal plate

by firstly cleaning the area and ensuring it is dry,

then remove the plastic covers from the self

adhesive strips on the metal plate and stick to the

vehicle roof. The antenna can be attached to this

plate and be held safely on the roof.

Installation Guide

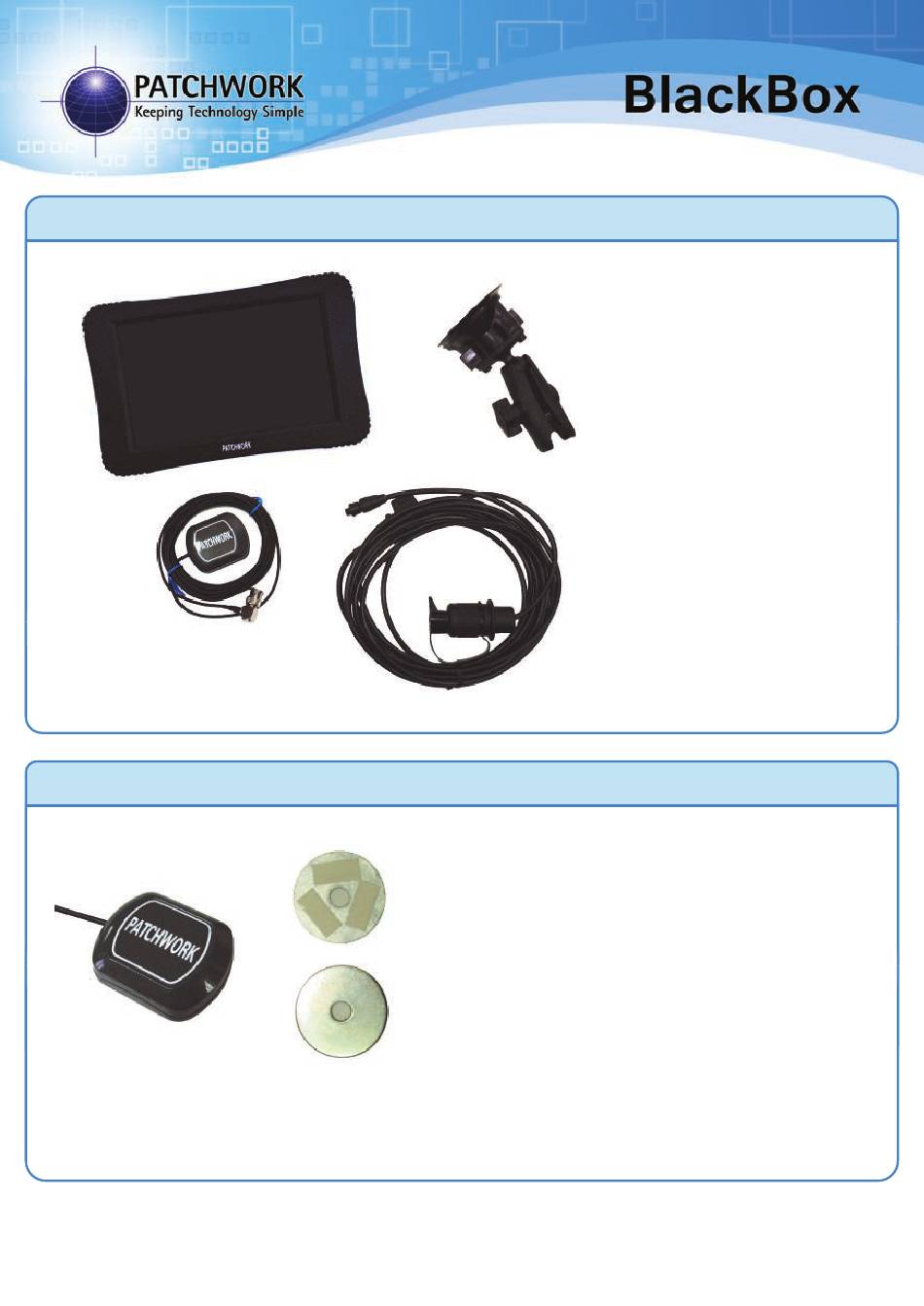

1) BlackBox Unit with SD card

2) Antenna

3) Power Lead

4) Ram arm and mount

PWdoc0007 rev.2.3

PWdoc0047 v1.2

Need help?

Do you have a question about the BlackBox and is the answer not in the manual?

Page 1 Run the cable into vehicle cab, if going through a window or door please make sure that there is enough of a gap in the rubber to allow this, otherwise the cable could be damaged and with no signal from the antenna the BlackBox will not function correctly. – Please disconnect the unit from the power Warning supply, if you need to jump start your vehicle.
Page 2 Fitting in the Vehicle 1) Attach the RAM arm to the ball on the 2) Connect the antenna plug to the back of the BlackBox unit. connector of the unit. 3) Plug and screw in the power lead 4) Push the suction mount on to the windscreen and turn the lever from the connector.
Page 3 See above diagram for connections. Description Part No. Boom Sense Cable 03-05-0015 The BlackBox will need to be configured to work Switch (request when ordered) correctly with the switch, for details see Ports Setup Relay (request when ordered) menu ‘On/Off’ in the Operating Instructions.
Page 4 Patchwork are continually improving the BlackBox software through improved usability and adding new features. The updates are free to BlackBox users and can be obtained by taking the SD Card supplied with the unit, to a computer with internet access. Using an internet browser go to www.patchwork.co.uk/support_updates_blackbox.aspx and follow the...
