Billi XI Font Installation Manual

Proud & flush mount
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Installation guide
XI Font – Proud & Flush Mount

Advertisement

loading
Need help?

Need help?

Do you have a question about the XI Font and is the answer not in the manual?

Questions and answers

Related Manuals for Billi XI Font

Summary of Contents for Billi XI Font

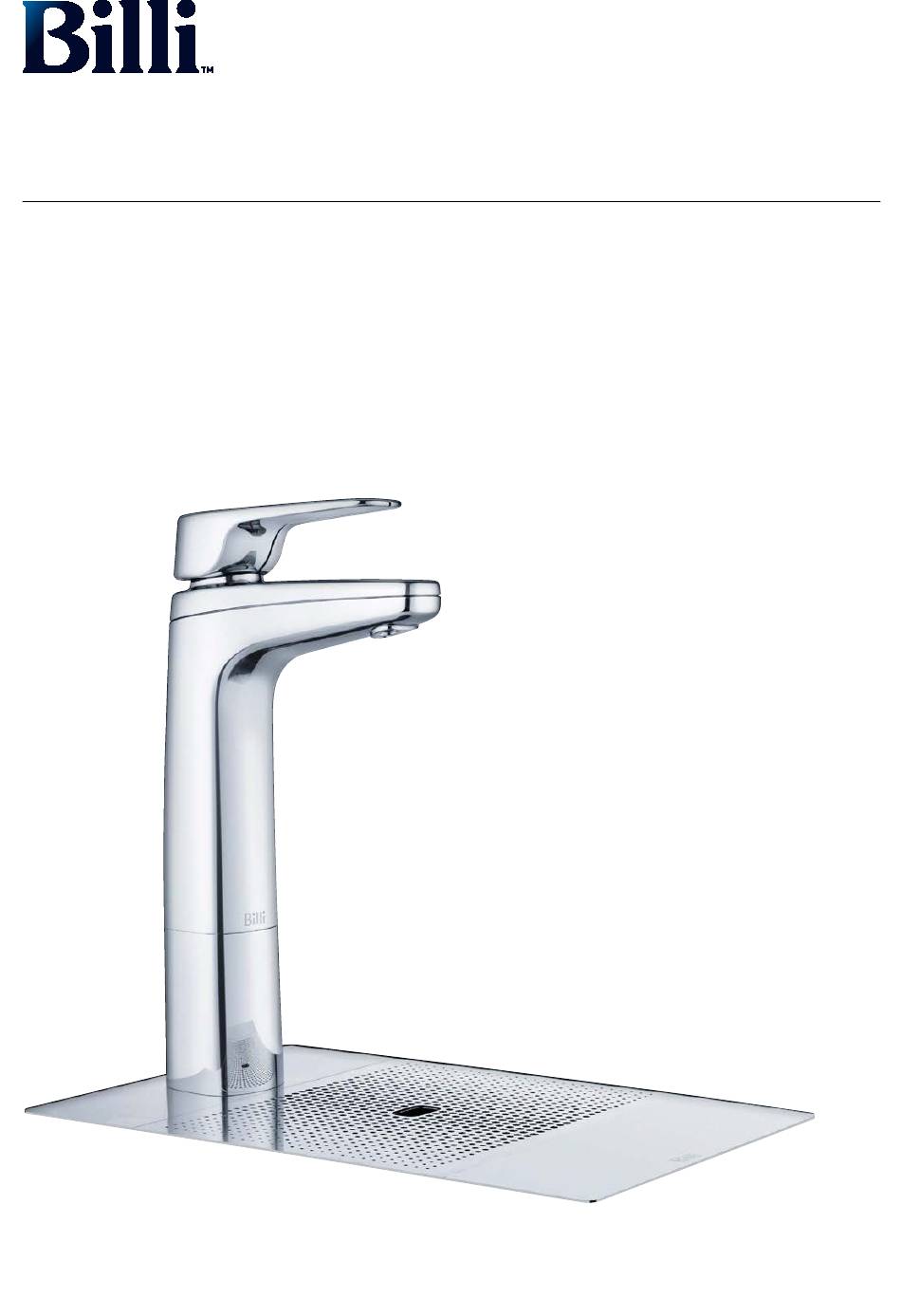

  • Page 1 Installation guide XI Font – Proud & Flush Mount...

  • Page 2: Installation Requirements

    Installation requirements. Proud & Flush Mount Components included Before commencing installation, ensure Font tray you have identified the following pieces: 1. Spill tray 2. Font cover plate set 1 set (3 piece) 3. Mount riser – chrome M4 studs – 3 x 74mm 5.

  • Page 3: Installation Procedure

    Installation procedure. Proud Mount 1. Marking and Drilling Holes straight ahead position. Fit M4 x 10mm a. Cut the template out and place template retaining screw rear threaded hole and in appropriate position. Check underneath tighten with benchtop for possible obstructions such Allen Key supplied.
  • Page 4 Installation procedure. Proud Mount Hole Cut-Out Dimensions Before using check dimensions – See Template for actual size, are accurate. TOP VIEW EXPLODED DIAGRAM Riser D Washer Font Not to scale Bench 172mm FRONT Bench Diagram 7a Diagram 7b...
  • Page 5 Installation procedure. Flush Mount 1. Marking and Drilling Holes whilst gently pulling tubing downwards a. Cut the template out and place template from underneath. Dispenser mounting in appropriate position. Check underneath lugs will pass over and slide down the 3 benchtop for possible obstructions such grooves on the swivel bearing.
  • Page 6 Installation procedure. Hole Cut-Out Dimensions Before using check dimensions Flush Mount – See Template for actual size, are accurate. TOP VIEW 191.0mm 174.0mm 8.5mm Font cut out: 174mm (wide) x 274mm (long) Rebate cut: 5.5mm (deep) 191mm (wide) x 291mm (long) Corner Radius: 5mm Tolerance: +/- 0.2mm EXPLODED DIAGRAM...
  • Page 8 If any problems or difficulties arise contact Billi Australia Pty Ltd: Phone 1800 812 321 (Free call). To validate your warranty refer to the warranty card or validate online at www.billi.com.au For information on our filtration and service contracts please contact Billi Customer Service on 1800 812 321 or service@billi.com.au.
