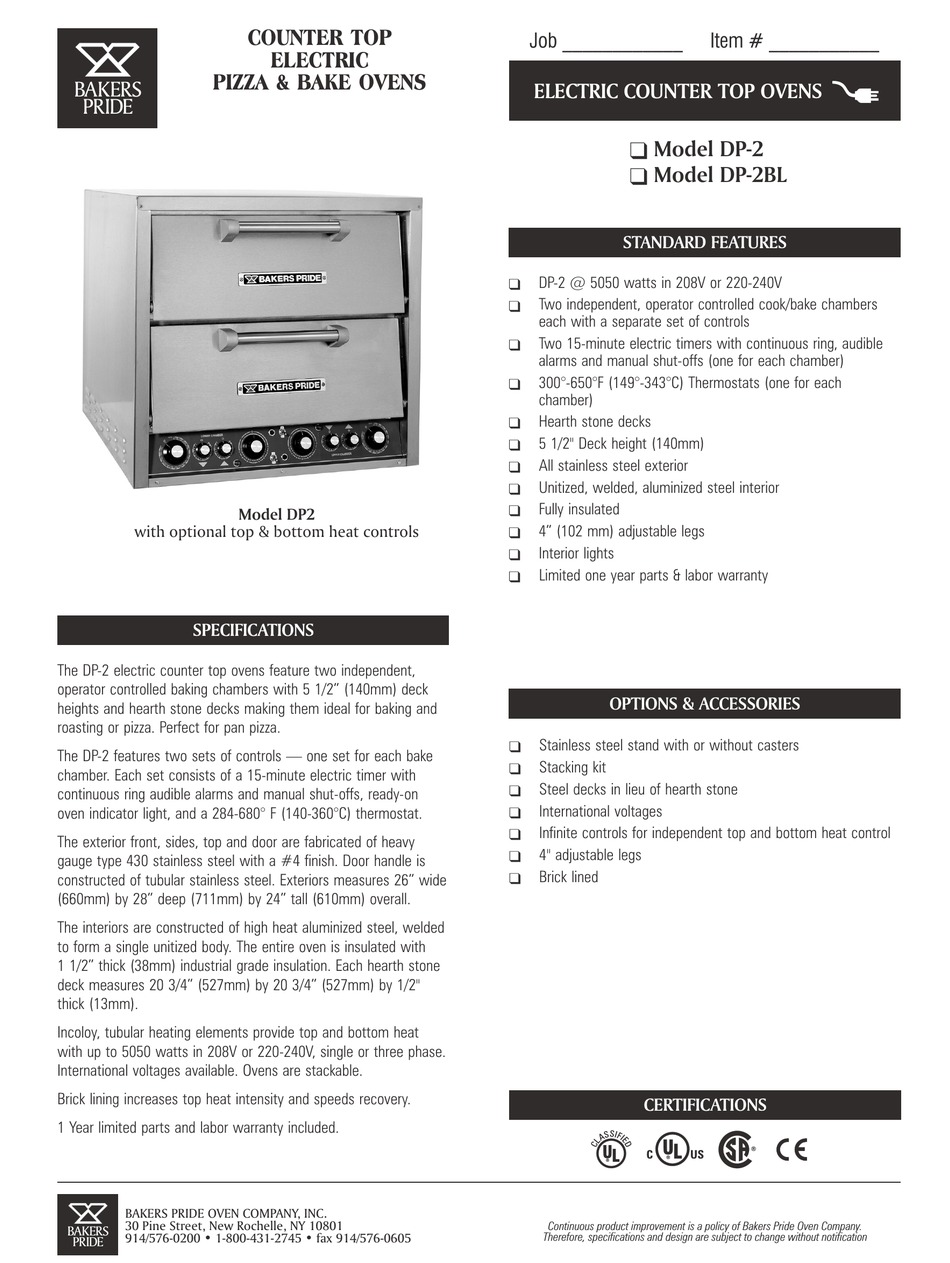

Bakers Pride DP-2BL Specifications

PIZZA & BAKE OVENS
BAKERS
PRIDE
Model DP2
with optional top & bottom heat controls
SPECIFICATIONS
The DP-2 electric counter top ovens feature two independent,
operator controlled baking chambers
heights and hearth stone decks making them ideal for baking and
roasting or pizza. Perfect for pan pizza.
The DP-2 features two sets of controls — one set for each bake
chamber. Each set consists of a 15-minute electric timer with
continuous ring audible alarms and manual shut-offs, ready-on
oven indicator light, and a 284-680° F (140-360°C) thermostat.
The exterior front, sides, top and door are fabricated of heavy
gauge type 430 stainless steel with a #4 finish. Door handle is
constructed of tubular stainless steel. Exteriors measures 26" wide
(660mm) by 28" deep (711mm) by 24" tall (610mm) overall.
The interiors are constructed of high heat aluminized steel, welded
to form a single unitized body. The entire oven is insulated with
1 1/2" thick (38mm) industrial grade insulation. Each hearth stone
deck measures 20 3/4" (527mm) by 20 3/4" (527mm) by 1/2"
thick (13mm).
Incoloy, tubular heating elements provide top and bottom heat
with up to 5050 watts in 208V or 220-240V, single or three phase.
International voltages available. Ovens are stackable.
Brick lining increases top heat intensity and speeds recovery.
1 Year limited parts and labor warranty included.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
COUNTER TOP
ELECTRIC
with 5 1/2" (140mm) deck
Job ____________
ELECTRIC COUNTER TOP OVENS
Model DP-2
q
Model DP-2BL
q
STANDARD FEATURES
DP-2 @ 5050 watts in 208V or 220-240V
q
Two independent, operator controlled cook/bake chambers
q
each with a separate set of controls
Two 15-minute electric timers with continuous ring, audible
q
alarms and manual shut-offs (one for each chamber)
300°-650°F (149°-343°C) Thermostats (one for each
q
chamber)
Hearth stone decks
q
5 1/2" Deck height (140mm)
q
All stainless steel exterior
q
Unitized, welded, aluminized steel interior
q
Fully insulated
q
4" (102 mm) adjustable legs
q
Interior lights
q
Limited one year parts & labor warranty
q
OPTIONS & ACCESSORIES
Stainless steel stand with or without casters
q
Stacking kit
q
Steel decks in lieu of hearth stone
q
International voltages
q
Infinite controls for independent top and bottom heat control
q
4" adjustable legs
q
Brick lined
q
CERTIFICATIONS
U L
U L
C US
®
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
®
