Bakers Pride D-125 DSP Single Specifications

SUPER DECK
D-DSP SERIES
BAKERS
GAS DECK OVENS
PRIDE

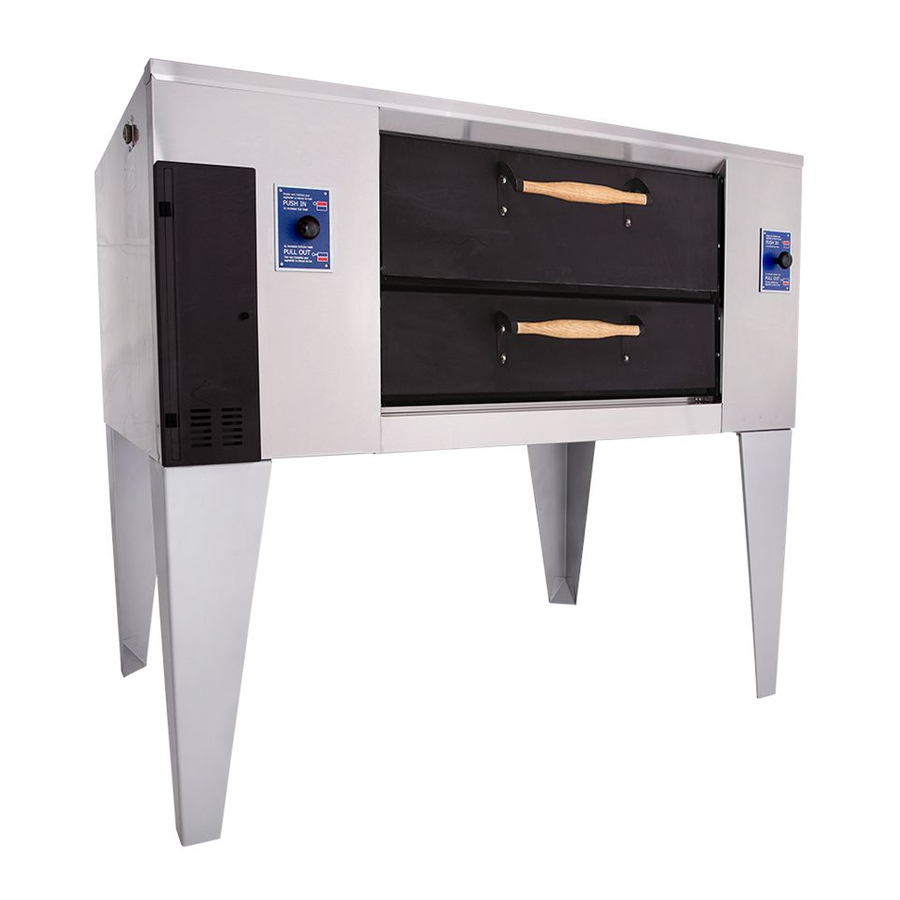

D-125 DSP
shown without top riser
and without skirts
SPECIFICATIONS
BAKERS PRIDE D Series DSP Deck Ovens are ideal for display
cooking and exhibition kitchens. These ovens are designed and
engineered to be "built-in" behind brick stone or tile applied directly
to ovens exterior or finished and trimmed in brass, copper, stainless
or powder-coated trim.
Ovens may be stacked two high. Oven exteriors are all heavy-
gauge, type 403 stainless steel and are fully insulated up to 5"
(127mm) thick for cooler outer temperatures and consistent interior
temperatures.
Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle
iron frame, completely welded to form a single, unitized section.
The oven body and lining are then welded to the framework.
Oven interiors are manufactured of high-heat resistant 16-gauge
aluminized steel. Doors are fully insulated, spring balanced to
remain open or closed until moved and are finished in black powder
coat with hard wood handles.
All models feature independent, operator-controlled top & bottom
heat control dampers and micro slides for perfectly balanced
results.
D Series features a 300°-650° F (149°-343°C)
10 3/4" (273mm) interior deck height with
hearth stone decks (steel decks optional) and are supported by a
1/4" (6mm) angle iron frame.
Combination gas control incorporates a manual gas valve, safety
pilot and pressure regulator. Easily removable, slide-out, heavy-duty
flame diverters distribute the burner flame uniformly in the burner
chamber. A 3/4" (19mm) NPT gas connection is located on the left
side and left rear of oven - operator/installer may choose.
Heavy-duty, 7-gauge hot rolled steel legs are standard and finished
with durable Bakertone gray paint.
2 Year limited part and labor warranty standard.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
10"
INTERIOR
DECK HEIGHT
throttling thermostat,
1 1/2" (38mm) thick
Job ____________
GAS DECK OVENS
Model D-125 DSP Single
q
Model D-250 DSP Double
q
STANDARD FEATURES
D Series @ 125,000 BTUH per deck natural gas or 105,000
q
BTUH in LP gas (LP gas not CE certified)
300°-650° F (149°-343°C) throttling thermostat
q
Top & bottom heat control dampers & micro-slides
q
Combination gas controls with valve, regulator & safety pilot
q
Heavy-duty, slide-out flame diverters
q
10 3/4" (273mm) interior deck heights with 1 1/2" (38mm)
q
thick stone hearth decks
All stainless steel exteriors
q
Aluminized steel interiors
q
Spring balanced, fully insulated doors finished in black powder
q
coat with custom hard wood handles or stainless steel with
tubular steel handles
Front or side mounted controls with large, hinged access
q
cover in black powder coat or stainless steel
Riser top - removable for field installation
q
Front & side skirts
q
Left side or rear gas connections on models with front
q
mounted controls - rear gas connection only on models with
side mounted controls
7-Gauge legs
q
Fully insulated throughout
q
2 Year limited part and labor warranty
q
OPTIONS & ACCESSORIES
Steel decks
q
150°-550° F (65°-288°C) bake thermostat
q
Set of 4 casters - two with locks - not for use with skirts
q
Stainless steel leg covers
q
Special height legs
q
Automatic oven starter
q
Draft flue for direct vent (not available on CE units)
q
Black powder coated doors with hard wood handles
q
Black powder coated hinged control access door panel
q
Without dome and/or without skirts
q
CERTIFICATIONS
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
CERTIFIED
