Rinnai Slimfire Zero Clearance Box Instructions

RINNAI SLIMFIRE Zero Clearance Kit
If the heater is to be installed into a combustible opening,
the Rinnai Zero Clearance Kit ZEROS must be used.
Parts included in the Zero Clearance kit are:
1 Top panel
1 Base panel
2 Side panels
1 Rear panel
1 Flue adaptor
2 Base support runners
1 Plinth
1 pkt screws
1 Slip Socket

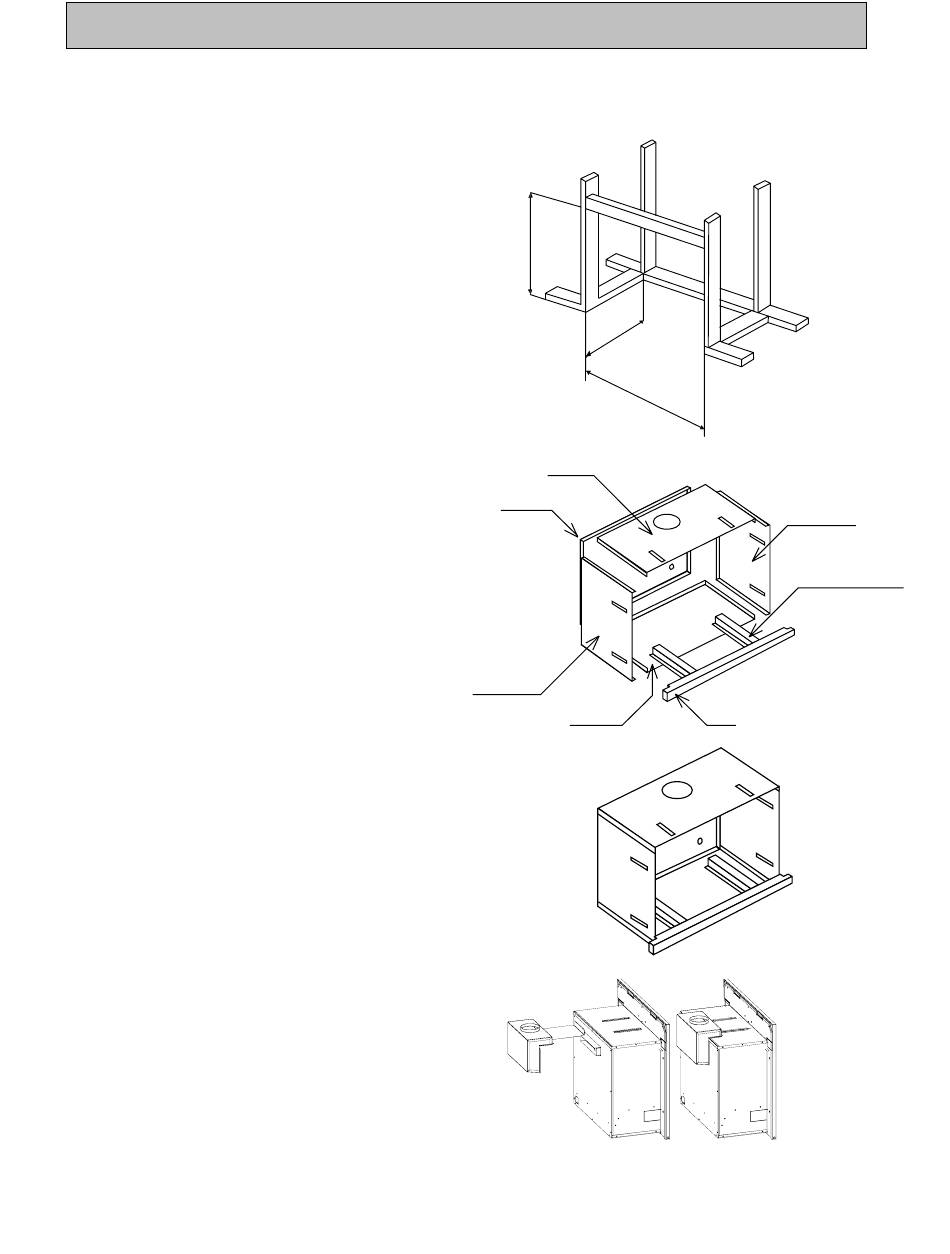

Build frame as set out in (Fig.1).

Lay the base panel on the floor with return fold upward.
Stand side panels on the outside of the base panel
with the securing fold to the front as shown in (fig.2).
Slide rear panel between side panels, ensuring that the
gas inlet hole is in the bottom right-hand corner.
Place the top panel with the return fold forward, with
the flue outlet to the rear.
The Zero Clearance Box should now be stable enough
on its own to secure the self-tapping screws in the
holes provided. (Fig. 3)
Run the gas line to the appropriate position.
The Zero Clearance Box can now be secured to the
framing using the holes provided.
Securely connect the flue adaptor to the rear of the
slimfire heater (Fig.4).
Slimfire 25 Zero Clearance Box
675 mm
370 mm
685 mm
Top Panel
Rear Panel
L/H Side Panel
Base Panel
1
Fig.1
R/H Side Panel
Base Support Runners
Fig.2
Plinth
Fig.3
Fig.4
10/06/2003
