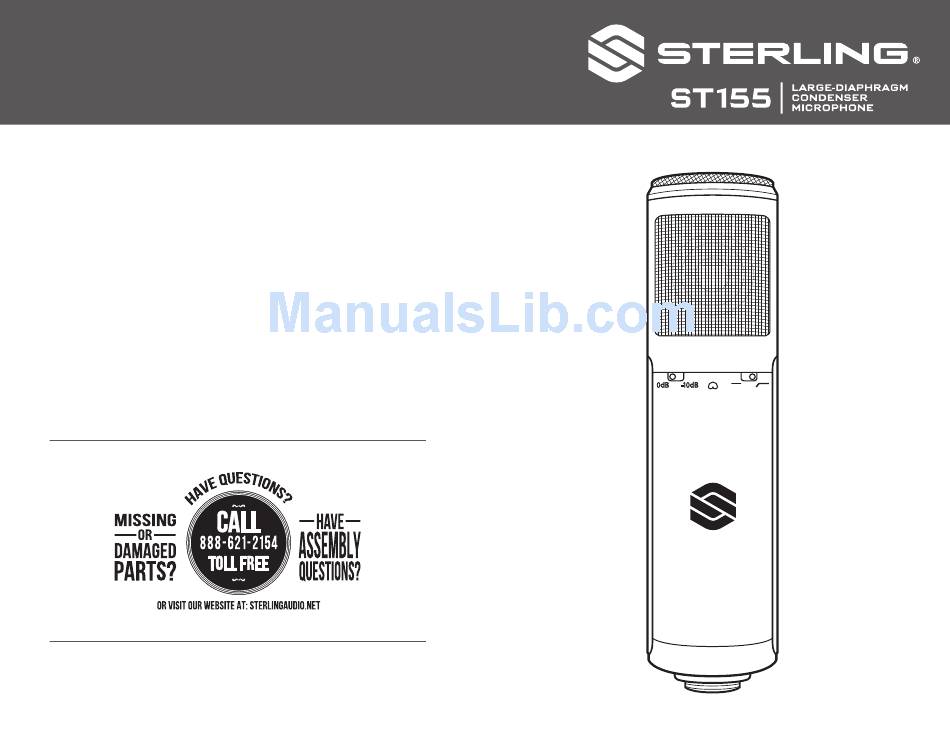

OWNER'S MANUAL
ST1 55
Large-Diaphragm Condenser Microphone

PRODUCT SPECIFICATION

Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class A FET
Polar Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20–20kHz
Switchable Hi-Pass Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Hz, 12dB/octave
Switchable Attenuation Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –10dB
Maximum SPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144dB (134dB without pad)
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32mV/Pa
Equivalent Noise Level A-Weighted . . . . . . . . . . . . . . . . . . . . . . . . . . .22dB SPL
Typical Load Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >1000 Ω
Output Source Impedance . . . . . . . . . . . . . . . . . . . . 200 Ω Transformer Isolated
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . +48V Phantom Power Required
Microphone Dimensions . . . . . . . . . . . . . . . . . . . . . 7 .7" long 1 .9" max diameter
Microphone Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .2 lbs .
Included Accessories . . . . . . . . . . . . . . . . . SM8 Shock Mount, Aluminum Case
RECORDING TIPS: www.sterlingaudio.net
Sterling Audio
P .O . Box 5111
Thousand Oaks, CA 91359-5111
1704-16136387

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST155 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sterling ST155

Summary of Contents for Sterling ST155

  • Page 1 Included Accessories . . . . . . . . . . . . . . . . . SM8 Shock Mount, Aluminum Case RECORDING TIPS: www.sterlingaudio.net Sterling Audio P .O . Box 5111...
  • Page 2 FRONT BACK -10dB Pad Reduces volume: Set to -10dB only if source is too loud for your preamp . Low Cut (-12dB/octave @ 75Hz) Reduces very low frequencies: Set to except for bass, kick drum or similar sources . SM8 Shock Mount Front-address Cardioid Face logo side toward source .
