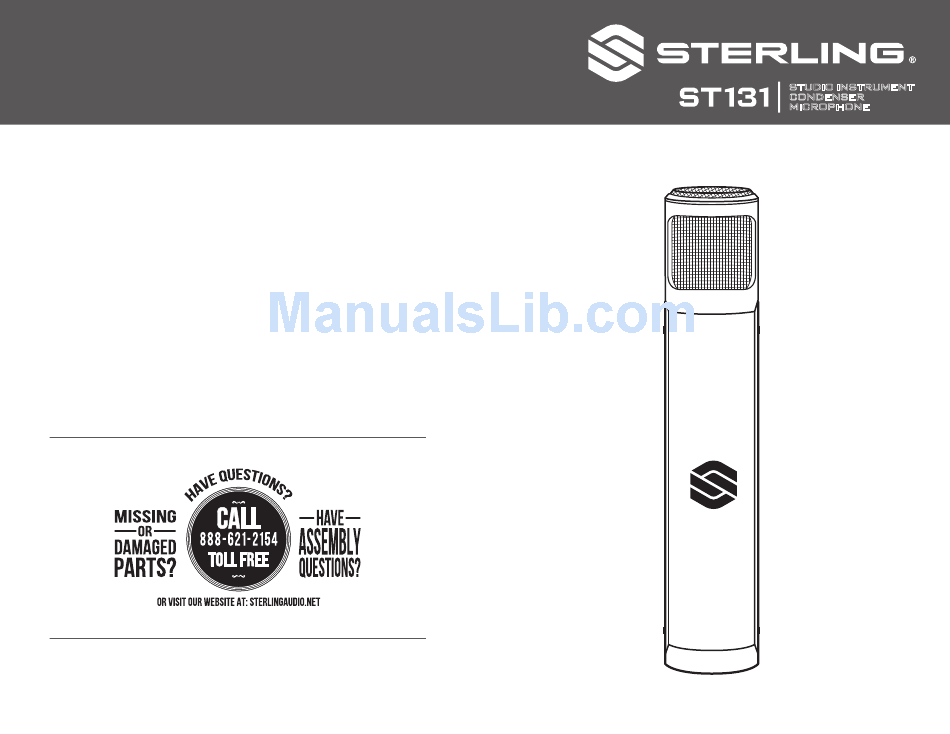

Sterling ST131 Owner's Manual

Studio instrument condenser microphone

ST1 3 1

Studio Instrument Condenser Microphone

PRODUCT SPECIFICATION

Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Low Noise FET

Polar Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Hyper Cardioid

Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-20kHz

Switchable Hi-Pass Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Hz, 12dB/octave

Switchable Attenuation Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10dB

Maximum SPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146dB (136dB without pad)

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mV/Pa

Equivalent Noise Level A-Weighted . . . . . . . . . . . . . . . . . . . . . . . . . . .28dB SPL

Typical Load Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >1000 Ω

Output Source Impedance . . . . . . . . . . . . . . . . . . . . . . . .200 Ω Transformerless

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . +48V Phantom Power Required

Microphone Dimensions . . . . . . . . . . . . . . . . . . . . 6 .9" long, 1 .4" max diameter

Microphone Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 .8 oz .

Included Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HM-4 Hard Mount

RECORDING TIPS: www.sterlingaudio.net

Sterling Audio

P .O . Box 5111

Thousand Oaks, CA 91359-5111

1704-16136387

STUDIO INSTRUMENT

CONDENSER

MICROPHONE

OWNER'S MANUAL

Table of Contents

Do you have a question about the ST131 and is the answer not in the manual?

Page 1 Included Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HM-4 Hard Mount RECORDING TIPS: www.sterlingaudio.net Sterling Audio P .O . Box 5111...
Page 2 SM5 Shock Mount – Sold separately Reduces very low frequencies: set to except for bass, kick drum or Isolates your Sterling small diaphragm mic from noise due to vibrations similar sources . received through mic stands . Phantom Power (48v) Required These mics require phantom power from your preamp, audio interface or mixer .
