ST1 69

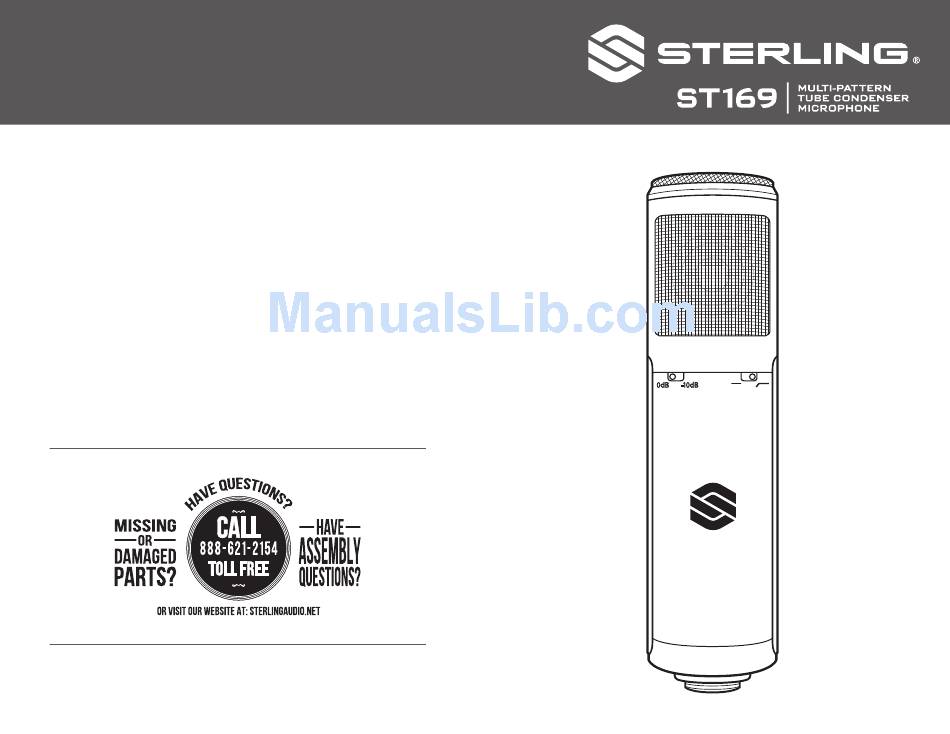

OWNER'S MANUAL
Multi-Pattern Tube Condenser Microphone
PRODUCT SPECIFICATION
Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class A Tube
Polar Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid, Omni, Figure-8
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20–20kHz
Switchable Hi-Pass Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Hz, 12dB/octave
Switchable Attenuation Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –10dB
Maximum SPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142dB (132dB without pad)
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32mV/Pa
Equivalent Noise Level A-Weighted . . . . . . . . . . . . . . . . . . . . . . . . . . .22dB SPL
Typical Load Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >1000 Ω
Output Source Impedance . . . . . . . . . . . . . . . . . . . . 200 Ω Transformer Isolated
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . Included PSM169 Power Supply
Microphone Dimensions . . . . . . . . . . . . . . . . . . . . 7 .7" long, 1 .9" max . diameter
Microphone Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .2 lbs
Included Accessories . . . . . . . . . . . . SM8 Shock Mount, EC7 7-pin XLR Cable,
Power Cord, PSM169 Power Supply, Aluminum Case
RECORDING TIPS: www.sterlingaudio.net
Sterling Audio
P .O . Box 5111
Thousand Oaks, CA 91359-5111
1704-16136387
Advertisement
Table of Contents
Related Manuals for Sterling ST169
Summary of Contents for Sterling ST169
- Page 1 Included Accessories . . . . . . . . . . . . SM8 Shock Mount, EC7 7-pin XLR Cable, Power Cord, PSM169 Power Supply, Aluminum Case RECORDING TIPS: www.sterlingaudio.net Sterling Audio P .O . Box 5111 Thousand Oaks, CA 91359-5111...
- Page 2 FRONT BACK -10dB Pad Reduces volume: Set to -10dB only if source is too loud for your preamp . Low Cut (-12dB/octave @ 75Hz) Reduces very low frequencies: Set to except for bass, kick drum or similar sources . SM8 Shock Mount Polar Pattern Selector Determines whether audio is primarily captured from Mic end threads into mount: secure mic by spinning dial at bottom of...
