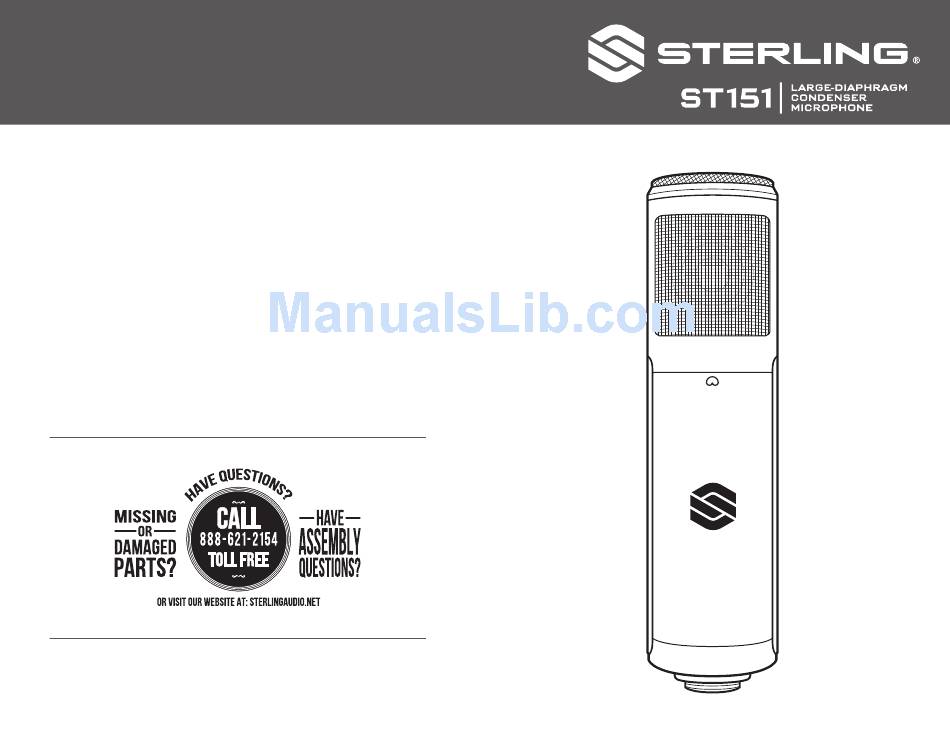

ST1 5 1
OWNER'S MANUAL
Large-Diaphragm Condenser Microphone
PRODUCT SPECIFICATION
Circuit Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class A FET
Polar Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20–20kHz
Maximum SPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134dB
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30mV/Pa
Equivalent Noise Level A-Weighted . . . . . . . . . . . . . . . . . . . . . . . . . . .22dB SPL
Typical Load Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >1000 Ω
Output Source Impedance . . . . . . . . . . . . . . . . . . . . 200 Ω Transformer Isolated
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . +48V Phantom Power Required
Microphone Dimensions . . . . . . . . . . . . . . . . . . . . 7 .7" long, 1 .9" max diameter
Microphone Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .2 lbs .
Included Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HM-2 Hard Mount
RECORDING TIPS: www.sterlingaudio.net
Sterling Audio
P .O . Box 5111
Thousand Oaks, CA 91359-5111
1704-16136387

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sterling ST151

Summary of Contents for Sterling ST151

  • Page 1 Included Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HM-2 Hard Mount RECORDING TIPS: www.sterlingaudio.net Sterling Audio P .O . Box 5111...
  • Page 2 SM8 Shock Mount – Sold separately These mics require phantom power from your preamp, audio interface Isolates your Sterling large diaphragm mic from noise due to vibrations or mixer . Avoid pops: make cable connections first, THEN activate 48v .
