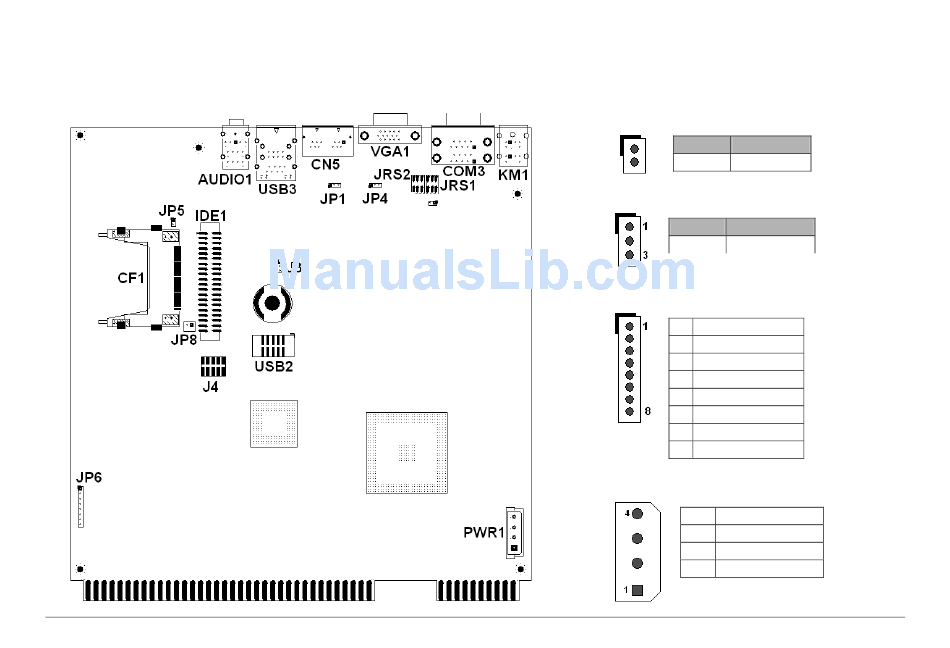

AR-B9660 QUICK MANUAL VERSION 1.1
Page 1 of 3
JP5 (CF MODE)
OPEN
Slave
SHORT
Master
J3 (CLEAR CMOS)
1-2
Normal
2-3
Clear
JP6 (CPLD COMMUNICATION PIN)
1
+3.3V
2
TDOA
3
TDIA
4
NC
5
NC
6
TMSA
7
GND
8
TCKA
PWR1 (POWER CONNECTOR)
1
+12V
2
GND
3
GND
4
+5V
AR-B9660 Quick Manual
Part NO.220010327-G
Advertisement
Related Manuals for Acrosser Technology AR-B9660
Summary of Contents for Acrosser Technology AR-B9660
- Page 1 AR-B9660 QUICK MANUAL VERSION 1.1 JP5 (CF MODE) OPEN Slave SHORT Master J3 (CLEAR CMOS) Normal Clear JP6 (CPLD COMMUNICATION PIN) +3.3V TDOA TDIA TMSA TCKA PWR1 (POWER CONNECTOR) +12V Page 1 of 3 AR-B9660 Quick Manual Part NO.220010327-G...
- Page 2 RS232 COM3 (COM1 and COM2) Note: If you want to user RS485 on the COM1(DB9), please connector pin 2(RX) and pin 3(TX). JRS2 (Selection COM1 is RS232 or RS485) RS232 RS485 Page 2 of 3 AR-B9660 Quick Manual Part NO.220010327-G...
- Page 3 VGA1 (VGA CONNECTOR) USB3(RJ45 AND TWO USB) AUDIO1(LIN IN AND OUT) Page 3 of 3 AR-B9660 Quick Manual Part NO.220010327-G...
