- Page 1 Receiver REC 300 Digital Operating instructions...
-
Page 2: Main Components

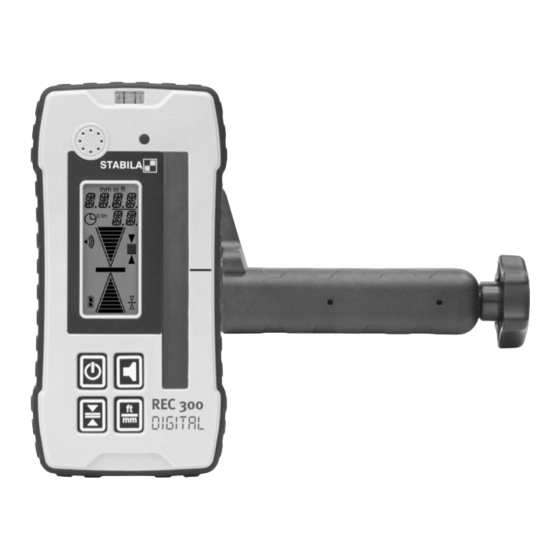

Operating instructions The STABILA REC 300 Digital is a simple-to-use receiver for the rapid capture of rotating lasers. The REC 300 Digital receiver can receive laser beams from rotation lasers, even when these are invisible to the naked eye. The distance to the “on line“ position is indicated digitally. -
Page 3: Getting Started
20 display steps indicate the divergence from the centre of the laser line. The central bar indicates the “in line” position of the REC 300 Digital. The arrow increases in size as the distance from the “in line” position increases. -
Page 4: Measuring Modes
Height difference display: digital The distance to the “on line“ position is indicated by digital figures Measuring modes Setting the accuracy level The icons appear permanently Fine Coarse ± 1,0 mm ± 5,0 mm The display appears only briefly ± 0,05 in ±... -
Page 5: Replacing The Batteries
Replacing the batteries Full: Half: Empty: Flashing: Batteries Initial Approximately Change Warning 30 Minutes Batteries! Remaining Slide the battery cover (10) in the direction of the arrow and insert new batteries in accordance with the symbols in the battery compartment. Mignon 2 x 1,5V Mignon cells Alkaline,... -
Page 6: Care And Maintenance
Care and maintenance Cleaning: Please do not remove dust and dirt from the receiving or display window by using dry cloths or abrasive materials as this procedure scratches the windows. A soft cloth and mild soap and water are effective. The unit may be submerged under water or sprayed with a low pressure hose if necessary. -
Page 7: Technical Data
24 months from the date of purchase. This guarantee is valid worldwide. STABILA has the right to decide at its own discretion whether the defects will be rectified by being repaired or whether the instrument will be replaced. - Page 8 P.O. Box 13 40 / D-76851 Annweiler Landauer Str. 45 / D-76855 Annweiler Tel.: + 49 ( 63 46 / 309 - 0 Fax: +49 ( 63 46 / 309 - 480 e-mail: info@stabila.de www.stabila.com Canada STABILA Inc. 332 Industrial Drive South Elgin, IL 60177 1.800.869.7460...
