Summary of Contents for Stabila REC 160 RG

  • Page 1 How true pro’s measure REC 160 RG Operating instructions...
  • Page 2: Table Of Contents

    Contents Section Page • 1. Intended use • 2. Safety information • 3. Components of the unit • 4. Display elements • 5. Commissioning • 5.1 Battery insertion/replacement • 5.2 Switching the unit on • 5.3 Lighting • 5.4 Setting acoustic guidance •...
  • Page 3: Intended Use

    1. Intended use 2. Safety information Congratulations on the purchase of your STABILA measuring tool. The STABILA REC 160 RG Read the safety instructions and operating instructions through carefully. is an easy-to-use receiver for quickly locating rotating red or green laser beams.
  • Page 4: Components Of The Unit

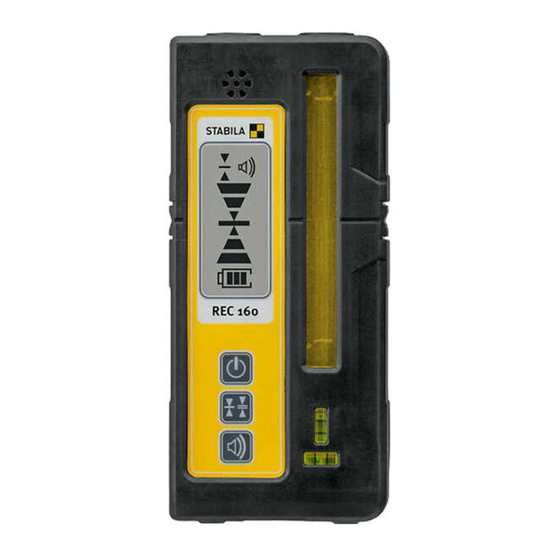

    3. Components of the unit REC 160 RG (dust-proof and waterproof in accordance with IP 66) Magnet 17 18 Outlet: acoustic signal Display – 1x on front, 1x on rear Laser receiver “On line” marking Vials Locating holes for retaining bracket...
  • Page 5: Display Elements

    4. Display elements Adjusting the accuracy: fine to rough (20) Acoustic signal (21) “On line” position (22) (23) Display levels for height difference in relation to “On line” position Battery charge (24)
  • Page 6: Commissioning

    5. Commissioning 5.1 Battery insertion/replacement Open thebattery compartment lid in the direction of the arrow and insert new batteries in the battery compartment as indicated by the symbol. Suitable rechargeable batteries can also be used. LCD indicator: Battery capacity low - Insert new battery 2x 1,5V alkaline Used batteries should be disposed of at...
  • Page 7: Setting Acoustic Guidance

    5.4 Setting acoustic guidance The volume is increased/decreased by pressing the > 90 dBA 70 - 90 dBA 0 dBA “Loudspeaker” button briefly and repeatedly: Loud, soft or off. If the sound is turned off, only a short beep sounds to indicate when the laser beam is being received.
  • Page 8: Functions

    6. Functions 6.1 Visual guidance Height difference display Fast beeping = too Continuous tone Slow beeping = too The arrows indicate whether the receiver is too high or too = “On line” low / in front high / behind low in relation to the laser beam. The line in the middle indicates the “On line”...
  • Page 9: Retaining Bracket

    6.4 Retaining bracket Mounting: Use the locating pins and the mounting screw to align and mount the retaining bracket on the rear of the receiver. Locking screw: Turn the screw to adjust the clamp and mount the retaining bracket and receiver on the measuring rod. Reading reference: To ensure that the unit is aligned precisely on the measur- ing rod, the reading reference on the retaining bracket is...
  • Page 10: Technical Data

    7. Technical data Accuracy: Fine: ± 1 mm / 1/25 Rough: ± 3 mm / 1 / 8 Receiving spectrum: 500 nm – 680 nm Acoustic signal: Loud: > 90 dBA Soft: 70–90 dBA Batteries: 2 x 1.5 V alkaline, Mignon, AA, LR6 Battery life: ≥...
