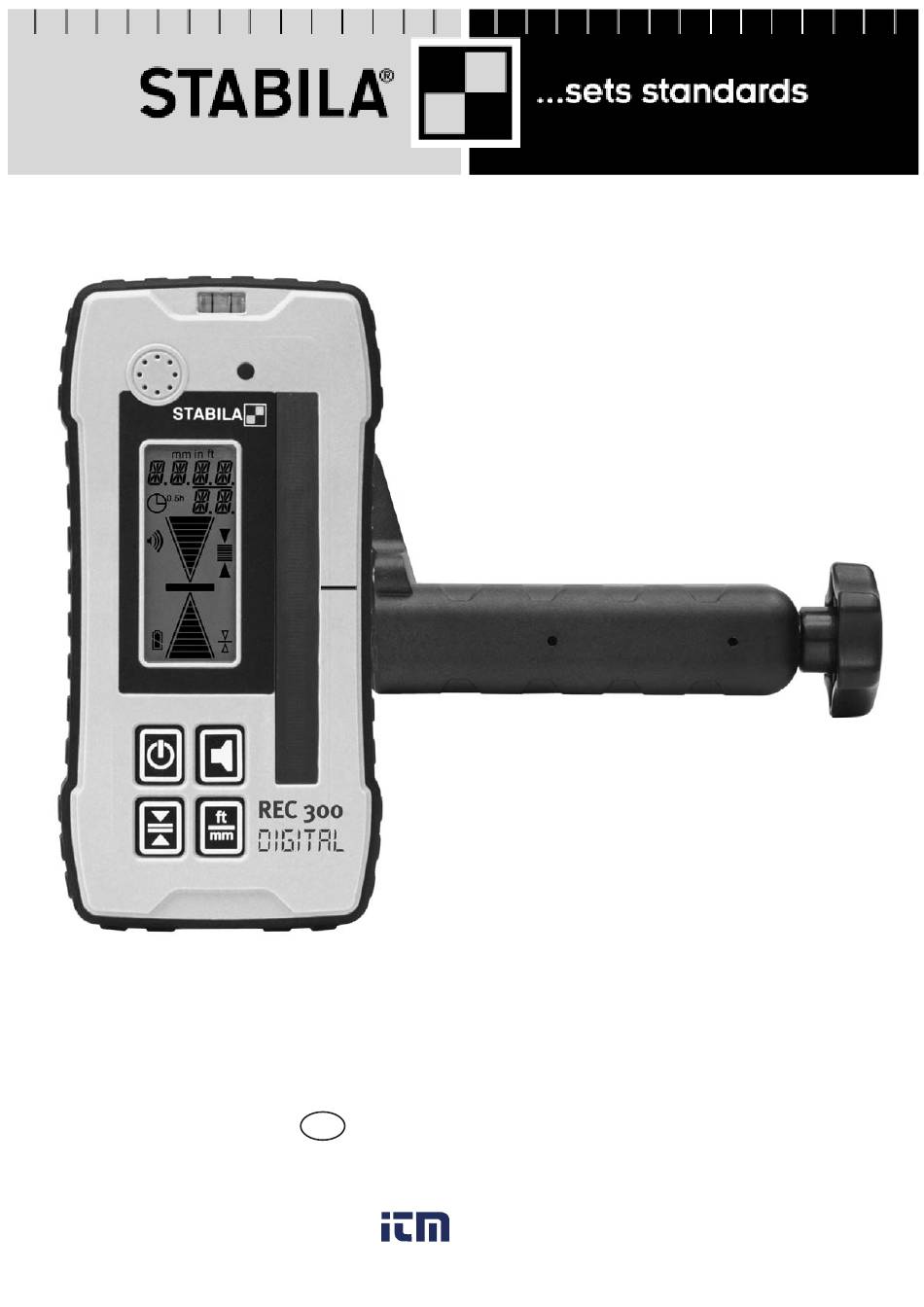

- Page 1 Receiver REC 300 Digital Operating instructions 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Operating Instructions
Operating instructions The STABILA REC 300 Digital is a simple-to-use receiver for the rapid capture of rotating lasers. The REC 300 Digital receiver can receive laser beams from rotation lasers, even when these are invisible to the naked eye. The distance to the “on line“ position is indicated digitally We have endeavoured to explain the unit's handling and functioning in as clear and comprehensible manner as possible. -
Page 3: Getting Started
20 display steps indicate the divergence from the centre of the laser line. The central bar indicates the “in line” posi- tion of the REC 300 Digital. The arrow increases in size as the distance from the “in line” position increases. - Page 4 Height difference display: digital The distance to the “on line“ position is indicated by digital figures Measuring modes Setting the accuracy level The icons appear permanently Fine Coarse ± 1,0 mm ± 5,0 mm The display appears only briefly ± 0,05 in ±...
-
Page 5: Replacing The Batteries
Replacing the batteries Full: Half: Empty: Flashing: Batteries Initial Approximately Change Warning 30 Minutes Batteries! Remaining Slide the battery cover (10) in the direction of the arrow and insert new batteries in accordance with the symbols in the battery compartment. Mignon 2 x 1,5V Mignon cells Alkaline,... -
Page 6: Care And Maintenance
Care and maintenance Cleaning: Please do not remove dust and dirt from the receiving or display window by using dry cloths or abrasive materials as this procedure scratches the windows. A soft cloth and mild soap and water are effective. The unit may be submerged under water or sprayed with a low pressure hose if necessary. -
Page 7: Technical Data
Stabila provides a guarantee against deficiencies and faults in the assured characte- ristics because of material or manufacturing faults for a period of 24 months from date of purchase. Any faults will be eliminated at Stabila's own discretion either by repairing or replacing the unit. Stabila accepts no wider claims.
