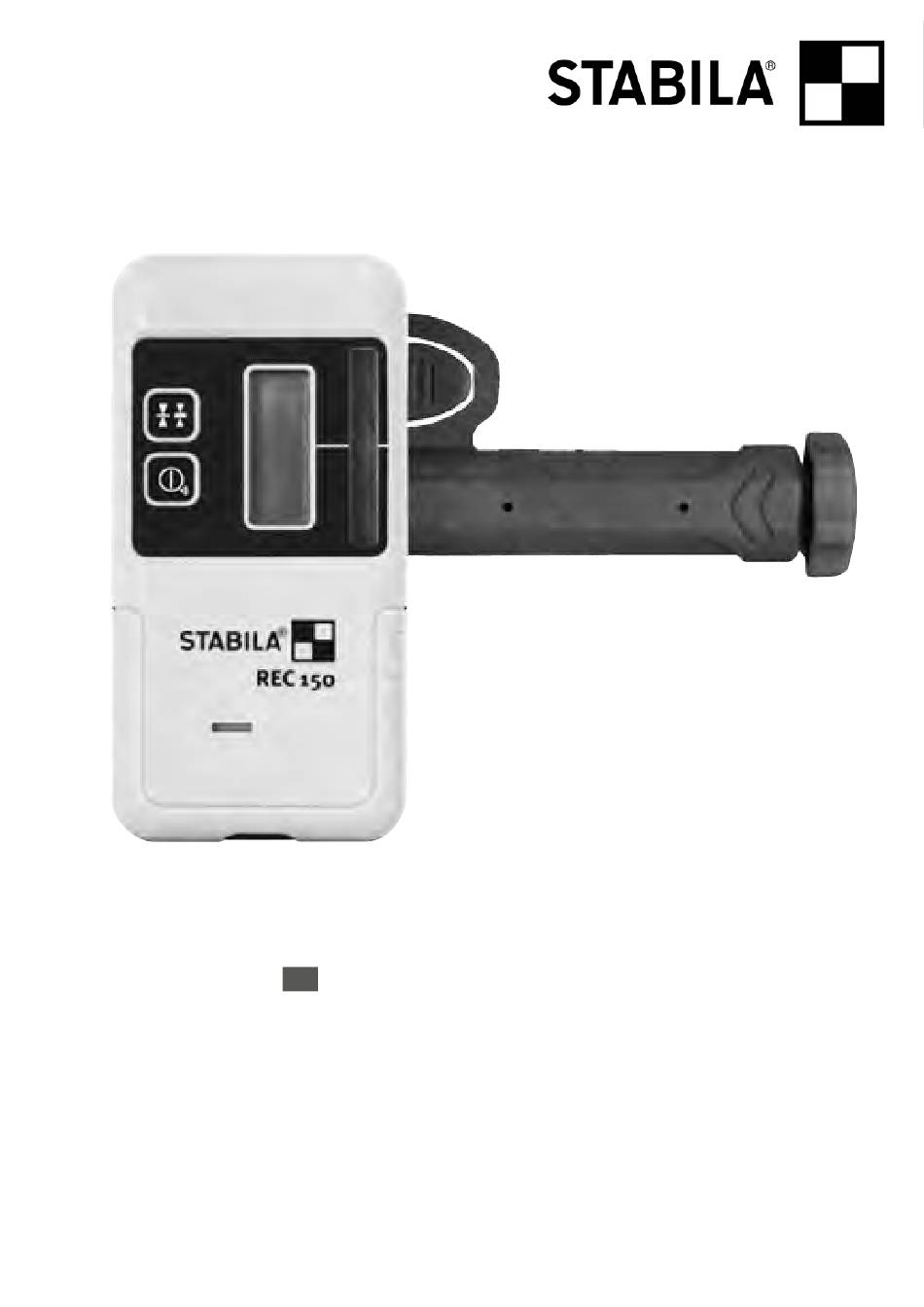

- Page 1 Receiver REC 150 Operating instructions...
-
Page 2: Main Components

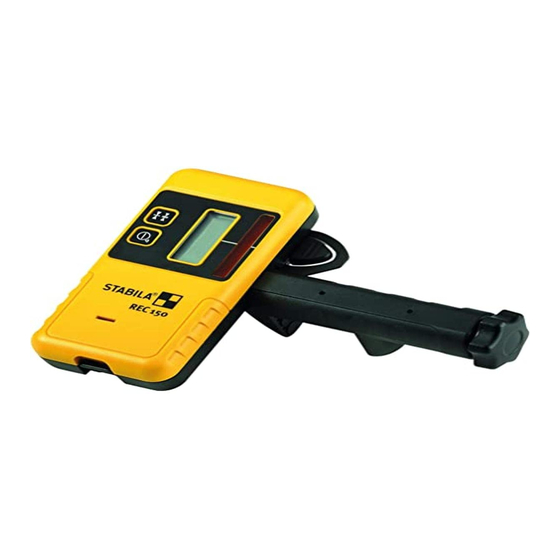

Operating instructions The STABILA REC 150 is a simple-to-use receiver for the rapid capture of rotating lasers. The REC 150 receiver can receive laser beams from rotation lasers, even when these are invisible to the naked eye. If you still have questions after reading through the operating instructions,... -
Page 3: Getting Started
If the instrument is not used, it will automatically switch itself off after 30 minutes. Height difference display 5 display steps indicate the divergence from the centre of the laser line. The central bar indicates the “in line” position of the REC 150. REC 150 REC 150... -
Page 4: Audio Signals
Positioning and aligning the receiver Correct handling for attaining the correct measuring result: REC 150 Audio signals Setting the volume The volume is increased/decreased by repeatedly pressing the button (1): Loud, off or soft. If the instrument is set to “silent” only a short beep is emitted when the laser beam is received. -
Page 5: Replacing The Batteries
Setting the accuracy The receiver always starts with the accuracy setting “fine”. Repeated, brief pressing of the “Accuracy” button (2) to select the accuracy: “fine” = ± 1.0 mm ( ± 1/32 in.) and “coarse” = ± 3.0 mm ( ± 1/8 in.). ±... - Page 6 Retaining clip Fastening: Push the retaining clip into the guide groove until it engages. Pressing the release button releases the fixing and the retaining clip can be pulled off. Securing knob: Turning the securin knob fixes / releases the clamp with the receiver to/from the levelling staff.
-
Page 7: Technical Data
In addition to the statutory rights of buyers, which are not limited by this warranty, STABILA guarantees that the unit is free from defects and has assured features in the event of material or manufacturing defects for a period of 24 months from the date of purchase. - Page 8 Ergänzung zur Garantieerklärung: Die Garantie gilt weltweit. Addition to warranty declaration: The warranty applies world-wide. Complément à la déclaration de garantie : La garantie est valable dans le monde entier. Aggiunta alla dichiarazione di garanzia: La garanzia ha validità mondiale. Ampliación de la declaración de garantía: La garantía tiene validez en todo el mundo. Aanvulling op de garantieverklaring: De garantie is wereldwijd geldig.
- Page 9 Certificate of warranty for STABILA REC 150 Customer: Adress: Date of purchase: Dealer (stamp, signature):...
- Page 10 STABILA Messgeräte Gustav Ullrich GmbH P.O. Box 13 40 / D-76851 Annweiler Landauer Str. 45 / D-76855 Annweiler Tel.: + 49 63 46 / 309 - 0 Fax: + 49 63 46 / 309 - 480 e-mail: info@stabila.de www.stabila.de...
