Kohler K-2200-G Installation Instructions

INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN
NOTES
·
Use these instructions for above-counter installation.
Please follow the instructions that apply to your
installation.
·
You can choose between a wall-mount or
countertop faucet installation, depending upon the
setting and styling you desire. We recommended a
wall-mount faucet .
·
Prior to installation, unpack the new lavatory and
carefully inspect it for damage. Return the lavatory
to its protective carton until you are ready to install it.

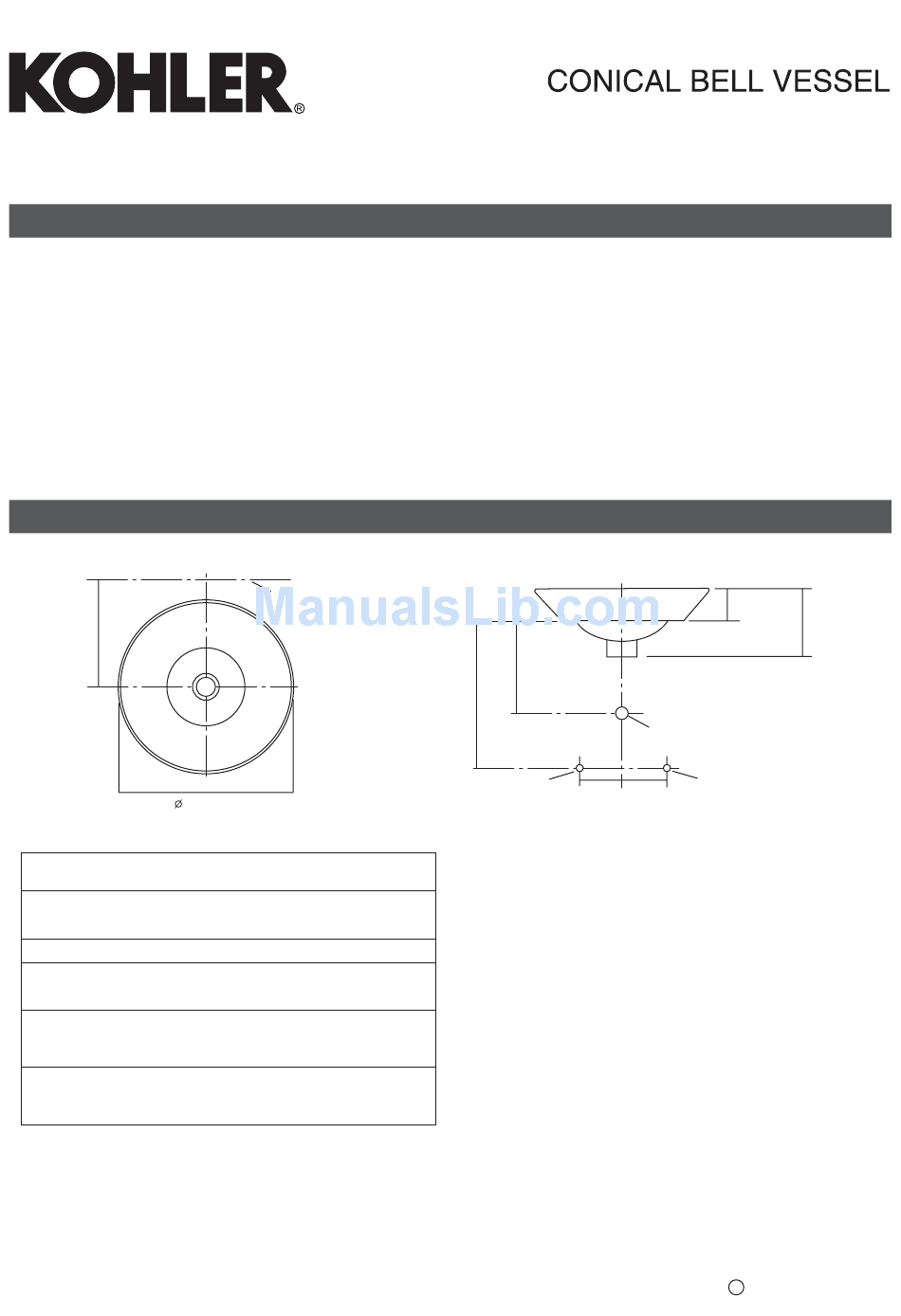

ROUGHING-IN DIMENSIONS
254mm
Roughing-In Notes
Fixture dimensions are nominal and conform to
tolerances in ASME Standard A112.19.2M.
(T) Pop-up drain 229mm.
(S) 356mm (Based on 305mm riser which may
require cutting).
* Spout must be 127mm long (min.) for adequate
clearance into lavatory when installed with centerline
as shown.
** Spout must be tall enough to clear 76mm rim
height and provide a 25mm air gap per ASME
A112.1.2.
1007250-K01-A
C
OF FITTING*
L
413mm
ABOVE-THE-COUNTER LAVATORY
·
All information in these instructions is based upon
the latest product information available at the time of
publication. Kohler Co. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information. Please leave these
instructions for the consumer.
K-2200-G
(T)
(S)
3/8" HOT
-1-
VITREOUS CHINA
**76mm
1-1/4" OUTLET
3/8" COLD
102mm 102mm
Fig. #1
COPYRIGHT 2002 KOHLER Co.
C
K-2200-G
162mm
