Lorex LHA4000LC Series Quick Connection Manual

Package Contents:
HD DVR USB Mouse
Remote Control Power Cable
Ethernet Cable HDMI Cable
Quick Start Guides

Need Help?

Visit us online for up-to-date software and
complete instruction manuals
1
Visit lorex.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Copyright © 2018 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE. All
rights reserved.
Quick Connection Guide

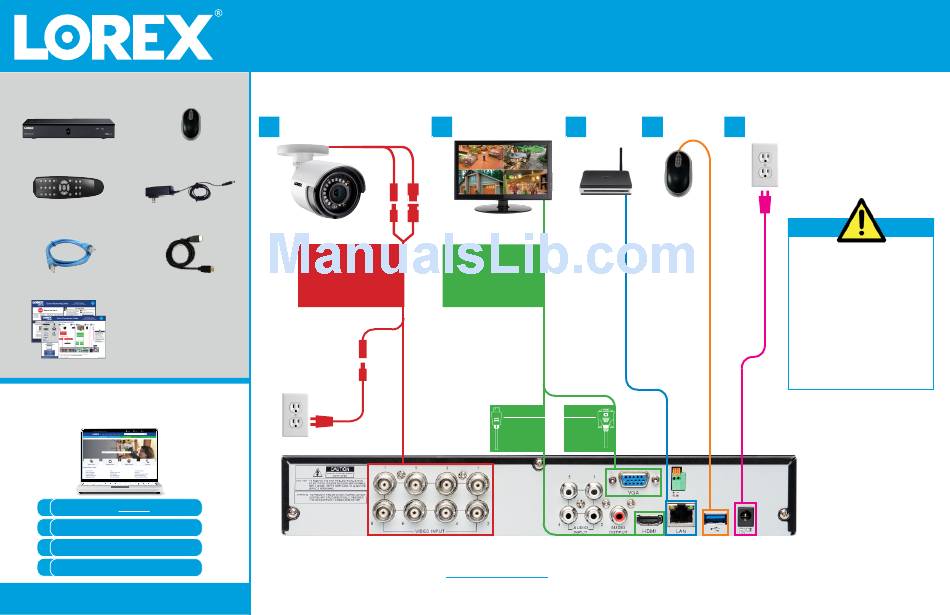

Connecting Your System
1 2
Cameras*
Extension Cable*
The extension cable must
be a single stretch of cable
between the DVR and camera.
You cannot connect multiple
extension cables to each other.
8 channel configuration shown. 4/16 channel units will have the respective number of video inputs.
For camera compatibility information, visit
* Not included / sold separately.
3
Monitor* Router*
!
The DVR is set to 720p
output by default. To optimize
picture quality, set the DVR's
video output to match the
resolution of your monitor.
HDMI OR VGA*
4-channel DVRs:
Up to 1080p Supports
up to 1080p
8/16-channel DVRs:
Up to 4K
lorex.com/compatibility
LHA4000LC Series
HD Digital Video Surveillance Recorder
4 5
Mouse Power
This system features automatic firmware
upgrades for enhanced functionality. It is
required to upgrade your system to the latest
firmware version.
If a firmware upgrade is available:
1. After startup, a notification will appear
asking you to upgrade the firmware. Click OK to
upgrade.
2. The system will download and install the
firmware upgrade. Wait for the firmware update
to complete. The system may restart during the
firmware upgrade process.
DO NOT power off or disconnect the power
cable during firmware installation.
LHA4000_LC_QCG_EN_R1
