Lorex LHV5100 Series Quick Connection Manual

Package Contents:

USB Mouse
MPX DVR
Remote Control Power Cable
Ethernet Cable HDMI Cable
Quick Start Guides

Need Help?

Visit us online for up-to-date software and
complete instruction manuals
1
Visit lorex.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Information in this document is subject to change without notice. As our products are subject
to continuous improvement, Lorex Corporation and our subsidiaries reserve the right to modify
product design, specifications and prices, without notice and without incurring any obligation.
E&OE © 2018 Lorex Corporation. All rights reserved.
Quick Connection Guide
Connecting Your System
1 2
Cameras*
Extension Cable*
The extension cable must
be a single stretch of cable
between the DVR and camera.
You cannot connect multiple
extension cables to each other.
8 channel configuration shown. 16 channel will have the respective number of video inputs.
For camera compatibility information, visit lorex.com/compatibility.
Product image might appear different than the actual product.
* Not included / sold separately.
3
Monitor* Router*
!
The DVR is set to 1080p
output by default. To
optimize picture quality,
set the DVR's video
output to match the
resolution of your monitor.
HDMI OR VGA*
Supports Supports
up to 4K up to 1080p

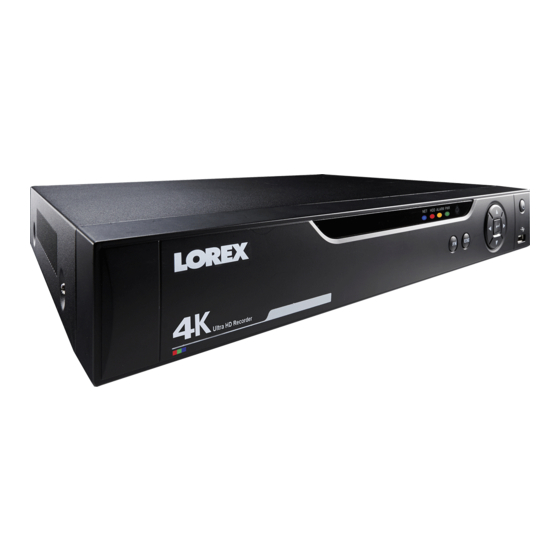

LHV5100 Series
4K MPX Security DVR
4 5
Mouse Power
This system features automatic firmware
upgrades for enhanced functionality. It is
required to upgrade your system to the latest
firmware version.
If a firmware upgrade is available:
1. After startup, a notification will appear
asking you to upgrade the firmware. Click OK to
upgrade.
2. The system will download and install the
firmware upgrade. Wait for the firmware update
to complete. The system may restart during the
firmware upgrade process.
DO NOT power off or disconnect the power
cable during firmware installation.
6: ON
