Bosch B925F User Quick Reference Manual

1 | Overview
Status indicators
The Status indicators provide a quick
visual reference for systems status.
Ready to arm
Indicator lights when the system is ready to turn on (arm).
(24 hour points, such as fi re points, are always monitored.)
On (armed)
Indicator lights when the system is on (armed).
Gas
Indicator lights when a gas alarm exists.
Power
Indicator lights when the system has AC (Mains) power.
Fire function keys
When pressed, these keys turn on keypad
backlighting and emit the keypress tone (short beep).
(Might require a passcode.)
ACK
Press to acknowledge the system alarm or trouble condition.
The keypad shows the highest priority alarm point, and lights
the [PREV] and [NEXT] keys if additional alarms exist.
SILENCE
Press to silence fi re alarms or troubles.
RESET
Press to reset devices such as smoke detectors, and clear
restored points.
DRILL
Press and hold to initiate a fi re drill.
When pressed, these keys turn on keypad backlighting
and emit the keypress tone (short beep).
When lit, use these keys to scroll through alarm points, lists, and text.
Use the [ENTER] key to complete the entry of your passcode, to select a menu
item, or to answer Yes to a keypad request.
The [ESC] (Escape) key has two uses. First, use the [ESC] (Escape) key to exit from menus
and functions. Also, use the key as a backspace when you enter names and numbers.
Use the [CMD] key in combination with one or two number keys to perform select functions.
Commands
Command Function
You can initiate functions
[CMD] 0 Bypass
with the [CMD] key plus the
[CMD] 0 0 Unbypass
one or two digit command.
[CMD] 1 All on (with delay)
Use [CMD]8 to open the
[CMD] 1 1 All On, Instant
Main menu.
[CMD] 2 Part On, Instant
If you know the command
[CMD] 3 Part On (with delay)
number, press the [CMD]
key and then the one or two
[CMD] 4 Silence Trouble Sounders
digit command.
[CMD] 4 0 See Alarms
or
[CMD] 4 1 Test Report
[CMD] 4 2 Status Report
After you press [CMD], you
can use [PREV] or [NEXT]
[CMD] 4 3 RPS Answer
to move through the list of
[CMD] 4 4 Intrusion Walk Test
commands. Press [ENTER]
when viewing the desired
[CMD] 4 5 Date and Time
command to activate it.
[CMD] 4 6 Door Control Menu
[CMD] 4 7 Reset Sensors
Fire Status indicators
The Fire Status indicators provide a quick
visual reference of the fi re system status.
Alphanumeric display
A1 Lobby
System Ready
GAS
ACK
SILENCE
RESET
DRILL
Intrusion function keys (B925F only)
When pressed, these keys turn on keypad backlighting
and emit the keypress tone (short beep).
ALL
Press to turn the intrusion system All On.
PART
Navigation function keys
Press to turn the intrusion system Part On.
BYPASS
Press to open the menu to bypass points.
PREV and NEXT
MENU
Press to open the keypad's Main menu. (To open the Main
ENTER
menu on a B926F, press [CMD][8].)
ESC
CMD
Command Function
[CMD] 4 9 Change Display
[CMD] 5 0 Go to Area
[CMD] 5 1 Extend Close
[CMD] 5 SKED Menu
[CMD] 5 3 Delete User
[CMD] 5 4 Output Change Menu
[CMD] 5 5 Change Passcode
[CMD] 5 6 Add User
[CMD] 5 8 Fire Walk Test
[CMD] 5 9 Show Revision
[CMD] 6 Watch Mode
[CMD] 7* Special Alert _____________
[CMD] 8 Open Main Menu
[CMD] 9* Special Alert _____________
Fire
The keypad offers an easy-to-use menu tree structure. To access the menu tree, press [MENU] (B925F only) or press [CMD][8].
Indicator lights when a fi re alarm
Each menu option has a number. At each level, you can press the number for the desired menu option. Otherwise, use [PREV]
condition exists; turns off when all
or [NEXT] to review your options at that level, and then press [ENTER] when you see the desired menu option.
fi re alarm points are restored and
event memory cleared.
Silenced
Indicator lights when a fi re alarm
condition is silenced; turns off when
a user presses the RESET button or if
another fi re alarm condition occurs.
Press 1 for
Supervisory
On/Off menu
Indicator lights when any point
programmed as supervisory is
not normal; turns off when all
supervisory points return to normal
Press 2 for
and are reset. Status menu
Trouble
Indicator lights when a trouble
.
condition exists
Press 3 for
Actions menu
Press 4 for
Users menu
Press 5 for
Settings menu
Press 6 for
Shortcuts menu
Press 7 for
Events menu
Press 1 to
view event
Press 2 to
clear event
Press 3 to
view log

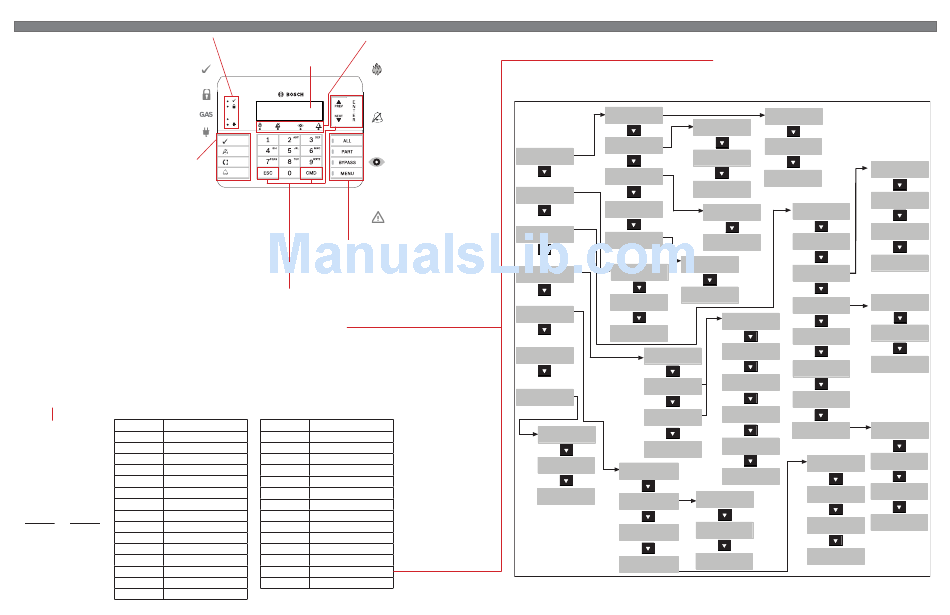

Menu tree
The menu tree fi gure shows the menu structure and the numbers associated for each menu option.
Press 1 for
All On menu
Press 1 for
Part On Delay
Press 2 for
Part On menu
Press 2 for
Part On Instant
Press 3 for
Off menu
Press 3 for
Part On Select
Press 4 for
Press 1 to
Extend Close time
Turn Off
Press 5 for
Press 2 to
Bypass menu
Turn Off Select
Press 1 to
bypass points
Press 1 to
View Area Status
Press 2 to
unbypass points
Press 2 to
View Point Status
Press 1 to
configure passcode
Press 3 to Send
Status Report
Press 2 to
Press 1 to
configure name
*
change passcode
Press 3 to
Press 2 to
configure level
add user
Press 4 to
Press 3 to
configure keyfob
edit user
Press 5 to
Press 4 to
configure card
delete user
Press 1 to
Press 6 to
change watch mode
configure language
Press 1 to
Press 2 for
set panel date
Date/Time
Press 2 to
Press 3 to
set panel time
change schedule
Press 3 to
Press 4 for
show date/time
keypad config
Press 1 for
All On Delay
Press 2 for
All On Instant
Press 1 for
Walk Test menu
Press 3 for.
All On Select
Press 2 to
Send Test report
Press 1 to
reset sensors
Press 3 to
display revisions
Press 2 to
change output
Press 4 to
test notification
Press 3 for
Test menu
Press 1 to
Press 4 for
answer
RPS menu
Press 2 for
Press 5 to
Originate menu
go to area
Press 3 to
Press 6 to
call via phone
update firmware
Press 7 to
view serv bypassed
Press 1 to
Press 8 for
Cycle door
Access menu
Press 2 to Unlock
Press 1 to
door
adjust brightness
Press 3 to
Press 2 to
Lock door
adjust volume
Press 4 to
Press 3 to
Secure door
silence keytone
Press 4 to
set nightlight
*As confi gured by your security company.
