Intrusion Alarm Systems | B920 Two-line Alphanumeric Keypad (SDI2)
B920 Two-line Alphanumeric Keypad
(SDI2)
www.boschsecurity.com

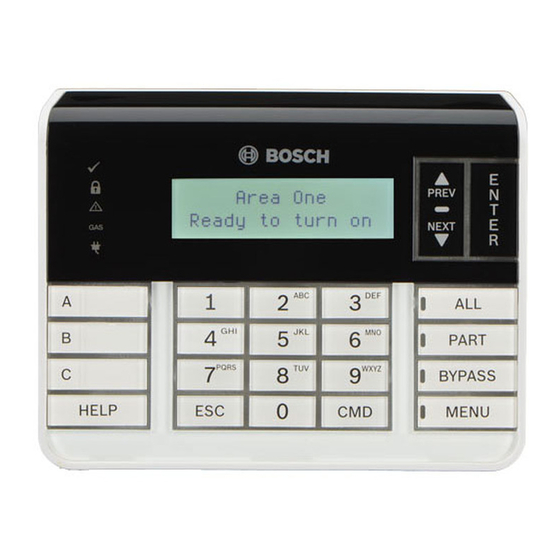

The B920 Two-line Alphanumeric Keypad (SDI2) is a
SDI2 bus compatible device. Each keypad has user
adjustable options such as volume and display
brightness. The B920 shows two-line system messages
for all areas.
System overview
• For commercial use, install the keypad in building
entrances and areas with unrestricted access.
Mounting a keypad near exterior doors in hotel or
business lobbies allows people to identify the type
and location of the emergency.
• For residential use, install the keypad near the front
and rear entrances to the home. Install additional
keypads in a kitchen or in a bedroom.
• Use multiple keypads in a large building with many
separate areas of security. Program multiple keypads
to control multiple areas.
• Audible tones from the keypad sounder alert
personnel to fire events and assist fire fighters in
locating the keypad.
2-line LCD display with up to 32 character point,
u
user, and area names
Simple menu-style user interface with dedicated
u
function buttons for common commands, including
status indication
Situation sensitive on-screen help makes system
u
operation simple and easy
Highly visible on (arm)/alarm, ready to turn on
u
(arm), power and gas alarm indicators
Simple installation with self-locking base and
u
chassis design, plus built-in bubble level
Functions
LCD display
The keypad uses words, numbers, and symbols to
show the status of the security system. When several
events occur, the keypad shows each event in order of
priority.
Keys
Each keypad has 10 number keys, 7 function keys, and
6 navigation keys. When pressed, keys turn on keypad
backlighting and emit the keypress tone (short beep).
The function keys include programmable function keys
and keys to initiate arming and bypassing with one
keypress.
Audible tones
The keypad has a built-in speaker that produces
several distinct warning tones. The tones are
differentiated so that the user can recognize an event
simply by hearing its associated tone. The keypad
backlight illuminates when it emits an audible tone.
Users can use a passcode to silence the tone.
