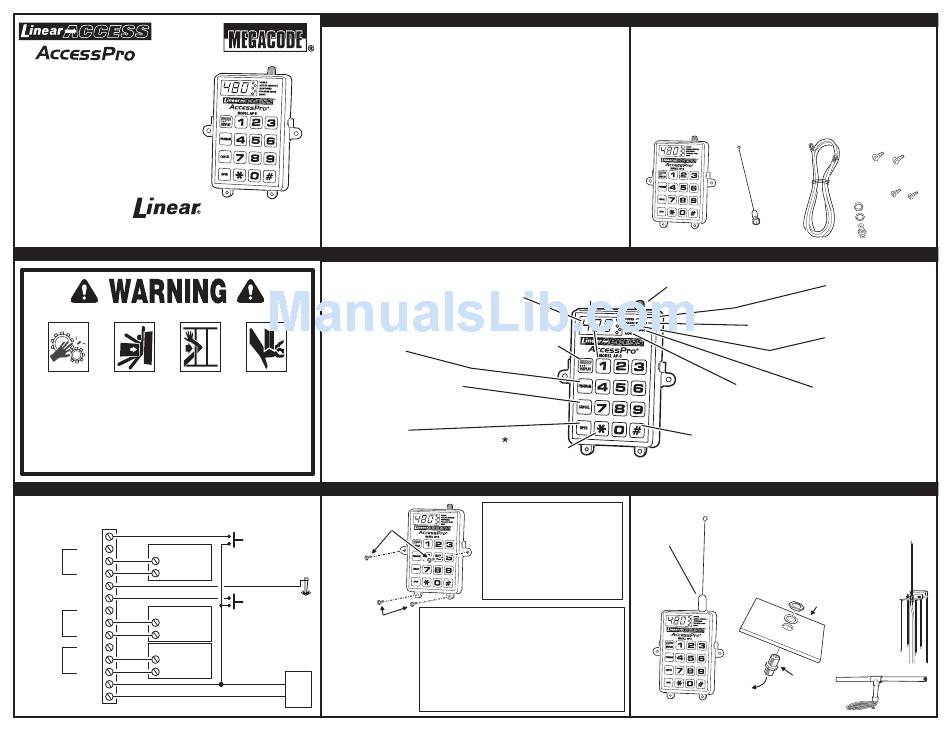

Linear AP-5 Installation Instructions Manual

TM
®
AP-5
Multi-purpose
Wireless
Access Controller
With High-gain Superheterodyne Receiver
Installation Instructions
(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
SAFETY WARNING
MOVING DOOR OR GATE CAN CAUSE SERIOUS INJURY OR DEATH
THIS UNIT CAUSES OPERATION OF A DOOR OR GATE MOTOR.
STAY CLEAR OF MOVING PARTS IF THIS UNIT IS MOUNTED
INSIDE THE DOOR OR GATE OPERATOR!
STAY CLEAR OF THE DOOR/GATE OR DISCONNECT THE ACCESS
RELAY WIRES WHEN PROGRAMMING OR SERVICING THIS UNIT!
ELECTRICAL CONNECTIONS
Relay K1 = Access Only
AP-5 WIRING DIAGRAM
Relay K2 = Access or Obstacle
Relay K3 = Obstacle Only
OPEN REQUEST 2
N.C.
ACCESS DEVICE
K3
COM
Obstacle
OBSTACLE
RELAY Terminals
N.O.
EARTH GND
OPEN REQUEST 1
N.C.
ACCESS DEVICE
K1
COM
ACCESS Access
RELAY
Terminals
N.O.
K2
N.C.
ACCESS DEVICE
ACCESS OR Access or
COM
OBSTACLE
Obstacle
N.O.
RELAY
Terminals
Connect K1, K2, & K3 AC2
N.O. or N.C. and COM
AC1
terminals to access
device trigger inputs
The AP-5 is designed for a broad range of access control applications. Its wireless design and
small size make it easily adaptable for a variety of access control requirements. Typically, the AP-5
is used to control one or two door strikes, barrier gates, automatic gates, or door operators.
The AP-5 contains a high-gain superheterodyne UHF receiver which uses an external antenna to
pick up signals from up to 500 feet away. Up to 480 Linear MegaCode
MGT safety edge transmitters can be programmed into the AP-5's memory. The AP-5 will retain
its memory, even without power.
Three dry contact relays are provided. The fi rst relay (K1) is always for ACCESS. The second relay
(K2) can be set for ACCESS or OBSTACLE. The third relay (K3) is always an OBSTACLE relay.
An ACCESS relay can be programmed to be either timed or toggled. In timed mode, the relay
can each be programmed to activate from 1 to 120 seconds (default 2 seconds). In toggle mode,
activating a transmitter will latch the relay, activating the transmitter again will un-latch the relay.
An OBSTACLE relay will activate for 2 seconds when a valid signal is received from a Model MGT
transmitter. During an obstacle condition, all ACCESS relays will be disabled.
For manual activation, pressing OPEN then the "1" key will activate relay K1. Pressing OPEN then
the "2" key will activate relay K2. Each relay will activate for its programmed time only. If relay K2
is programmed as an OBSTACLE relay, it cannot be manually activated.
Relays K1 and K2 can also be activated using the two OPEN REQUEST inputs. Each input
(1 or 2) will activate an ACCESS relay (K1 or K2) for its timed amount, or as long as the input is
active. OPEN REQUEST inputs override any MGT obstacle activity on relay K3 (but not on K2).
DISPLAYS LAST 3 DIGITS OF THE TRANSMITTERS ID
NUMBER DURING OPERATION AND PROGRAMMING.
ALSO DISPLAYS MGT SUPERVISION STATUS AND
SYSTEM UTILITY INFORMATION.
PROGRAM BUTTON
PUSH FOR 3 SECONDS TO ENTER
PROGRAM MODE. PRESS MOMENTARILY
TO EXIT PROGRAM MODE.
CANCEL BUTTON
CLEARS THE KEYPAD AND DISPLAY
IN CASE OF AN INCORRECT PROGRAMMING
ENTRY. ALSO CLEARS ANY SUPERVISORY
TROUBLE CODES FROM AN MGT
OBSTACLE TRANSMITTER.
OPEN BUTTON
PUSH OPEN THEN BUTTON 1 OR 2
TO ACTIVATE ACCESS RELAY
ONE OR TWO.

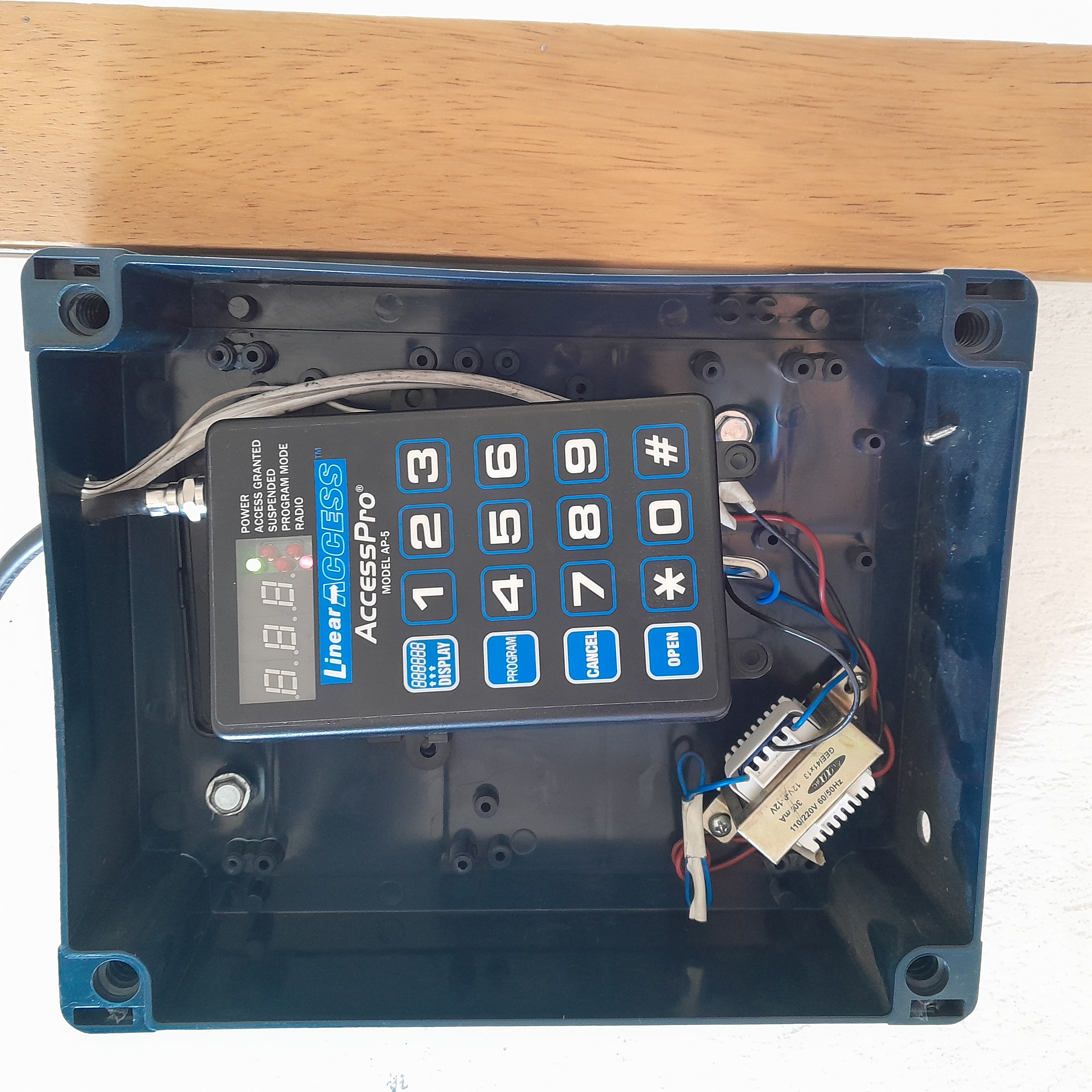

RECEIVER INSTALLATION & SPECIFICATIONS
MOUNT THE RECEIVER
USING THE TWO
SCREWS PROVIDED
PB2
OPEN REQUEST PUSHBUTTONS
Optional connections provide
an external method to activate
access devices connected
to relays K1 & K2.
PB1
EARTH GROUND
Ground stake, cold
water pipe or unified
CLOSE THE CASE AND
earth ground.
Recomended! SECURE IT USING THE
TWO SCREWS PROVIDED
POWER INPUT
Low voltage plug-in
transformer or power
from access device.
DC -
12-24
VOLTS
AC/DC
DC +

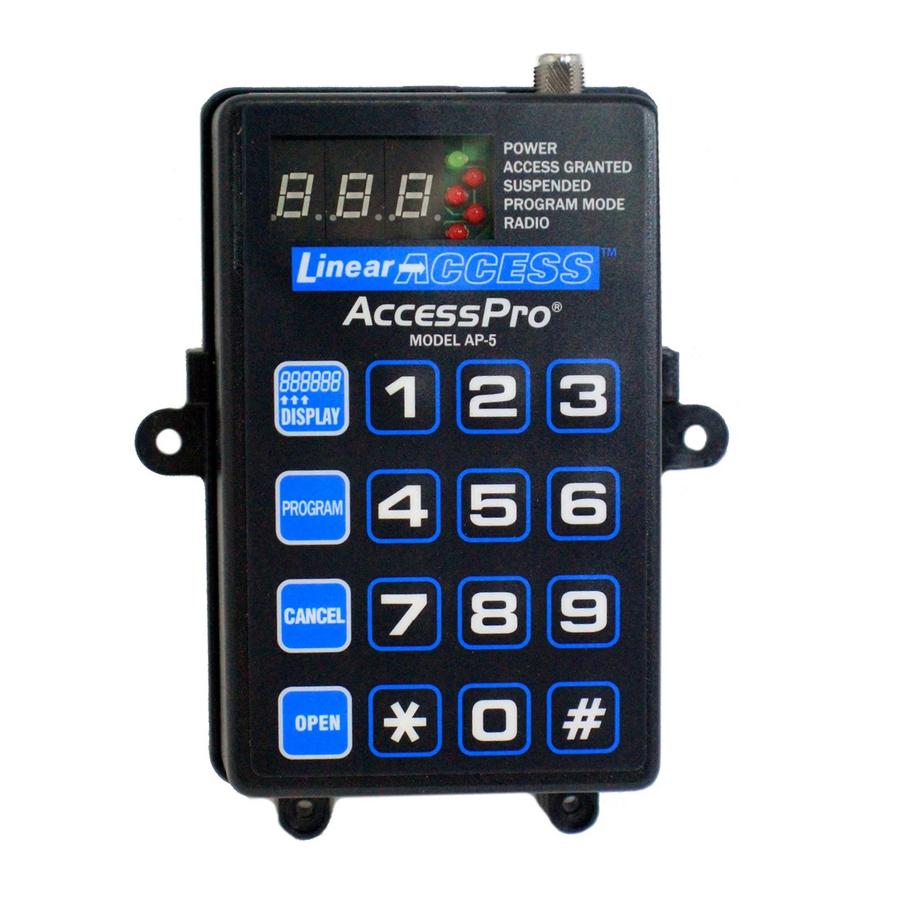

INTRODUCTION
®
transmitters and six Model
AP-5 FEATURES
DIGITAL DISPLAY NUMERIC KEYPAD
FOR ENTERING TRANSMITTER
ID NUMBERS, PROGRAMMING,
AND UTILITY FUNCTION NUMBERS.
DISPLAY BUTTON
SHIFTS THE DISPLAY TO SHOW
THE LEFT THREE DIGITS OF THE
6-DIGIT TRANSMITTER ID NUMBER
DURING OPERATION OR
PROGRAMMING.
STAR ( ) KEY
DISPLAYS THE ID NUMBER OF THE LAST
TRANSMITTER ACTIVATED. (USE THE
DISPLAY BUTTON TO VIEW THE LEFT
THREE DIGITS OF THE ID NUMBER.)
NOTES:
1. MOUNT RECEIVER IN AN AREA PROTECTED
FROM THE ELEMENTS
2. IF USING THE LOCAL WHIP ANTENNA, THE
HIGHER THE RECEIVER IS MOUNTED, THE
BETTER THE RADIO RANGE WILL BE
3. OPTIONALLY, MOUNT THE RECEIVER IN A
METAL CABINET AND USE AN EXTERNAL
ANTENNA
SPECIFICATIONS:
SIZE: 4.5" W x 6" H x 1.5" D
SUPPLY VOLTAGE: 12-24 VOLTS AC/DC
OPERATING CURRENT: 250 mA MAXIMUM
OPERATING TEMPERATURE RANGE: -22° TO +158° F (-30° TO +70° C)
SENSITIVITY: -102 dBm MINIMUM
BANDWIDTH (3 db): 300 KHz TYPICAL
FREQUENCY: 318 MHz
RELAY CONTACT RATING: 1 AMP @ 24 VOLTS AC/DC
MAXIMUM NUMBER OF TRANSMITTERS: 480
MAXIMUM NUMBER OF TRANSMITTER BLOCKS: 238
MAXIMUM NUMBER OF FACILITY CODES: 4
The AP-5 can fully supervise up to six MGT safety edge transmitters stored in six memory locations
(1-6). The system monitors each MGT transmitter for hourly status reports, tamper signals, and
low battery signals. A beep will sound every 5 seconds if a fault occurs and the trouble source
can be displayed by pressing #-1 then 1-6. A transmitter must be activated twice to trigger the
ACCESS RELAY if a supervisory trouble condition exists on any MGT transmitter (unless
the MGT has been suspended). MGT supervisory conditions can be canceled per individual unit,
or globally.
The AP-5 can be powered from 12-24 Volts AC or DC. The three Form C relay outputs can
each switch up to 1 Amp @ 24 Volts AC/DC. An EARTH GROUND terminal is provided as a
recommended connection for maximum lightning and static protection.
3-FOOT
ANTENNA
CABLE
WHIP
ANTENNA
MODEL AP-5 RECEIVER
ANTENNA CONNECTOR
FOR DIRECT CONNECTION TO THE LOCAL
WHIP ANTENNA OR, WITH A COAX CABLE,
TO A REMOTE ANTENNA.
ACCESS GRANTED INDICATOR
LIGHTS WHEN ANY ACCESS
RELAY IS ENERGIZED.
RADIO INDICATOR
LIGHTS WHEN A RADIO
SIGNAL ON THE RECEIVER'S
FREQUENCY IS DETECTED.
POUND (#) KEY
PRESS # THEN 1, 2, OR 3 FOR UTILITY FUNCTIONS:
#-1 THEN 1-6 DISPLAYS MGT SUPERVISORY STATUS FOR OBSTACLE TRANSMITTERS 1-6.
#-2 DISPLAYS NUMBER OF PROGRAMMED TRANSMITTERS.
#-3 DISPLAYS NUMBER OF PROGRAMMED TRANSMITTER ID BLOCKS.
ANTENNA INSTALLATION
LOCAL WHIP ANTENNA
REMOTE WHIP ANTENNA
ATTACH THE LOCAL
MOUNT THE F-81 CONNECTOR
WHIP ANTENNA
ON THE SURFACE USING
DIRECTLY TO
THE LOCKWASHER AND NUT
THE RECEIVER
CONNECT TO THE RECEIVER
WITH THE COAX CABLE AND
SCREW THE WHIP ANTENNA
TO THE F-81 CONNECTOR
F-81
CONNECTOR
COAX TO
RECEIVER
MOUNTING
SCREWS
CASE
SCREWS
F-81 CONNECTOR
NUT AND
LOCKWASHER
POWER INDICATOR
LIGHTS WHEN AC OR DC POWER
IS APPLIED TO THE UNIT.
SUSPENDED INDICATOR
LIGHTS WHEN A SIGNAL IS RECEIVED
FROM A TRANSMITTER THAT HAS BEEN
SUSPENDED FROM USE, AND WHEN
SUSPENDING A TRANSMITTER.
PROGRAM MODE INDICATOR
LIGHTS WHEN THE UNIT IS
IN PROGRAM MODE.
REMOTE FIXED ANTENNA
USE THE OPTIONAL EXA-1000
OR EXA-2000 ANTENNA MOUNTED
AS HIGH AS POSSIBLE FOR
THE BEST RADIO RANGE
CONNECT TO THE
RECEIVER WITH AN
RG-59 COAX CABLE
ATTACH WHIP
ANTENNA TO
THIS SIDE
EXA-1000
ANTENNA
EXA-2000
DIRECTIONAL
ANTENNA
