Fenix ECOSUN S+ 06 Instructions For Use And Installation page 6

Typ
ECOSUN S+ 06
ECOSUN S+ 08
ECOSUN S+ 09
ECOSUN S+ 12
ECOSUN S+ 18
ECOSUN S+ 24
ECOSUN S+ 30
ECOSUN S+ 36

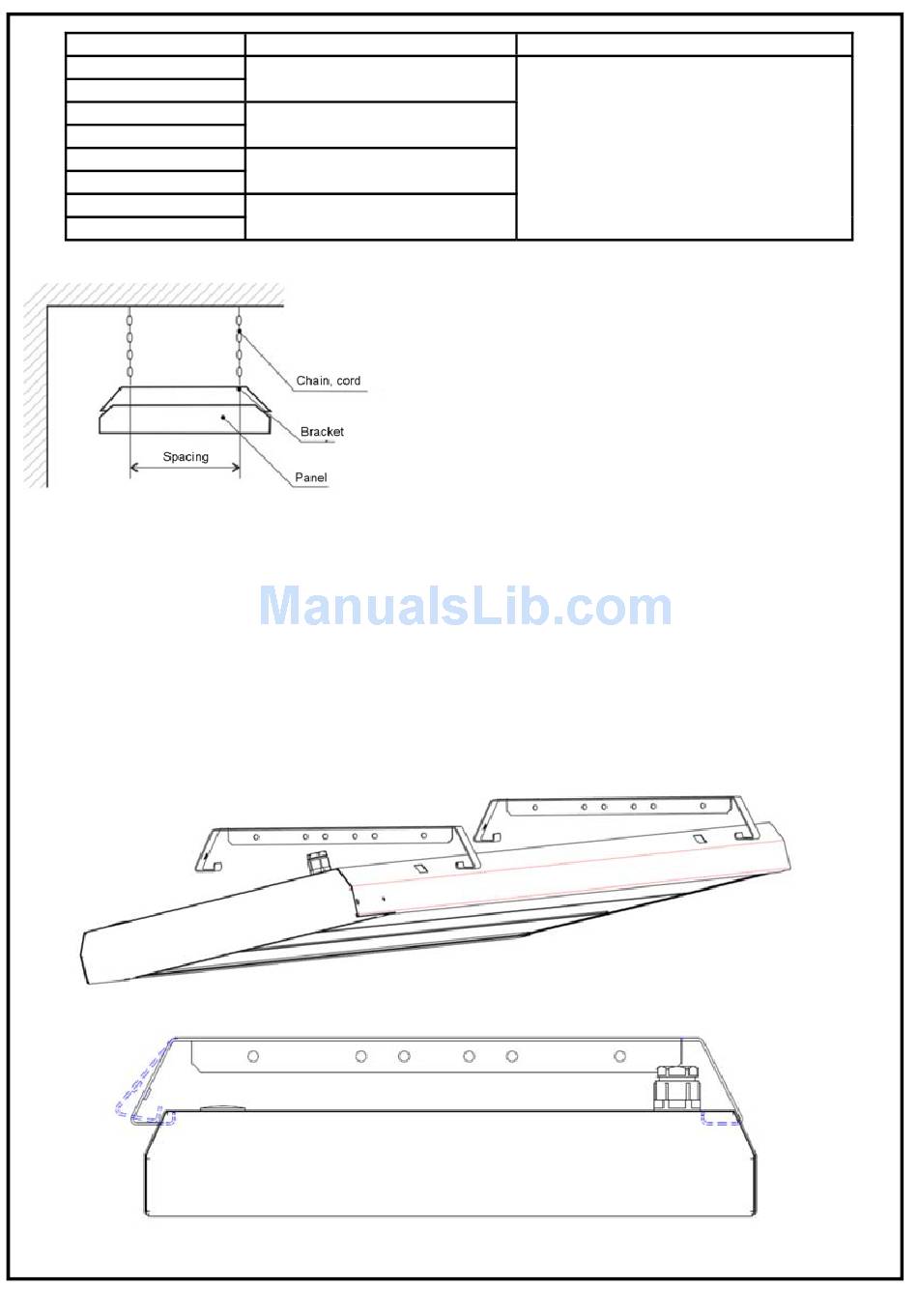

Installation using a fixing bracket
•
Attach the mounting frame so that the opening for the positioning screw is accessible. Slide one side of the panel onto the holder.
•
Slide the panel onto the other part of the holder and secure it with a screw.
Spacing
100 x 300
40 x 1000
100 x 1000
200 x 1000
Spacing of grips at the back side of the panel:
After insertion, it is advisable to secure it in position with the use of
positioning screws to prevent it from sliding out.
•
Clearance distances from flammable objects:
from the radiant surface (temperature up to 380°C): 100 cm
from the top edge at the distance of the mounting brackets
from other parts of the panel: 25 cm
•
Lowest height above the floor: 350 cm (recommended value)
•
The mutual distance between panels is usually greater than the
height of their installation above the floor
•
The panel must not be placed directly under an electric socket.
Note
−
diameter of the opening in the brackets: 6 mm
−
when handling the panel, it is not advisable to
touch its radiant surface with dirty hands
