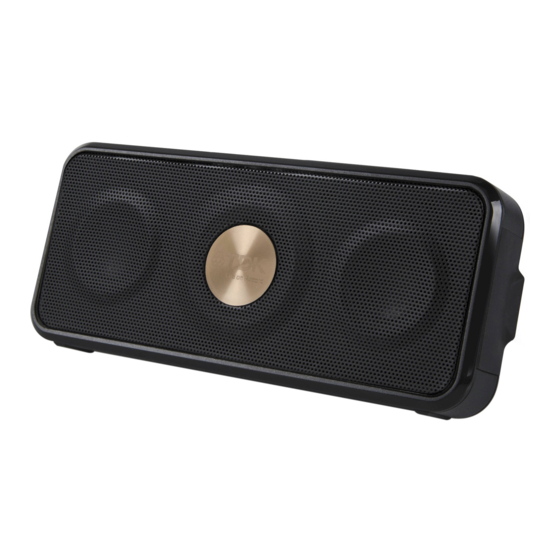

TDK A26 Replacement Instructions

Download this manual

Caution: Disconnect the AC power adapter and place the power switch in the OFF

position before beginning the replacement.

1. Lift the two rubber pads at both ends of the bottom of the A26. Set these aside

for reinstallation after the battery replacement.

2. Remove the two screws on the bottom right end of the unit base using a T-10

TORX driver.

3. Using a flat bladed screwdriver, slide the base cover all the way to the left. It

should then be possible to lift the base cover away from the A26 body.

A26 Battery Replacement Instructions

Page 1 Caution: Disconnect the AC power adapter and place the power switch in the OFF position before beginning the replacement. 1. Lift the two rubber pads at both ends of the bottom of the A26. Set these aside for reinstallation after the battery replacement.
Page 2 4. With the cover removed, lift the battery from its position. 5. Unplug the battery and replace with a battery pack from TDK Life on Record. A screwdriver can be used to carefully press the connector of the new battery into the socket.
Page 3 Do not incinerate. Following the replacement, the new battery should be fully charged. Place the battery switch under the right flap of the A26 to the OFF position. Connect the micro USB charging cable to a power source. Allow to charge until the red charging LED on the top of the unit goes OFF.
