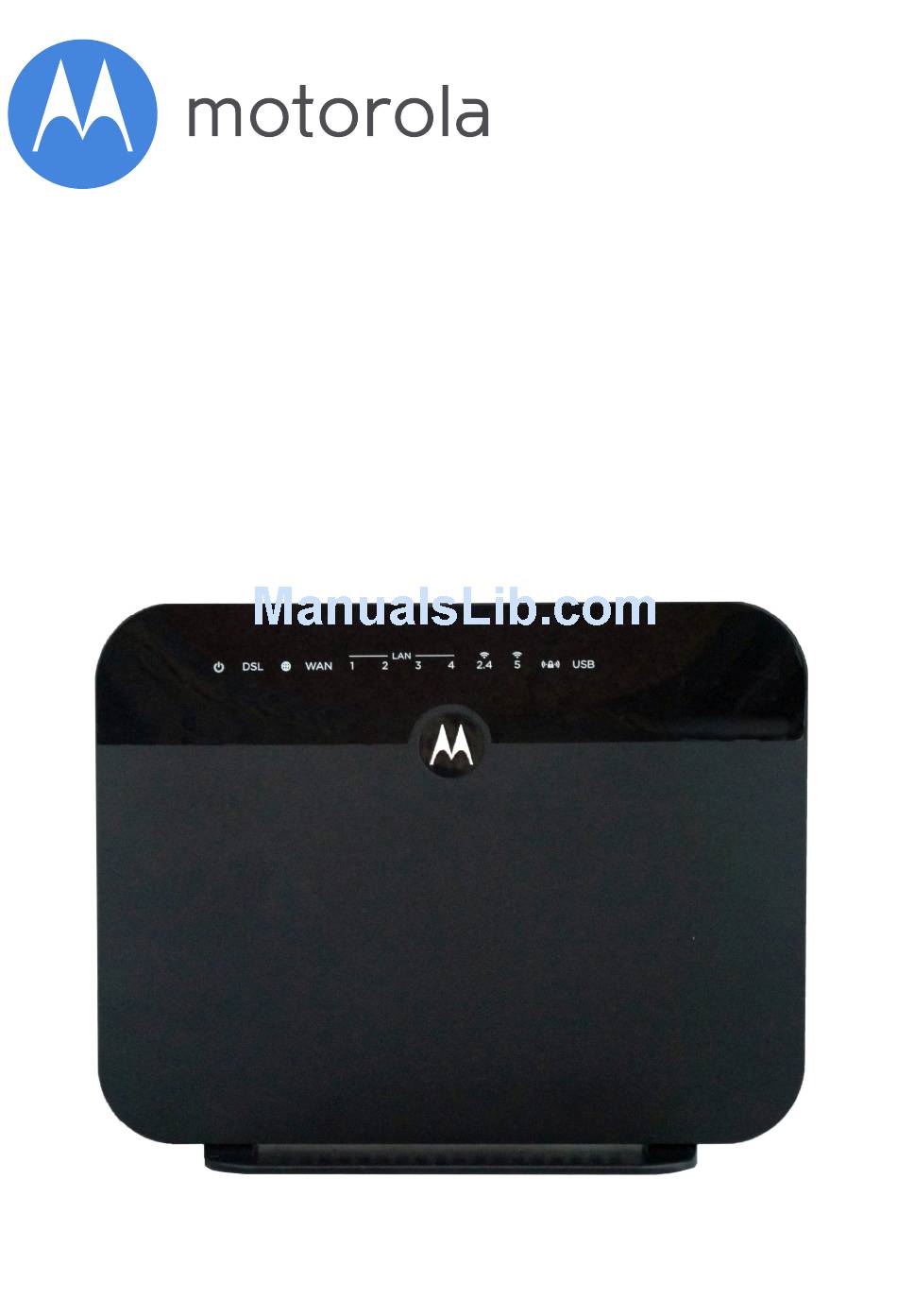

- Page 1 VDSL2/ADSL2+ Modem plus AC1600 Router Quick Start Model MD1600...
- Page 2 Packaged with your MD1600 router Power Cube Ethernet Cable (varies by country) Phone Cord DSL Filter/Splitter Para una Guía de Inicio Rápido en español, por favor vaya a www.motorolanetwork.com/MD1600IR...
-
Page 3: Before You Begin
1. First connect the supplied power cube between the MD1600’s power jack and a working electrical outlet. The MD1600 should power up and the power light on the front of the unit should turn on amber as the modem initializes. - Page 4 (recommended), plug the supplied Ethernet cable into any one of the LAN jacks on the back of the MD1600. Plug the other end of the cable into the LAN or ETHERNET port of your computer. If you need to access the configuration manager using WiFi, go into the WiFi setup section of your smartphone or other WiFi device.
-
Page 5: Run The Setup Wizard
Run the Setup Wizard When you log into the MD1600 for the first time, the Configure my Internet Connection screen appears. If you want the MD1600 to detect your DSL connection, select your Country and Internet service provider from the drop-down list and click Next. - Page 6 Connection page, click Save. Now try going to a website to check that your connection is working. If it is, Congratulations! You may start using your MD1600, or you can learn how to connect additional devices to the MD1600 as described in the Connect Your Devices section below.
-
Page 7: Connecting Your Devices
To prevent this, you need to connect a DSL filter to all devices EXCEPT your DSL modem. If you want to use the same phone jack for your MD1600 and a phone, plug the included DSL filter/splitter’s LINE jack into the phone jack in the wall, plug the supplied phone cord between the MD1600’s DSL jack and the filter’s MODEM jack, and plug... -
Page 8: Configuration Manager
The MD1600 ships with one DSL filter/splitter, if you need more DSL filters, these are typically available in most major electronics stores or online. Configuration Manager After configuring the MD1600, most users should not need to access the Configuration Manager. Here are some reasons for using it: •... - Page 9 Note that wireless performance depends on a number of factors. Please keep these things in mind: • Where possible, put the MD1600 in a central place so that it’s not too far away from your other wireless devices. • Don’t put the MD1600 close to interference-generating wireless devices such as Bluetooth headsets and stereos, microwave ovens, 2.4 GHz cordless phones and base stations, and WiFi...
-
Page 10: Front Panel
The DSL line is training Blinking MD1600 is connected to the Internet Data being sent Green Blinking Internet MD1600 is not connected to the Internet Ethernet connection established Green 1 2 3 4 Data being sent Blinking 2.4 GHz WiFi is enabled... -
Page 11: Back Panel
Adapter, or other Ethernet-capable device to any of these 4 LAN ports. In the unlikely event that you are using the MD1600 as a stand- alone router without DSL, plug an Ethernet cable between the MD1600’s WAN jack and the LAN jack of your modem or network. -
Page 12: Troubleshooting Tips
If you have installed a DSL filter/splitter between the MD1600 and the phone jack, remove this filter and connect the MD1600 to your phone jack. If this solves the problem, your DSL filter/splitter may be defective. • Try turning your computer off, then on. This ensures that your computer gets a new IP address. - Page 13 What if I think that wireless devices are interfering with my MD1600 wireless router? • Where possible, put the MD1600 as far away as possible from interfering devices such as WiFi printers, microwave ovens, Bluetooth transmitters and neighbors’ WiFi routers.
-
Page 14: We Like To Help
I’m unable to access the MD1600 when I enter setupmyrouter.net • First check that the MD1600’s Power light is on. If it is not on, the MD1600 is not receiving power. • Check that your Setup Device is connected to the MD1600. If... -
Page 15: Limited Warranty
All guidelines of this and of the computer manufacturer must therefore be followed at all times to ensure the safe use of the equipment. MOTOROLA and MTRLC assume no liability for damage caused by any improper use of the DSL router. -
Page 16: Fcc Statement
