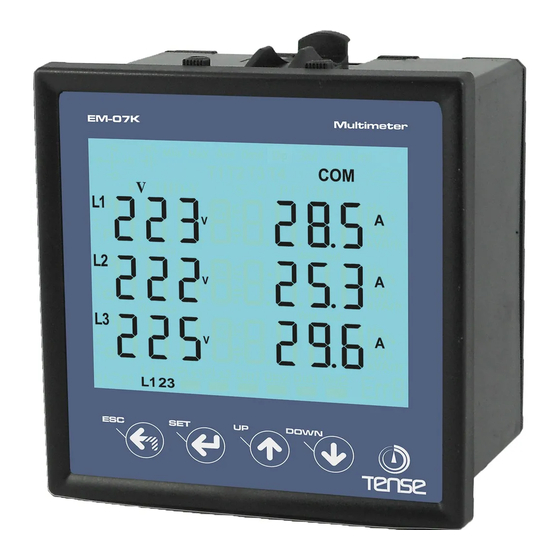

EM-07K
USER MANUAL
RS485 Modbus RTU (1200 - 38400bps)
71.5 x 61.5 Custom Design Glass LCD
3-phase voltage and 3-phase current transformer.
It shows that V1,V2,V3,V12,V23,V31,I1,I2,I3,P1,P2,P3,S1,S2,S3,F1,F2,F3,kWh,ΣkWh
It shows the minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
It shows the maximum, average and demand values of I1,I2,I3,S1,S2,S3,P1,P2,P3
Shows phase sequence
You can delete the demands and active energy records
Menu is password-protected.
Tense Electric Electronic
MADE IN TURKEY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM-07K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tense EM-07K

Summary of Contents for Tense EM-07K

  • Page 1 It shows the minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3 It shows the maximum, average and demand values of I1,I2,I3,S1,S2,S3,P1,P2,P3 Shows phase sequence You can delete the demands and active energy records Menu is password-protected. Tense Electric Electronic MADE IN TURKEY...
  • Page 2 1 - Connection Diagrams: Figure-1: 3P3W connection type: 3 phase current and 3 phase voltage and without neutral. Low voltage. Load 85V-240VAC 50/60Hz. <6VA Figure-1 Figure-2: 3 phase current and 3 phase voltage and with neutral. Low voltage. It is suitable for medium voltage with voltage transformer.
  • Page 3 5 - General: EM-07K Multimeter measures the load on the system and voltage, current, apparent and active power minimum and maximum values, demands related to this load on the system.
  • Page 4 6- Introduction of Home Screen: 1 - It shows phase number belong to measurement values 2 - Showing values are minimum of measurement values 3 - Showing values are maximum of measurement values 4 - Showing values are average of measurement values 5 - Showing values are demand of measurement values 6 - It shows Serial Communications 7 - It shows that type of measurement values...
  • Page 5 8 - Start-up of the Device: Read the warnings before the device is energized. Make sure that the device is connected according to the connection diagram. When the device energized for the first time, the Home Screen is displayed. Enter the current transformer ratio and the voltage transformer ratios, if installed, on the settings menu at first.
  • Page 6 Figure-16 Figure-17 Figure-18 Figure-19 Figure-16: It shows the active power values of each phase. The figure-17 is displayed when you press the Down button. Figure-17: It shows the maximum active power values of each phase. The figure-18 is displayed when you press the Down button.
  • Page 7 10 - To advance in Display Inventory: Home Figure-3 Figure-7 Figure-11 Screen Figure-24 Figure-20 Figure-16 Figure-28 The Home screen is displayed, when the device is energized. When you press the up button to see the other data on the display, the next data is displayed (Figure-3). The figure-7 is displayed when you press the Up button.
  • Page 8 11.1 - Setup Settings: Figure-31 Figure-35 Figure-36 Figure-37 Figure-40 Figure-39 Figure-38 Press Menu button and enter password (Default Password =0000) to enter program list. The figure-31 is displayed when you enter password and press the Menu button. You enter setup menu when you press Menu button.
  • Page 9 11.2 - General Settings: Figure-41 Figure-42 Figure-32 Press Menu button and enter password to enter program list. The figure-31(Setup) is displayed when you enter password and press the Menu button. The figure-31(General SET) is displayed when you press the up button.
  • Page 10 11.4- About: Figure-46 Figure-34 Figure-45 Press Menu button and enter password to enter program list. The figure-31(Setup) is displayed when you enter password and press the Menu button. The figure-32(General SET) is displayed when you press the up button. The figure-33(RS485 SET) is displayed when you press the up button. The figure-34(About) is displayed when you press the up button.
  • Page 11 14- Password Enable/Disable: Step 3 Step 1 Step 2 Step 1: Press Menu button and enter password to enter program list. The SETUP is displayed when you enter password and press the Menu button.Press “Up”button until you see the GENERAL SET Step 2: Pr.7 is displayed when you press the “SET”...
  • Page 12 Connection Type Plug-in Connection Merkez Mah. Akalar Sok. No:39A Cable Diameter 1.5mm² GAZIOSMANPASA / ISTANBUL / TURKEY Installation Front panel mounted Tel: 0212 578 04 38 - 48 Fax: 0212 578 04 36 Web: www.tense.com.tr Mail: info@tense.com.tr Operating Altitude <2000metre -11-...
